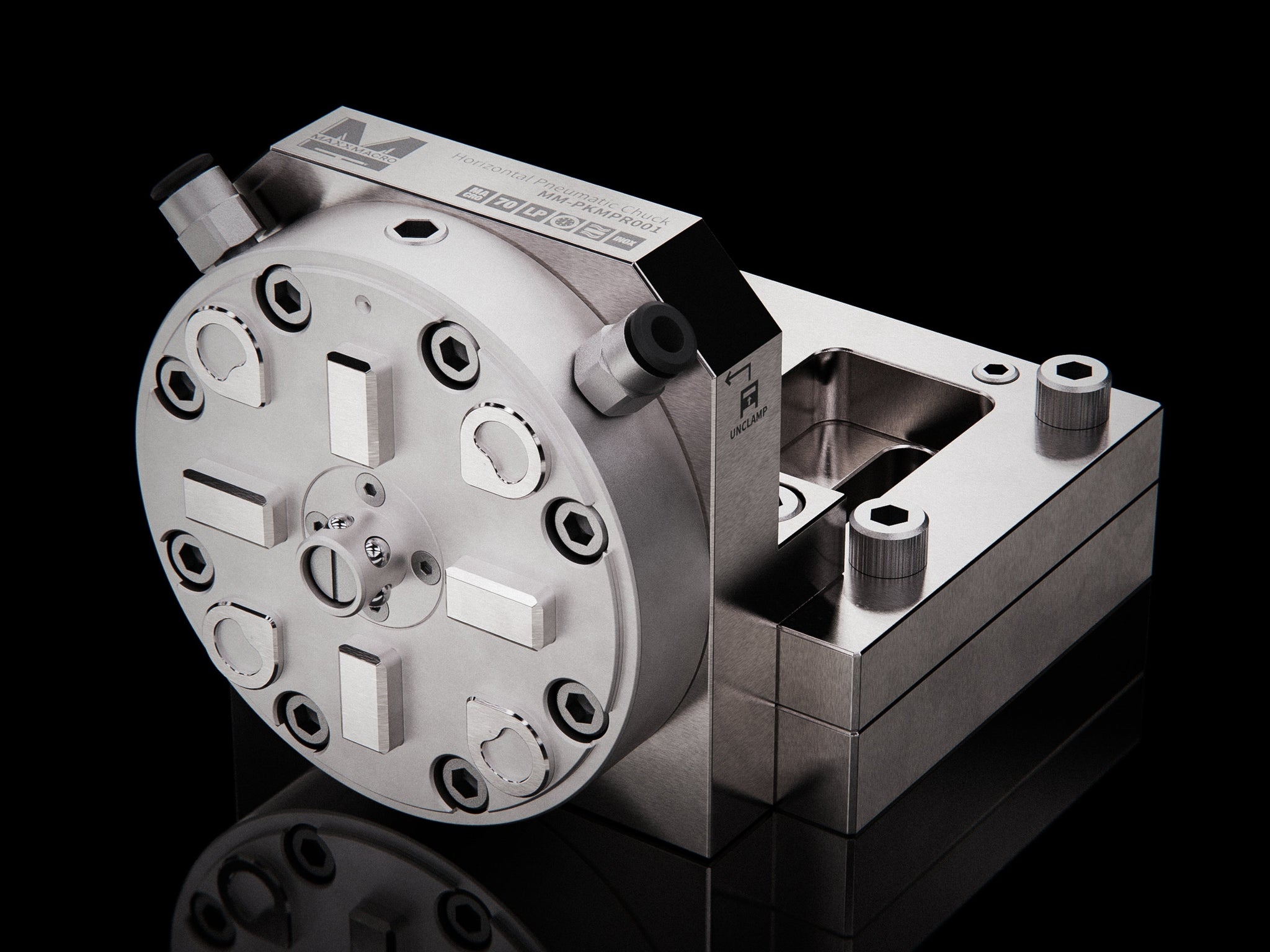

MaxxMacro (System 3R) 70 Pneumatic Low Profile Chuck with Horizontal RSM Adapter 0

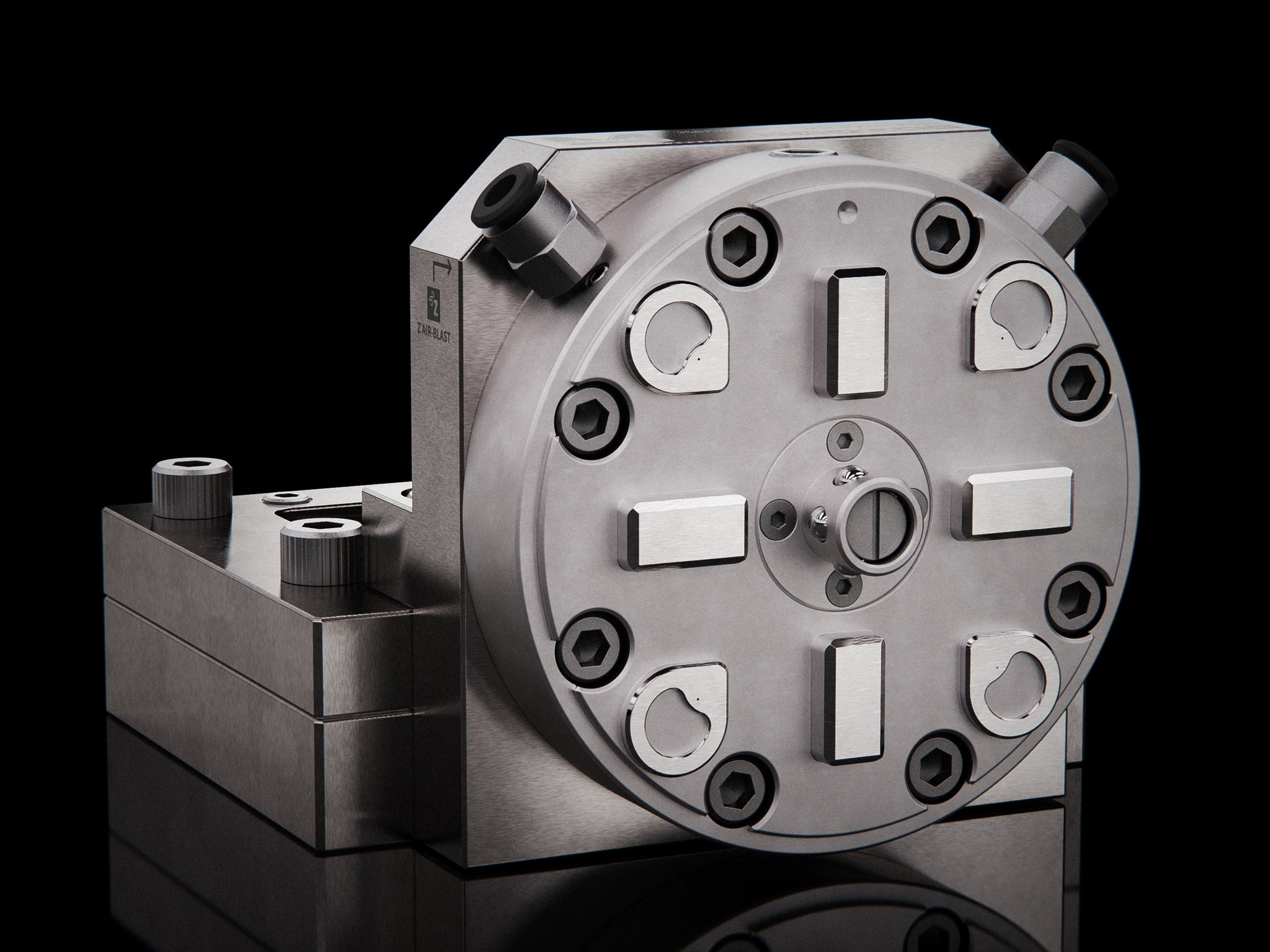

MaxxMacro (System 3R) 70 Pneumatic Low Profile Chuck with Horizontal RSM Adapter 1

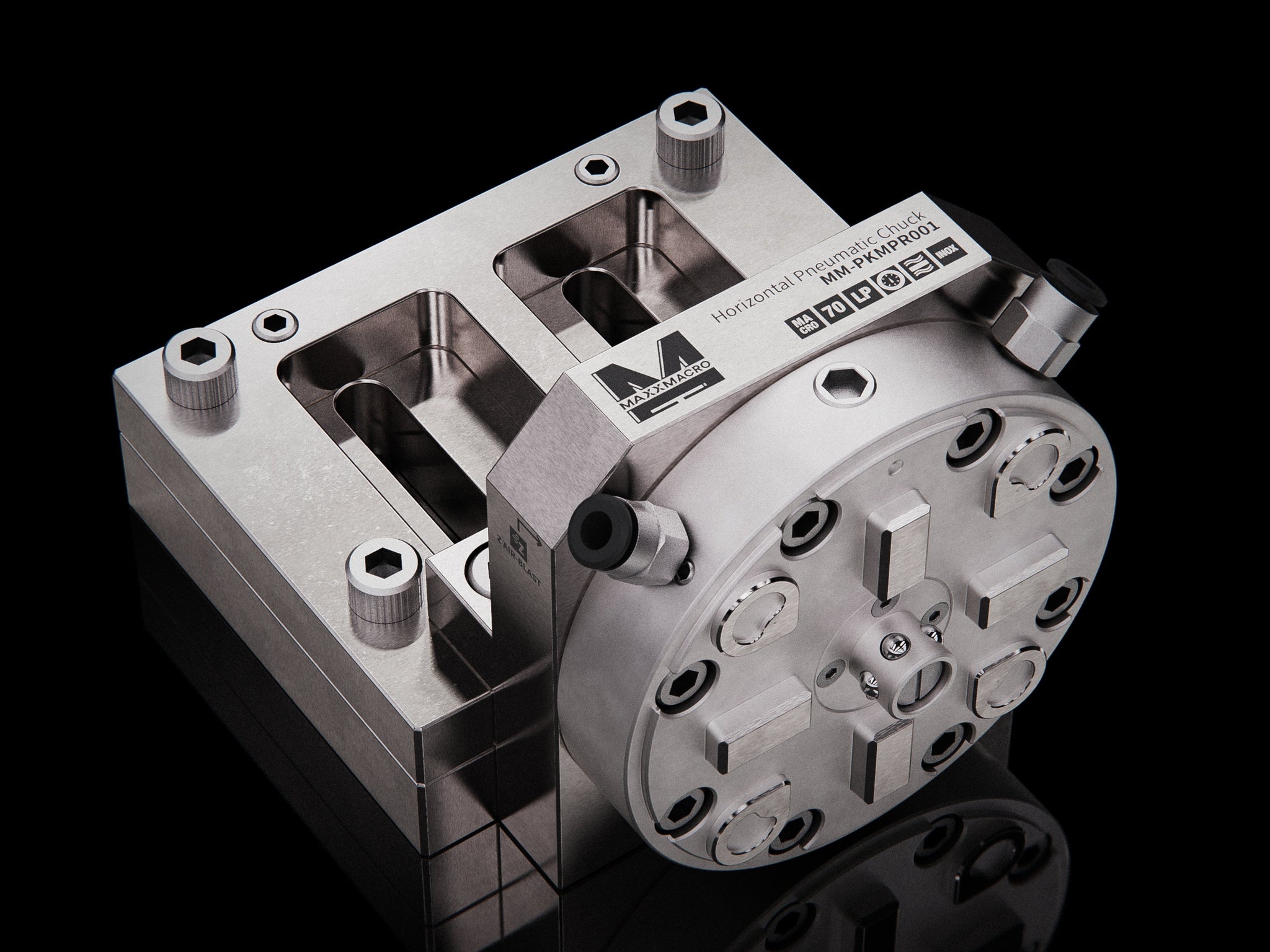

MaxxMacro (System 3R) 70 Pneumatic Low Profile Chuck with Horizontal RSM Adapter 2

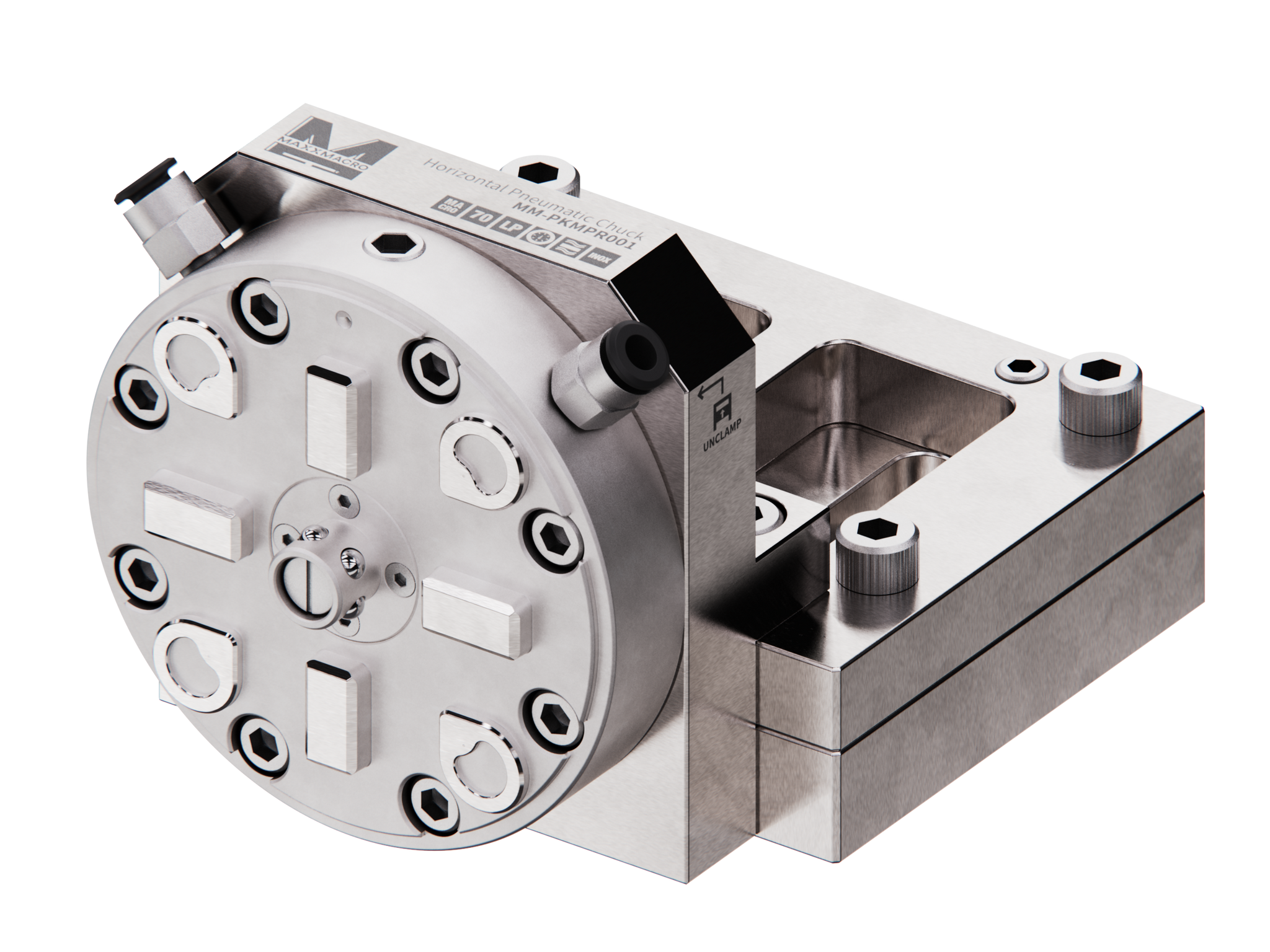

MaxxMacro (System 3R) 70 Pneumatic Low Profile Chuck with Horizontal RSM Adapter 3
MaxxMacro (System 3R) 70 Pneumatic Low Profile Chuck with Horizontal RSM Adapter 5

MaxxMacro 70 Pneumatic Low Profile Chuck with Horizontal RSM Adapter

$3,536.00

Maxx Tooling
MaxxMacro 70 Pneumatic Low Profile Chuck with Horizontal RSM Adapter comes fully assembled and ready to use. This product is 100% cross-compatible ...
SKU: MM-PKMPR001Categories: All MaxxMacro® Products, MaxxMacro, MaxxMacro® Chucks Manual and Pneumatic, MaxxMacro® Chucks Pneumatic, MaxxMacro® Electrode Holders, MaxxMacro® MaxxMagnum® Performance WorkHolding, MaxxMacro® WEDM - Chucks, MaxxMacro® WEDM Wire EDM Tooling, Sinker EDM Tooling, Wire EDM Tooling Tags: 3R-602.81,3R-602.81RS,70,Chuck,Chucking,EDM,Low Profile,MaxxMacro,Milling,Mounting,Pneumatic,Rust Proof,Stainless,System 3R,System 3R Chuck,WEDM,
Description

MaxxMacro 70 Pneumatic Low Profile Chuck with Horizontal RSM Adapter comes fully assembled and ready to use. This product is 100% cross-compatible with the System 3R Macro OEM system. For mounting on a Wire EDM machine table, with alignment features to adjust chuck position.

MaxxDesign Exclusive Features:

  • Horizontal Adjustable Mounting Plate
  • Z Pads with Air-Clean Function

Product Specifics

  • Clamping Type: Pneumatic (6 bar)
  • Clamping Force: 6 kN
  • Angle: 90
  • Drawbar/Spigot required: MM-DRWBR203
  • Chuck Included: MM-PKLPR000
  • Repair/Maintenance Kit: MM-RKPCR002, MM-RKPCR003

Product Details

  Product Name MaxxMacro 70 Pneumatic Low Profile Chuck with Horizontal RSM Adapter
  SKU [Old SKU] MM-PKMPR001
  System MaxxMacro  (System 3R 100% Cross-Compatible)
  Cross-Compatible [3R-602.81, 3R-602.81RS]
  System Repeatability 0.002mm
  Weight 5.45 kg | 12.02 lb
