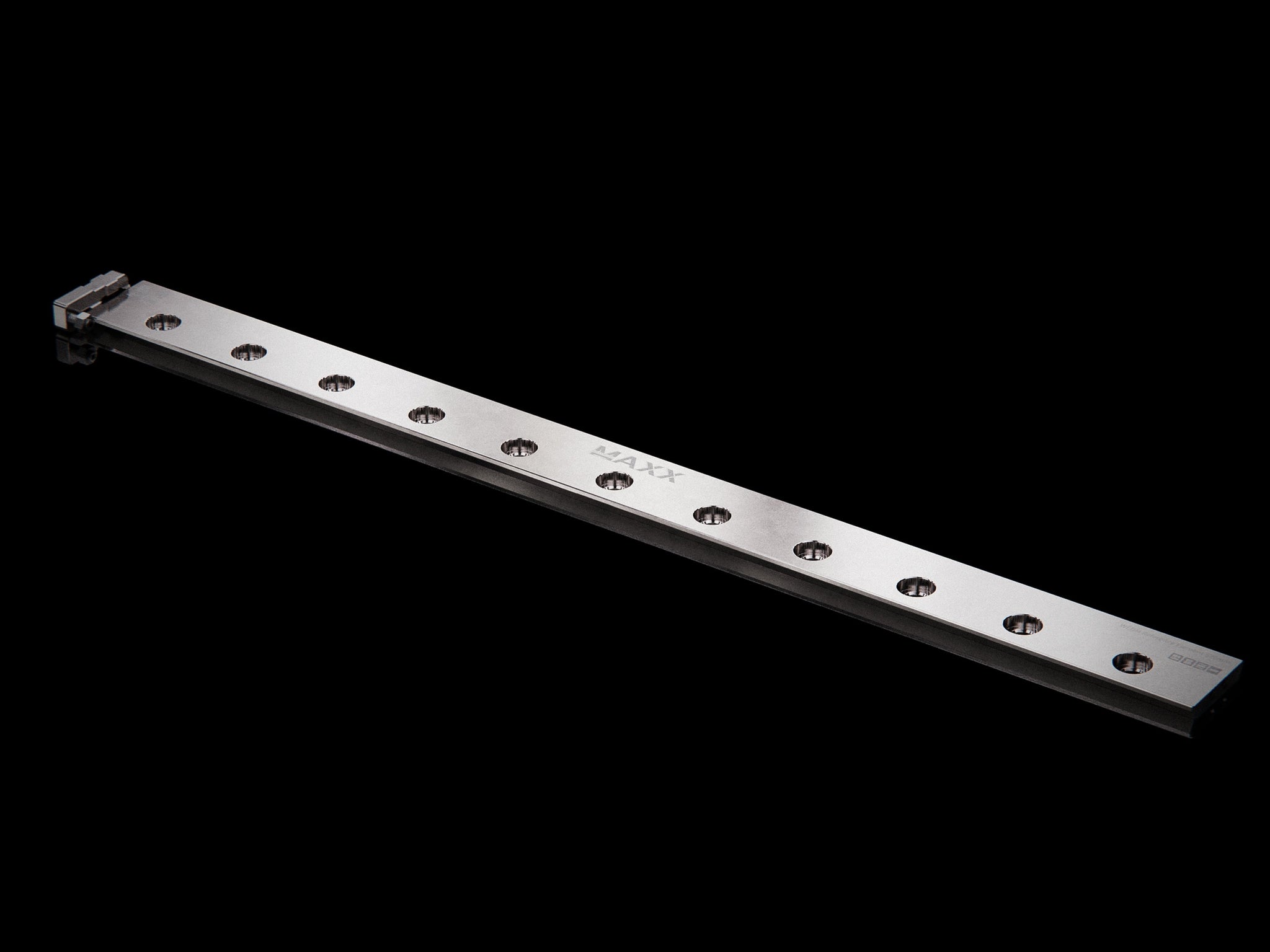

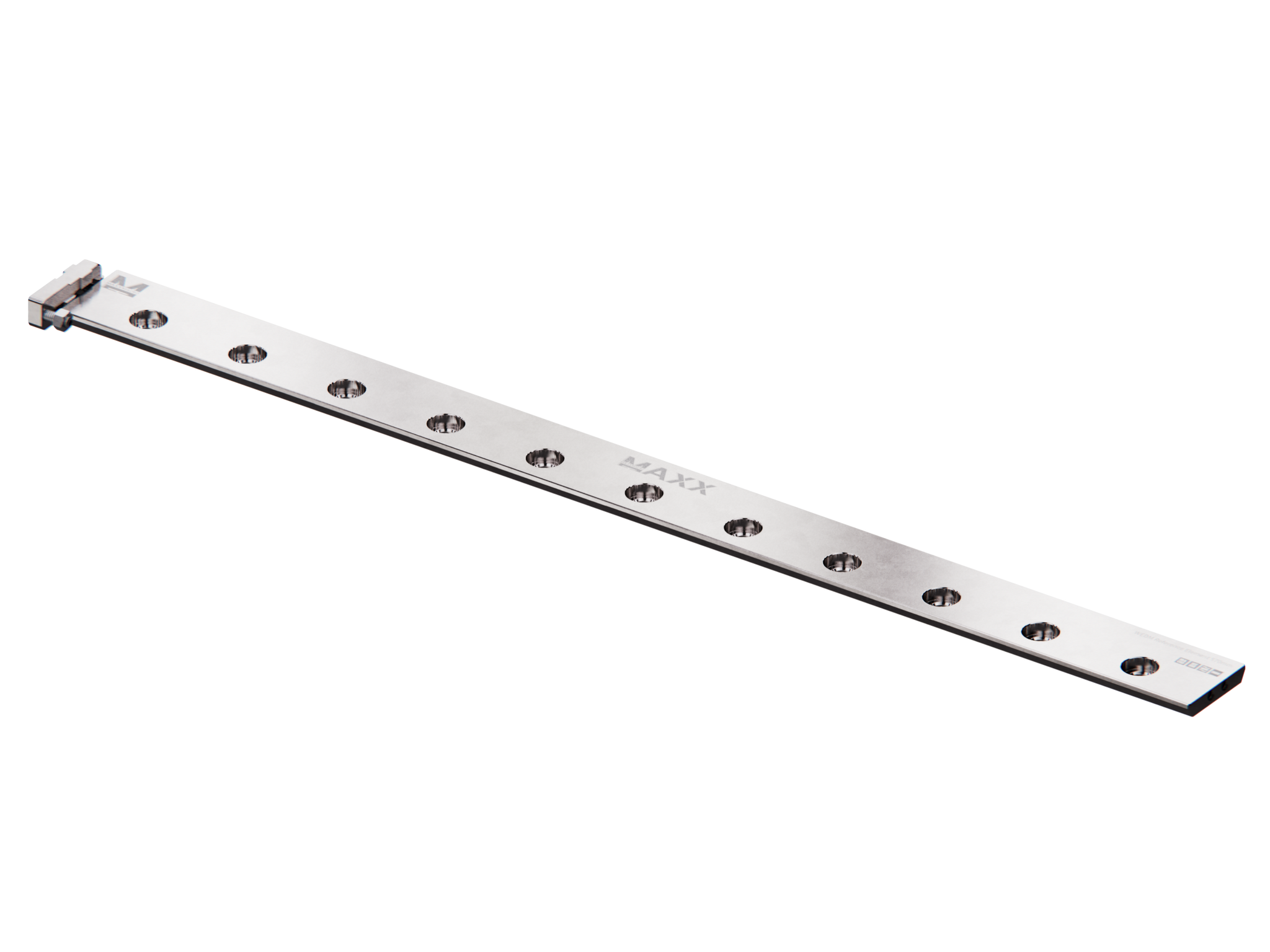

MaxxMacro 2006J1 MXRuler WEDM Reference element 545mm

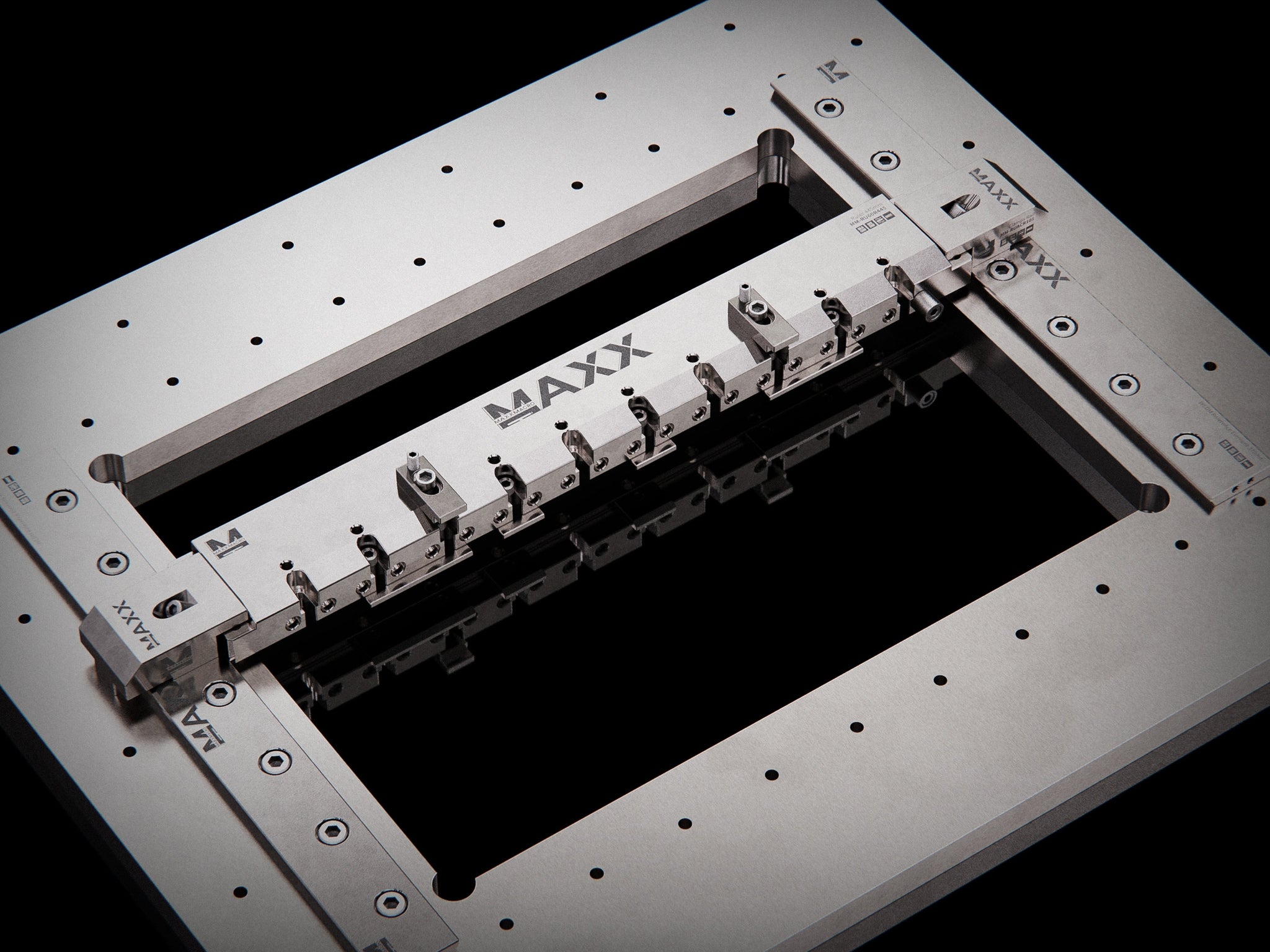

MaxxMacro MXRuler WEDM Reference elements have been developed to incorporate a dovetail-shaped reference element for machines with a parallel or U-shaped machine table, as well as for machines with a frame table. This reference element is compatible with the MXRuler System as well as the full MaxxMacro WEDM system, which includes a wide range of accessories for clamping various workpieces, positioning them on the machine zero line, without the risk of collision.

The length, hole spacing and hole edge spacing of the hardened reference elements are matched to the machine in question. Due to different shape and size of supporting tables made available, these reference rails are most often adopted to brand and model. This product is 100% cross-compatible with the System 3R Macro OEM system.

MaxxDesign Exclusive Features:

• Adjustable End-Stop: included to enable repeatability.

• High quality materials: Full rust proof design.
• MXRuler's Reference Elements are available in various lengths to match different machines. All other sizes are available to quote.

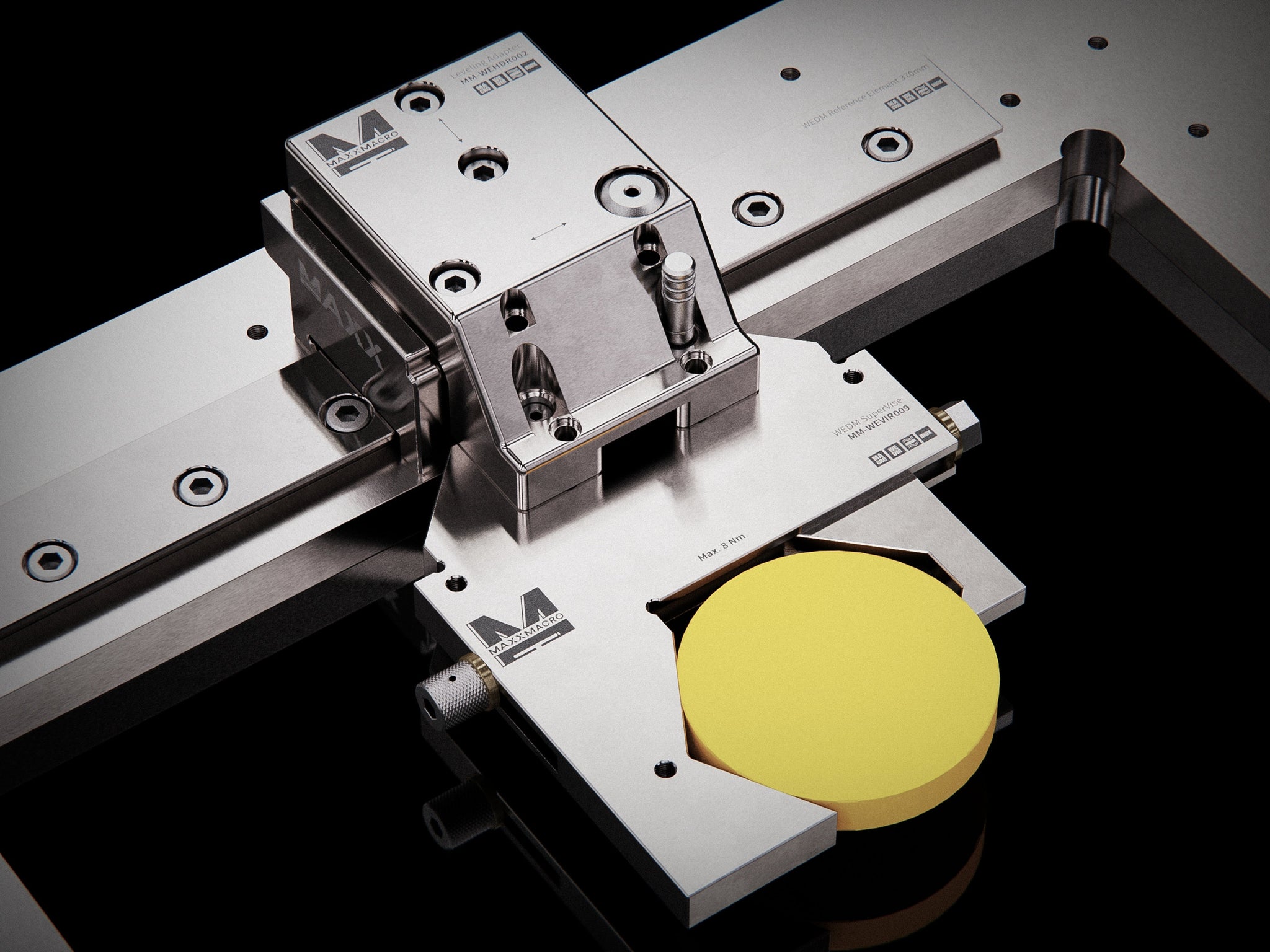

• The dovetail reference elements serve to mount not only the ruler. Check out the full range of accessories here: MaxxMacro WEDM Accessories and Vises

• Check out our MaxxMacro MXRuler Basic Set Up video: MaxxMacro Wire EDM Basic Setup Ruler Vise and WEDM Kit

Included Items

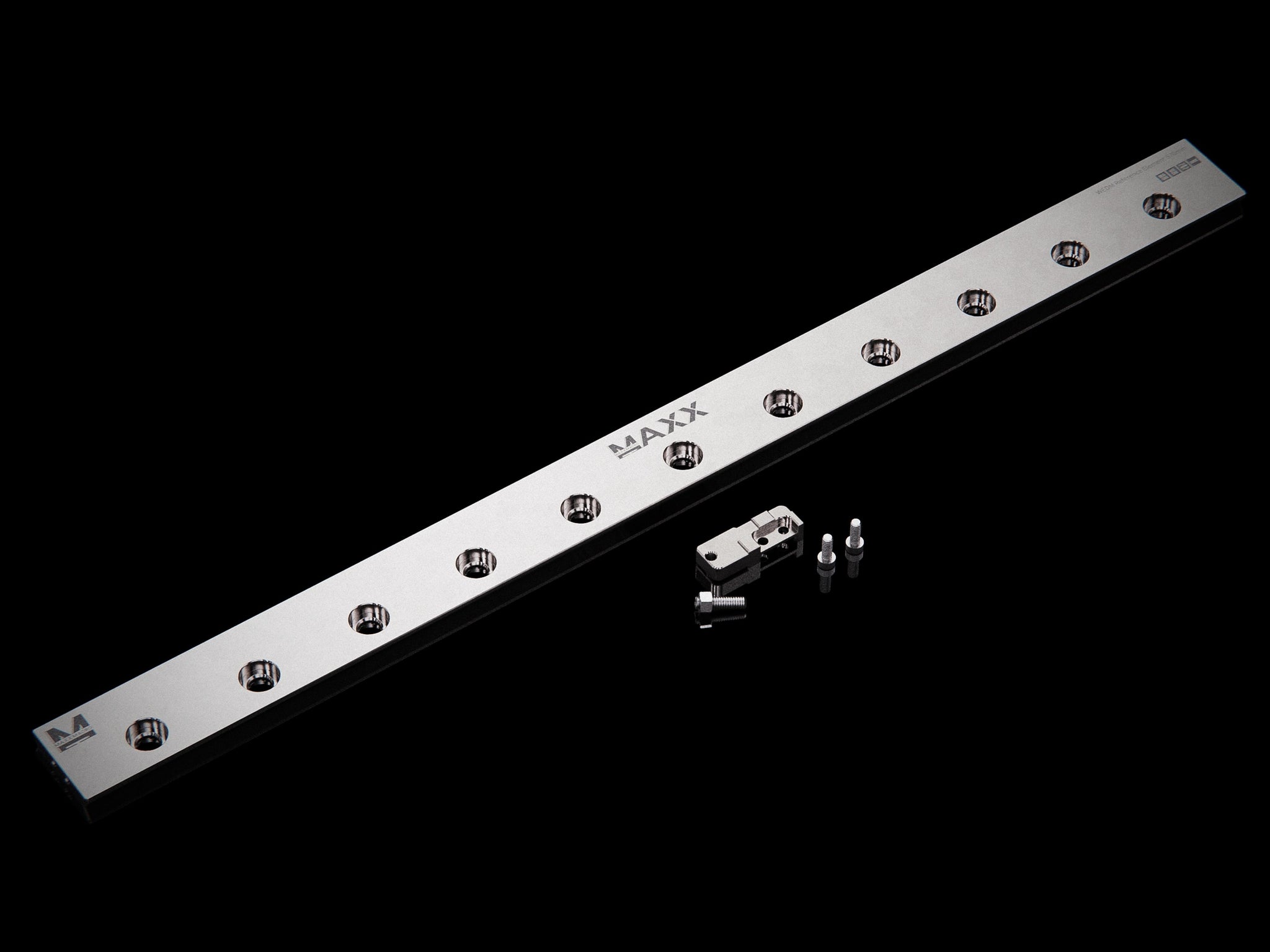

The MaxxMacro MXRuler Reference element includes the following items:

• x1 MaxxMacro MXRuler Reference element (1pc)
• x1 Adjustable End-Stop

Machine Compatibility

Fits the following machines and more. Some machine applications may not be referenced below. Please contact us if you have any doubts.

Horizontal setup:

• AgieCharmilles CUT 400 (yr 2012)

• AgieCharmilles CUT 400 Sp

• AgieCharmilles CUT P 800

• AgieCharmilles CUT P 800 L Flushing

• Charmilles RoboFil 640

• Makino U6 H.E.A.T. (Square)

• Makino U6 (U-shape)

• Makino U6i (Square)

• Makino U53j

• Makino U53Tj

• Makino UP53j

• Makino UPV-5

• Makino W53FB
• Makino EU64

• Makino U53

• Makino U53i

• Makino WB53B


Vertical setup:

• AgieCharmilles CUT 300 mS / Sp

• AgieCharmilles CUT P 550

• AgieCharmilles CUT P 1250

• Charmilles RoboFil 430

• Charmilles RoboFil 440

• Makino U53j

• Makino U53Tj

• Makino UP53j

• Makino UPV-5

• Makino W53FB

• Makino U53

• Makino U53i

• Makino WB53B

• Mitsubishi FA20

• Mitsubishi FA20SM

• Mitsubishi FX20

• Mitsubishi PA20

• Mitsubishi QA20

• Sodick AL400G

• Sodick AL400P

• Sodick ALC400G

• Sodick ALN400G

• Sodick ALN400Q

• Sodick VL400Q

• Sodick AG400L

• Sodick SL400G

• Sodick SL400Q

• Sodick SLC400G
