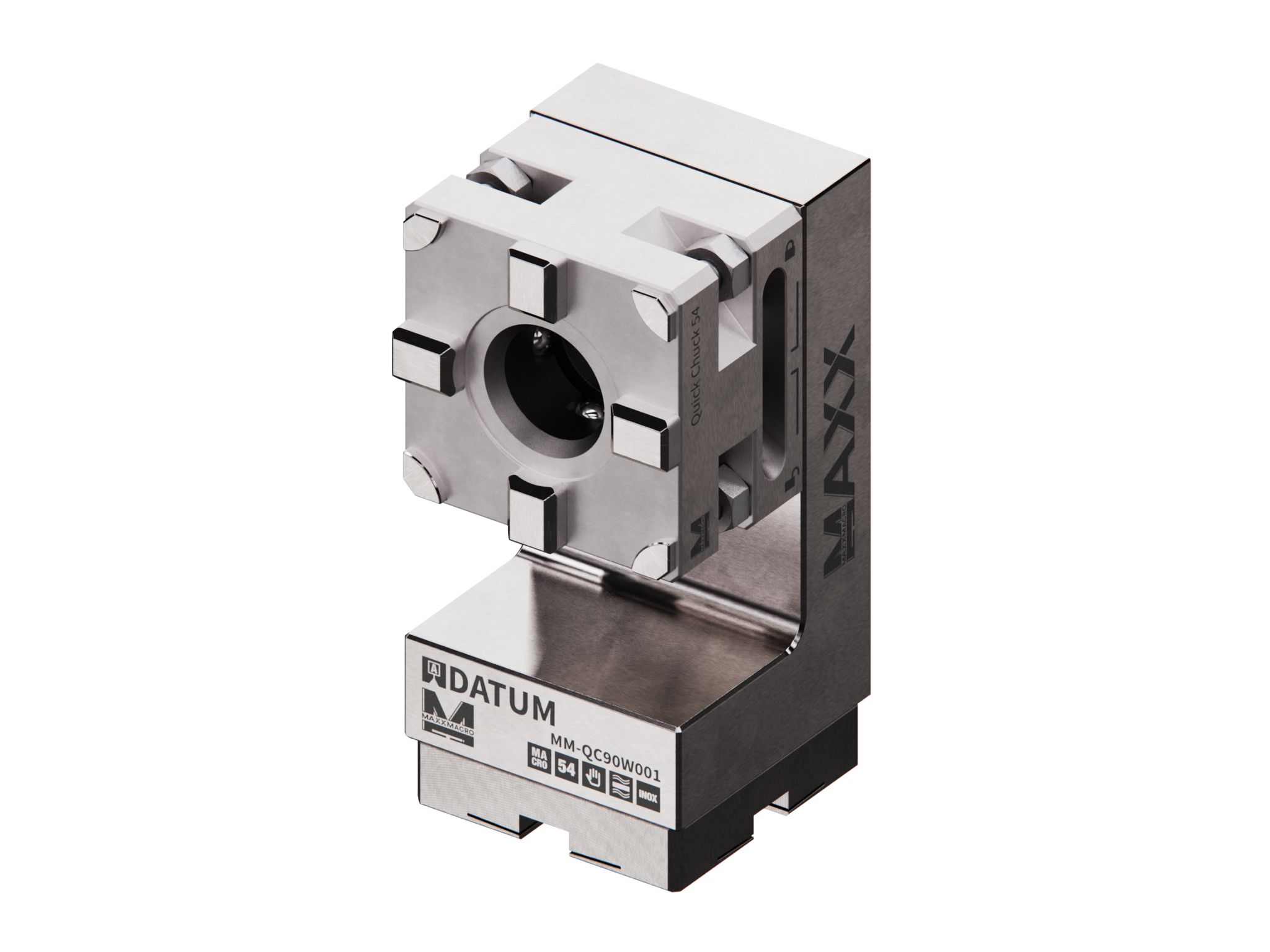

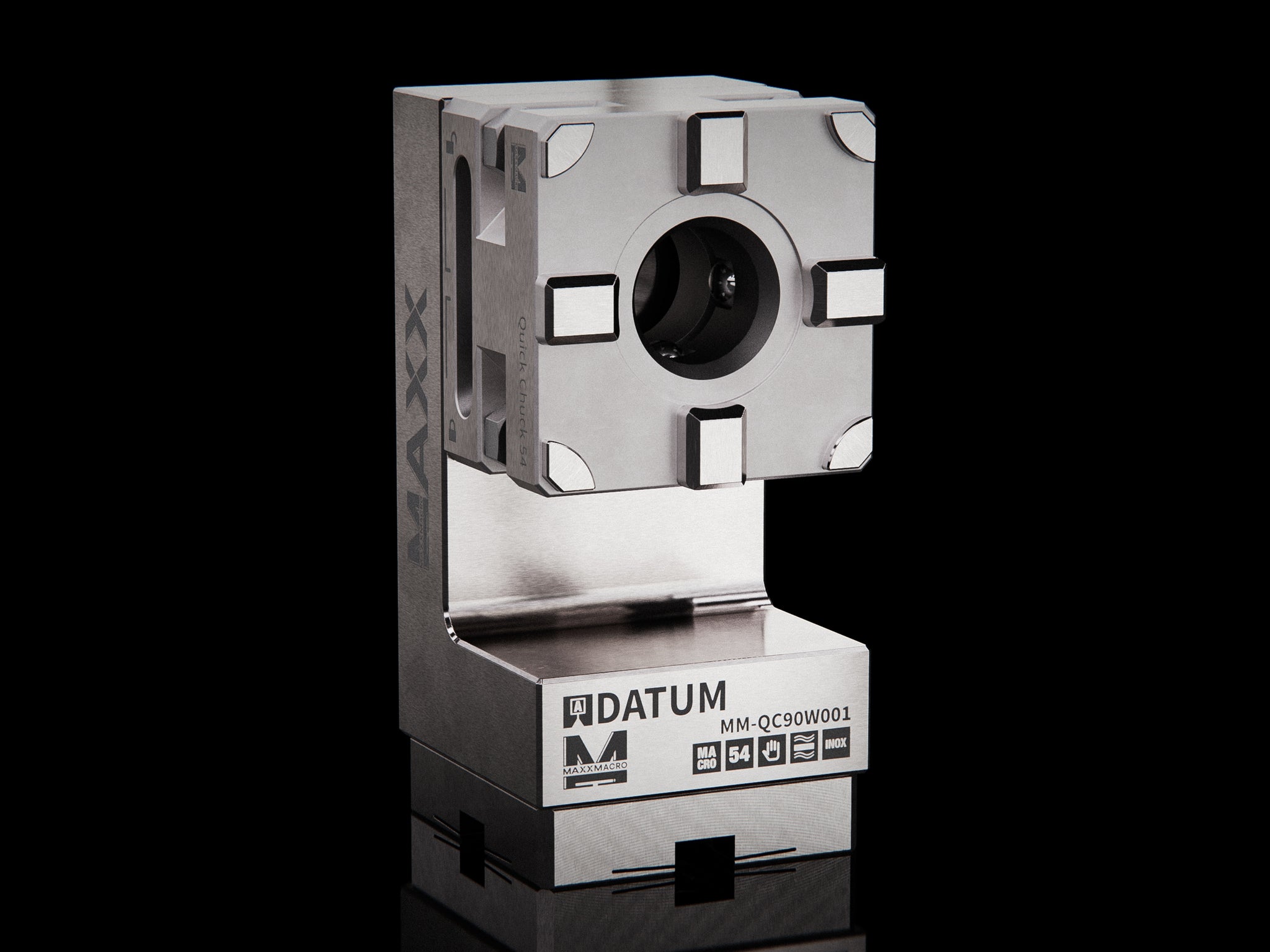

MaxxMacro 54 Manual QuickChuck Angle Adapter 90 Degree Rust Proof
$1,040.00
MaxxMacro 54 Manual QuickChuck Angle Adapter 90 Degree comes fully assembled and ready to use. This product is 100% cross-compatible with the Syste...
Description
MaxxMacro 54 Manual QuickChuck Angle Adapter 90 Degree comes fully assembled and ready to use. This product is 100% cross-compatible with the System 3R Macro OEM system. For easy transition from vertical to horizontal.
MaxxDesign Exclusive Features:
- Includes a bar actuated MaxxMacro 54 QuickChuck
- Positional accuracy to data. 004mm
Product Information:
MaxxMacro 54 Manual QuickChuck with 90° Adapter for horizontal mounting of Macro holders. Allows user to quickly go from vertical to horizontal position while maintaining location and accuracy.
Product Specifics
- Clamping Type: QuickChuck
- Clamping Force: 4 kN
- Angle: 90
- Drawbar/Spigot required: MM-DRWBR101
- Chuck Included: MM-QC54R000
- Reference Element Included: MM-PA54W006
- Included Items: MX-ACMTX001
- Repair/Maintenance Kit: MM-RKQCX001
Product Details
| Product Name | MaxxMacro 54 Manual QuickChuck Angle Adapter 90 Degree Rust Proof |
| SKU [Old SKU] | MM-QC90W001 [MX-MIN90] |
| System | MaxxMacro (System 3R 100% Cross-Compatible) |
| Cross-Compatible | [3R-602.27-1, 3R-600.24-S, 3R-A19724, 3R-A21944, 3R-652.9] |
| System Repeatability | 0.002mm |
| Weight | 2.01 kg | 4.43 lb |
