MaxxMacro 54 Manual Chuck Horizontal Extension 12"
$1,966.00
MaxxMacro 54 Aluminum Manual Chuck Horizontal Extension 12" comes fully assembled and ready to use. This product is 100% cross-compatible with the ...
Description

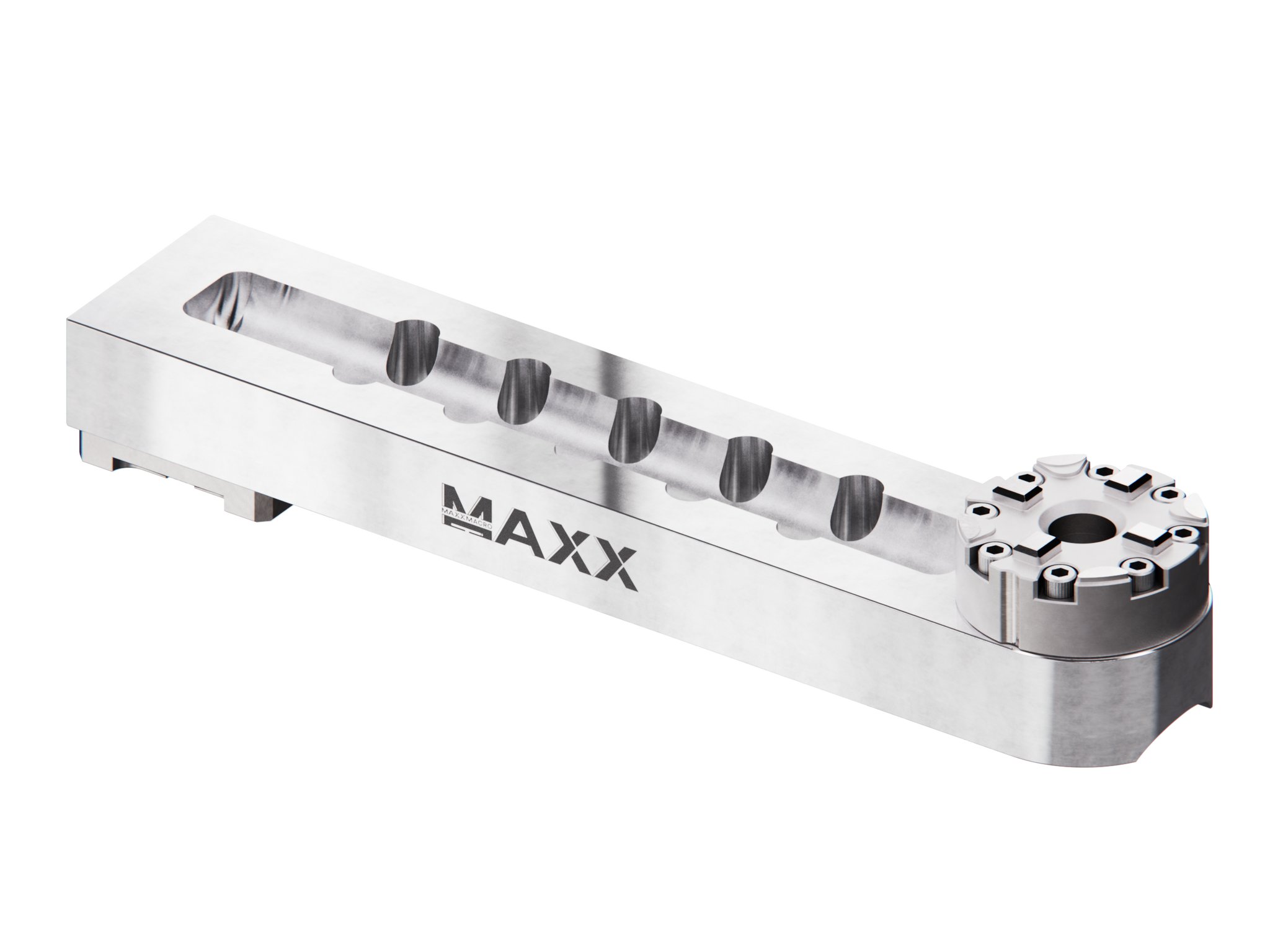

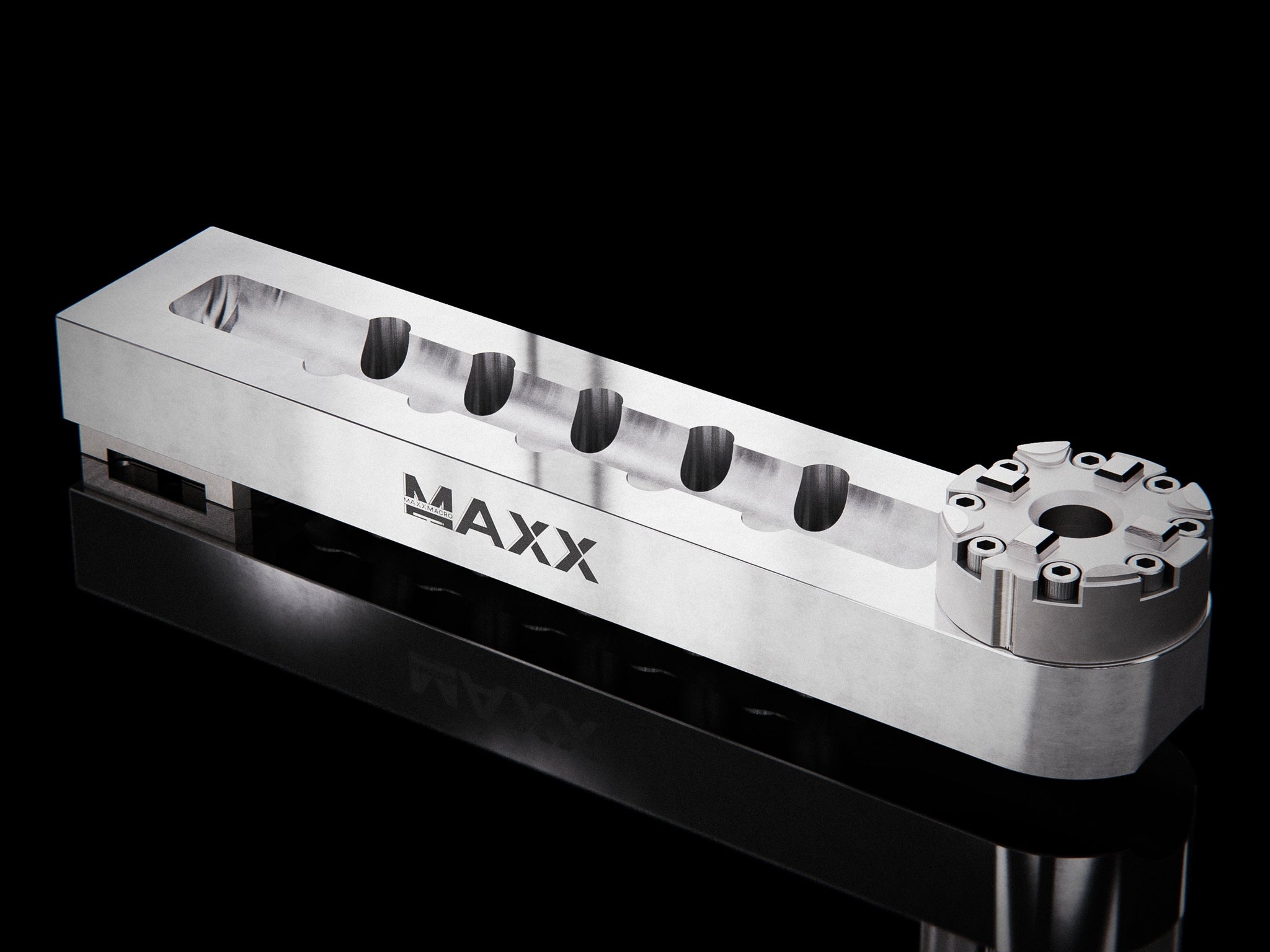

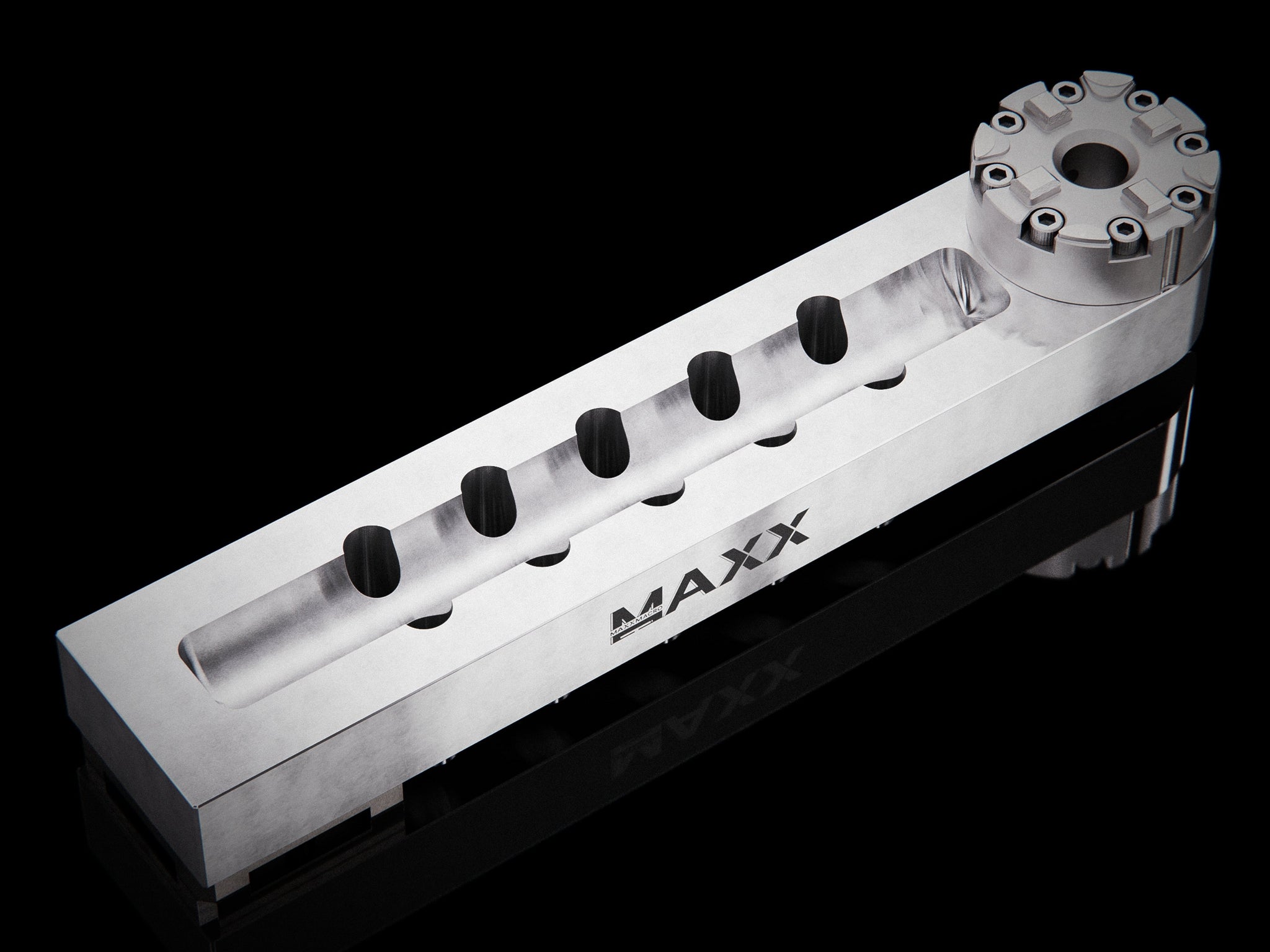

MaxxMacro 54 Aluminum Manual Chuck Horizontal Extension 12" comes fully assembled and ready to use. This product is 100% cross-compatible with the System 3R Macro OEM system. Horizontal extension with manual chuck.
MaxxDesign Exclusive Features:
- High quality materials: Chuck and Pallet are 440C 57-60HRC rust proof design.
- Extension: Aluminum 12" Center to Center
Product Information:
Note due to the limitations of aluminum it is recommended the user master the extension and adjust provided data once the MaxxMacro Horizontal Chuck Extension is installed on your equipment.
Product Specifics
- Clamping Type: Manual (6 Nm)
- Clamping Force: 6 kN
- Angle: 90
- Drawbar/Spigot required: MM-DRWBR101
- Chuck Included: MM-MC54R024
- Reference Element Included: MM-PA70W006
- Repair/Maintenance Kit: MM-RKMCW002, MM-MCRPX001
Product Details
| Product Name | MaxxMacro 54 Aluminum Manual Chuck Horizontal Extension 12" |
| SKU [Old SKU] | MM-MCHEA012 [MX-3R70-12EXT] |
| System | MaxxMacro (System 3R 100% Cross-Compatible) |
| System Repeatability | 0.002mm |
| Material | Aluminum |
| Weight | 3.29 kg | 7.25 lb |
Shipping & Delivery
Items are shipped direct from the Manufacturer or Distributor listed.
