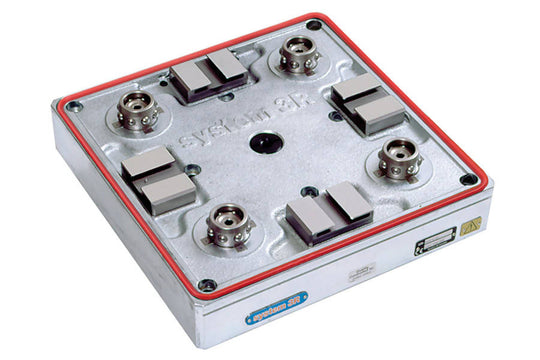

System 3R 3R-770-5, Pneumatic chuck, Dynafix

$23,015.00

System 3R
 Pneumatic table chuck for applications in five-axis machines. Air connection from below. Required air pressure 6 ±1 bar Fixed index positions 4x90...
SKU: 3R-770-5Categories: Sinker EDM Tooling, System 3R Chucks, System 3R Tooling Tags: 3R-770-5,Dynafix,Sinker EDM,System 3R Dynafix,
Description



Pneumatic table chuck for applications in five-axis machines. Air connection from below.

  • Required air pressure 6 ±1 bar
  • Fixed index positions 4x90°
  • Air-blast cleaning of the Z-references
  • Weight 23.5 kg
