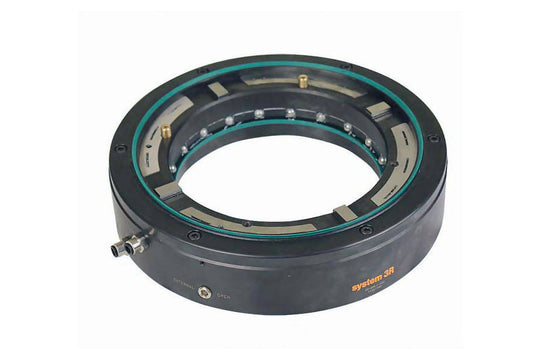

System 3R 3R-690.1-260, Pneumatic chuck, Matrix 260

$22,332.00

System 3R
 Chuck for permanent mounting on the machine table or into a PM press. Fixed index positions 4x90° Hardened references Locking force 24000 N Permis...
SKU: 3R-690.1-260Categories: Sinker EDM Tooling, System 3R Chucks, System 3R Tooling Tags: 3R-690.1-260,Matrix 260,Sinker EDM,
Description



Chuck for permanent mounting on the machine table or into a PM press.

  • Fixed index positions 4x90°
  • Hardened references
  • Locking force 24000 N
  • Permissible torque 600 Nm
  • Required drawbar 3R-695.2-260
  • Required air pressure 6±1 bar.
  • Weight 13 kg.
