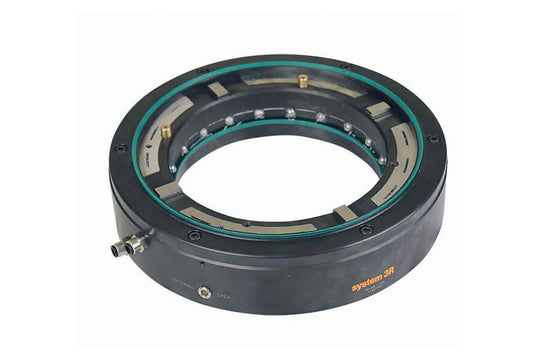

System 3R 3R-690.1-220, Pneumatic chuck, Matrix 220

$22,278.00

System 3R
Chuck for permanent mounting on the machine table or into a PM press. Fixed index positions 4x90° Hardened references Locking force 18500 N Permiss...
SKU: 3R-690.1-220Categories: Sinker EDM Tooling, System 3R Chucks, System 3R Tooling Tags: 3R-690.1-220,Matrix 220,Sinker EDM,
Description

Chuck for permanent mounting on the machine table or into a PM press.

  • Fixed index positions 4x90°
  • Hardened references
  • Locking force 18500 N
  • Permissible torque 600 Nm
  • Required drawbar 3R-695.2-220
  • Required air pressure 6±1 bar.
  • Weight 11 kg.
