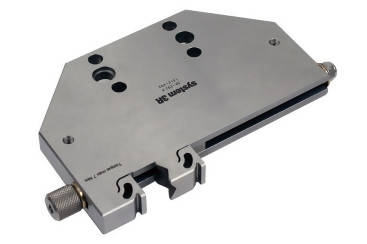

System 3R 3R-292.3P, SuperVice, Prism

$6,650.00 $0.00

System 3R
For vertical or horizontal collision-free clamping of round workpieces (Ø 3-15 mm). Alternatively, rotate the movable jaw and use as a regular 3R...
SKU: 3R-292.3PCategories: System 3R Tooling, Wire EDM Tooling Tags: 3R-292.3P,SuperVice,System 3R Wire EDM,WEDM,
Description

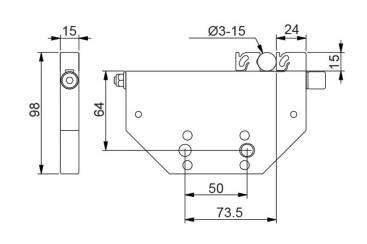

For vertical or horizontal collision-free clamping of round workpieces (Ø 3-15 mm). Alternatively, rotate the movable jaw and use as a regular 3R-292.3 vice for rectangular workpieces (0-100 mm).

  • Tightening torque 7 Nm
  • Weight 1.1 kg.
