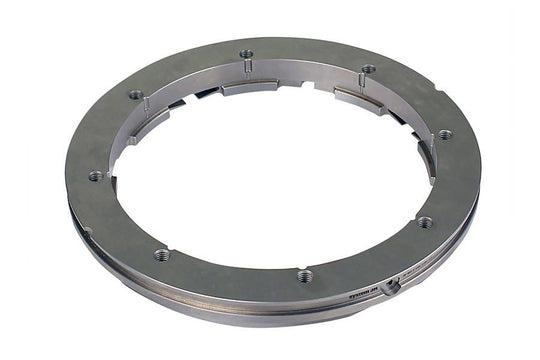

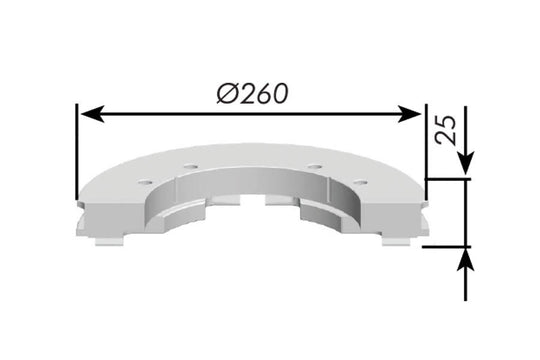

System 3R 3R-691.1-260, Pallet, Matrix 260

$5,590.00

System 3R
 Note: Not self carrying, requires extra support. Adapted for automatic changing Fixed index positions 4x90° Permissible press load 210 ton Permiss...
SKU: 3R-691.1-260Categories: Sinker EDM Tooling, System 3R Pallet, System 3R Tooling Tags: 3R-691.1-260,Matrix 260,Sinker EDM,
Description



Note: Not self carrying, requires extra support.

  • Adapted for automatic changing
  • Fixed index positions 4x90°
  • Permissible press load 210 ton
  • Permissible torque 570 Nm
  • Required drawbar 3R-695.2-260 or similar
  • Weight 3.2 kg.
Reviews
Shipping & Delivery
Items are shipped direct from the Manufacturer or Distributor listed.
