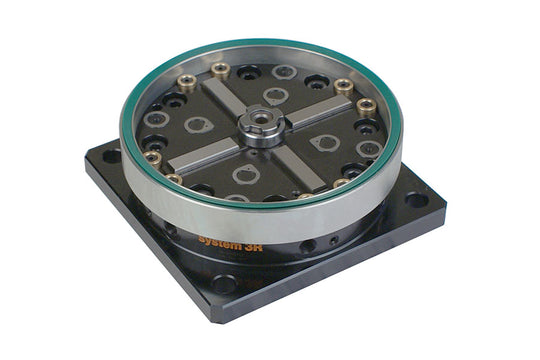

System 3R 3R-680.10-3 Table chuck, low profile, Macro Magnum

$8,965.00 $0.00

System 3R
For permanent mounting on the machine table. Supplied with drawbar 3R-605.2 Required air pressure 6 ±1 bar Fixed index positions 4x90º Flushing du...
SKU: 3R-680.10-3Categories: Sinker EDM Tooling, System 3R Chucks, System 3R Magnum, System 3R Tooling Tags: 3R-680.10-3,Table chuck,
Description

For permanent mounting on the machine table.

  • Supplied with drawbar 3R-605.2
  • Required air pressure 6 ±1 bar
  • Fixed index positions 4x90º
  • Flushing duct
  • Air-blast cleaning of the Z-references
  • Sealing ring
  • Turbo locking
  • Weight 7.5 kg
