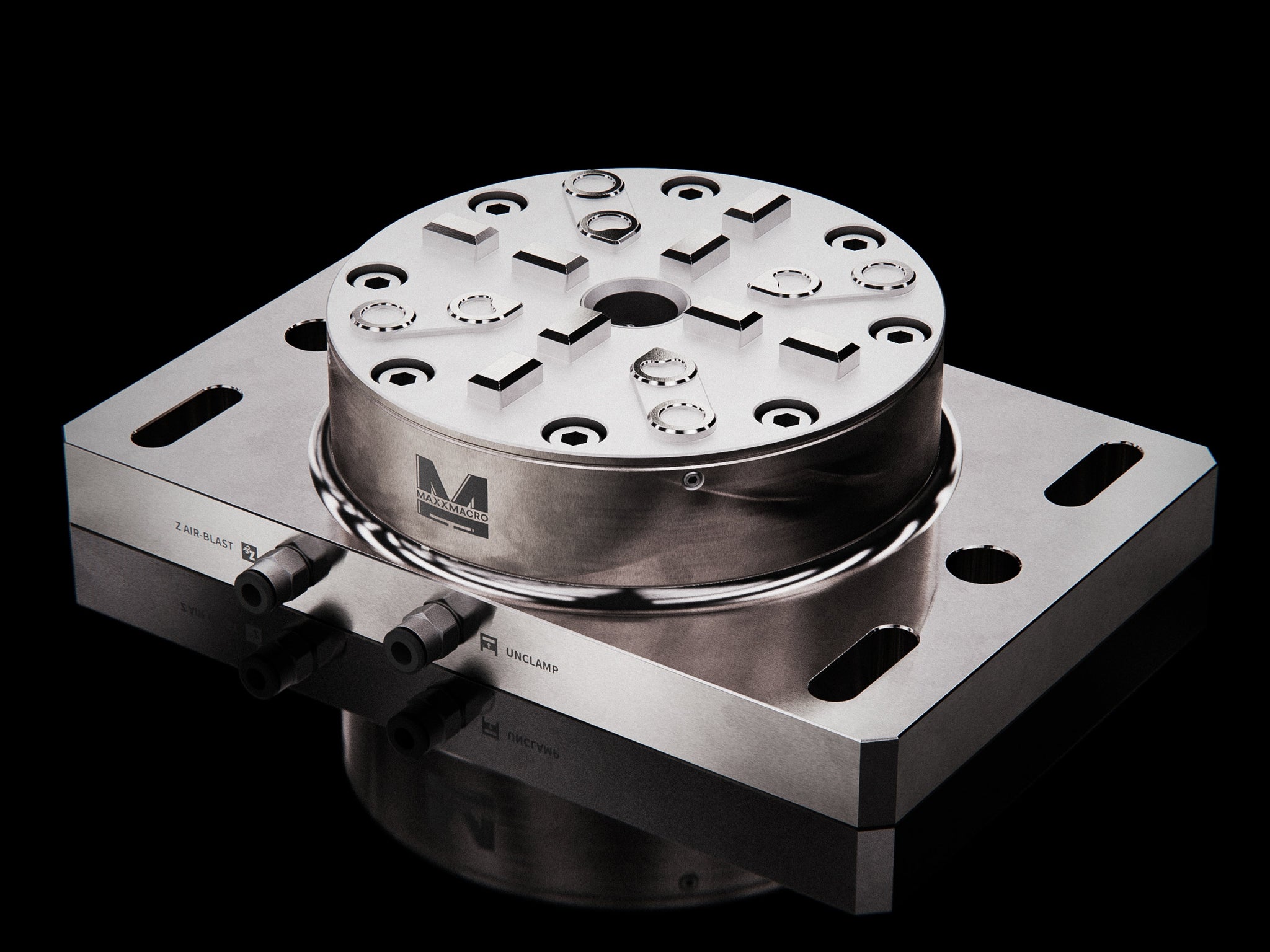

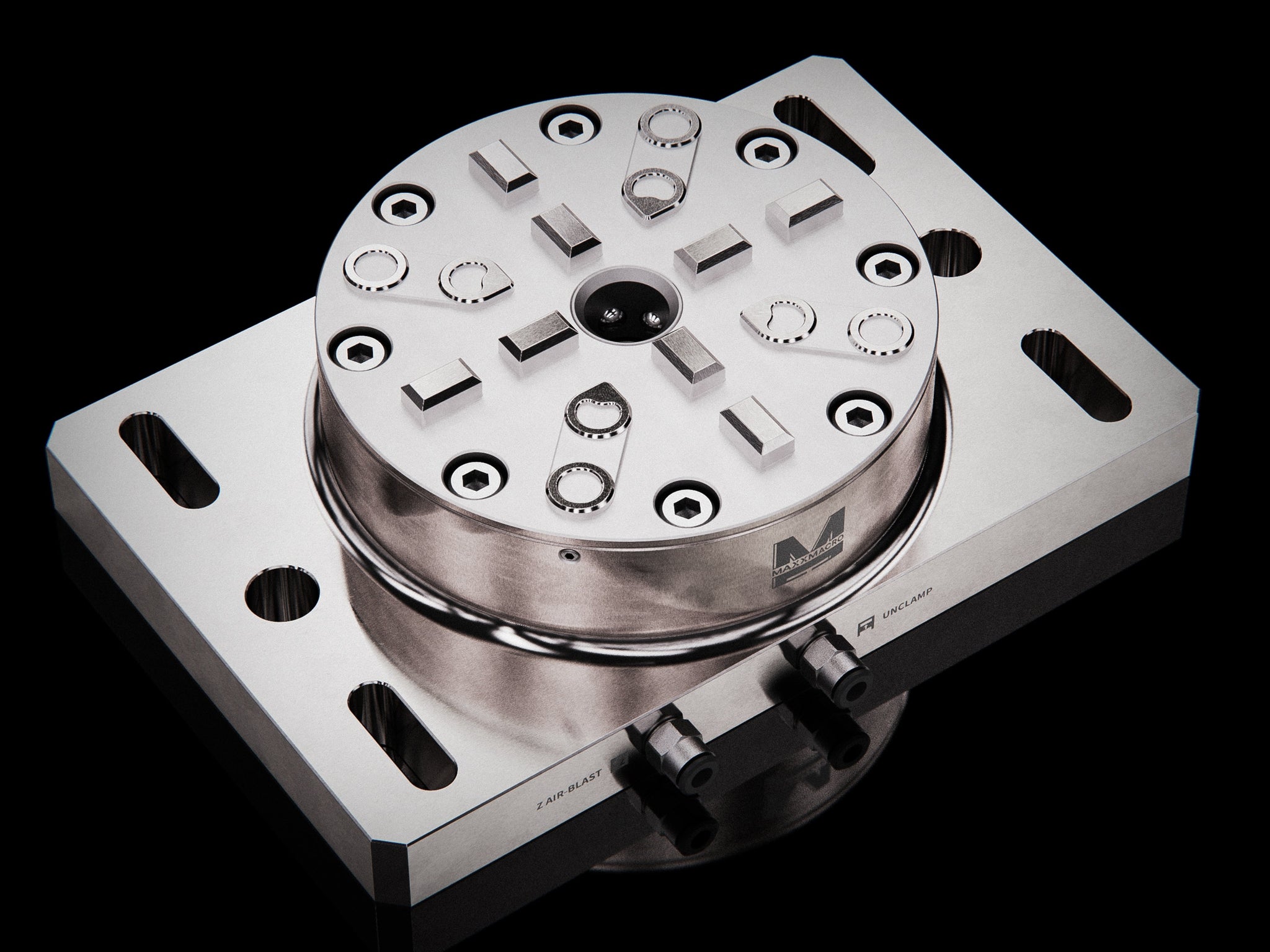

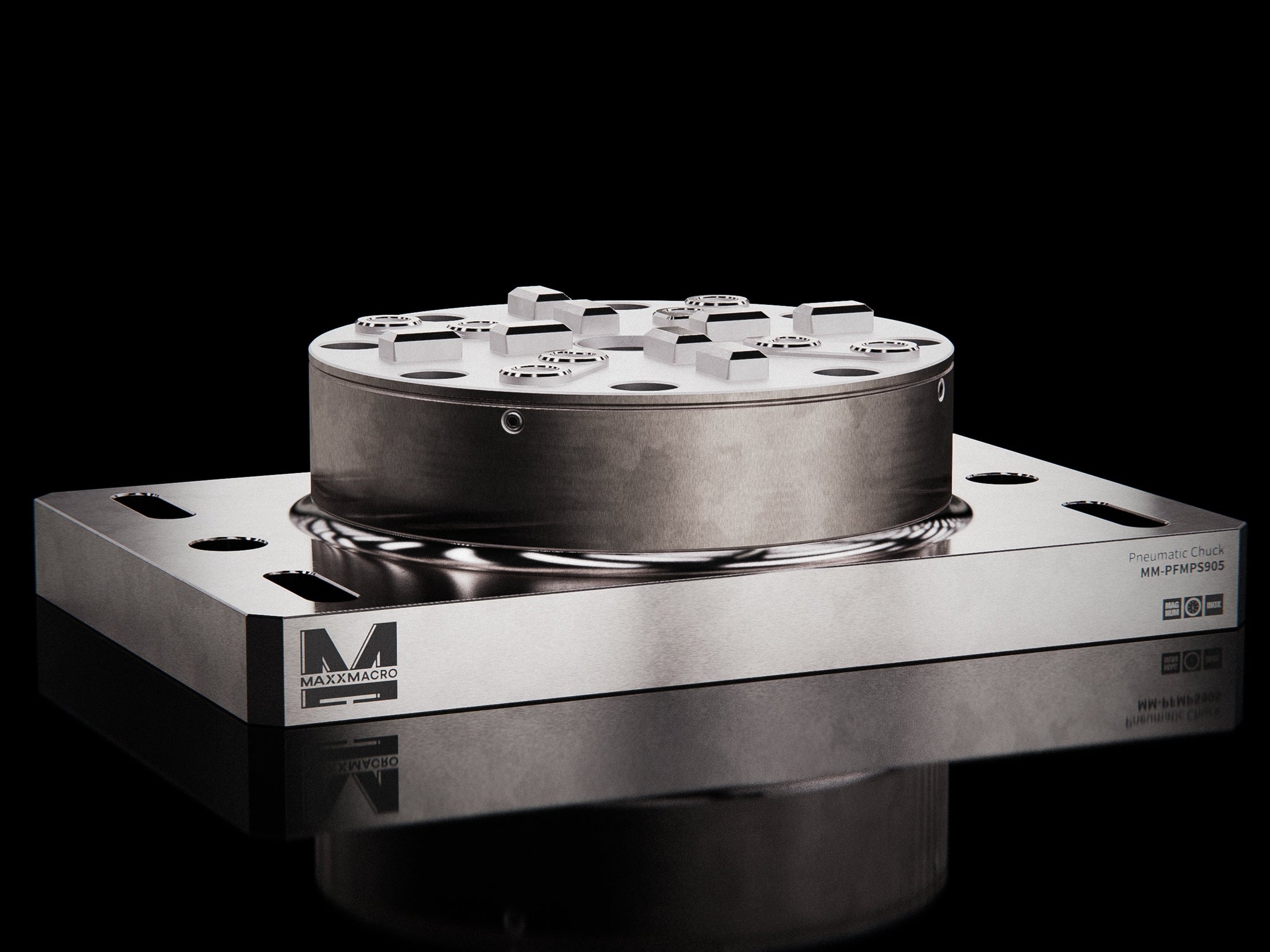

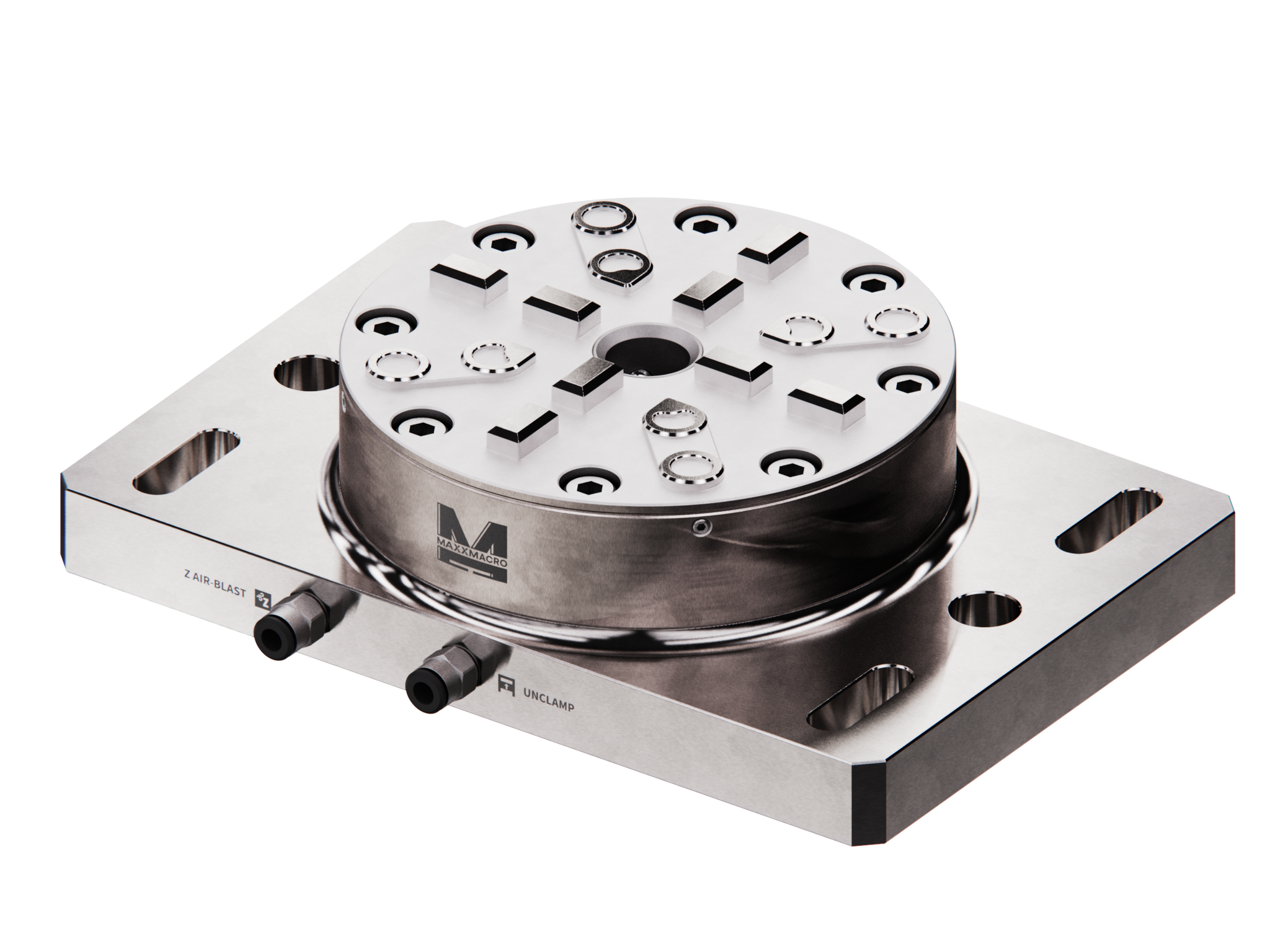

MaxxMagnum Pneumatic Chuck Manual Short Drawbar 680192

$2,950.00

Maxx Tooling
MaxxMagnum Pneumatic Chuck Manual Short Drawbar 680192 comes fully assembled and ready to use. This product is 100% cross-compatible with the Syste...
SKU: MM-PFMPS905Categories: All MaxxMacro® Products, CNC Workholding, MaxxMacro® Chucks Manual and Pneumatic, MaxxMacro® Chucks Pneumatic, MaxxMacro® MaxxMagnum® Performance WorkHolding, MaxxMagnum® Chucks, MaxxMagnum® Reference Elements, Pallets, Chucks and Vises Tags: 3R-680.10-2,3R-680.10-2A,3R-680.19-2,Chuck,Chucking,CNC Workholding,MaxxMacro Chuck,MaxxMagnum,MaxxMagnum Chuck,Milling,Mounting,MX-MM99821,Pneumatic,Stainless,System 3R,System 3R Chuck,System 3R Magnum Chuck,
Description

MaxxMagnum Pneumatic Chuck Manual Short Drawbar 680192 comes fully assembled and ready to use. This product is 100% cross-compatible with the System 3R Macro OEM system.

MaxxDesign Exclusive Features:

  • High quality materials.
  • 100% cross-compatible with OEM system
  • Includes Air-blast cleaning of the Z-references

Product Information:

MaxxMagnum Pneumatic Chuck Manual Short Drawbar 680192 is 100% cross compatible with System 3R 3R-680.10-2 3R-680.19-2 3R-680.10-2A Macro Magnum Pneumatic chucks.

MaxxMagnum Pneumatic Chuck Manual Short Drawbar 680192 is rust resistant and provides the best balance of durability , accuracy and design.

  • Repeatability: 0.002 mm (0.00008“)
  • Does not include the sealing ring; we offer it as a spare item.

Chuck Information

  • Clamping Type: Pneumatic
  • Mounting Bores: See print
  • Drawbar Required: MM-DRWBR101 (MX-STDR3R-1)
  • Force Power: 16000N
  • Requires air pressure: 6±1 bar

Product Details:

Product Name MaxxMagnum Pneumatic Chuck Manual Short Drawbar 680192
SKU MM-PFMPS905 (MX-MM99821)
Pallet Included See print
System MaxxMacro (System 3R 100% Cross-Compatible)
Repeatability 0.002mm
Material See above
Cross-Compatible 3R-680.10-2, 3R-680.10-2A, 3R-680.19-2
Dimensions -
Weight -
