MaxxMacro 2003J11 MXRuler WEDM Reference element 298mm

MaxxMacro MXRuler WEDM Reference elements have been developed to incorporate a dovetail-shaped reference element for machines with a parallel or U-shaped machine table, as well as for machines with a frame table. This reference element is compatible with the MXRuler System as well as the full MaxxMacro WEDM system, which includes a wide range of accessories for clamping various workpieces, positioning them on the machine zero line, without the risk of collision.

The length, hole spacing and hole edge spacing of the hardened reference elements are matched to the machine in question. Due to different shape and size of supporting tables made available, these reference rails are most often adopted to brand and model. This product is 100% cross-compatible with the System 3R Macro OEM system.

MaxxDesign Exclusive Features:

• Adjustable End-Stop: included to enable repeatability.

• High quality materials: Full rust proof design.
• MXRuler's Reference Elements are available in various lengths to match different machines. All other sizes are available to quote.
• The dovetail reference elements serve to mount not only the ruler. Check out the full range of accessories here: MaxxMacro WEDM Accessories and Vises

• Check out our MaxxMacro MXRuler Basic Set Up video: MaxxMacro Wire EDM Basic Setup Ruler Vise and WEDM Kit

Included Items

The MaxxMacro MXRuler Reference element includes the following items:

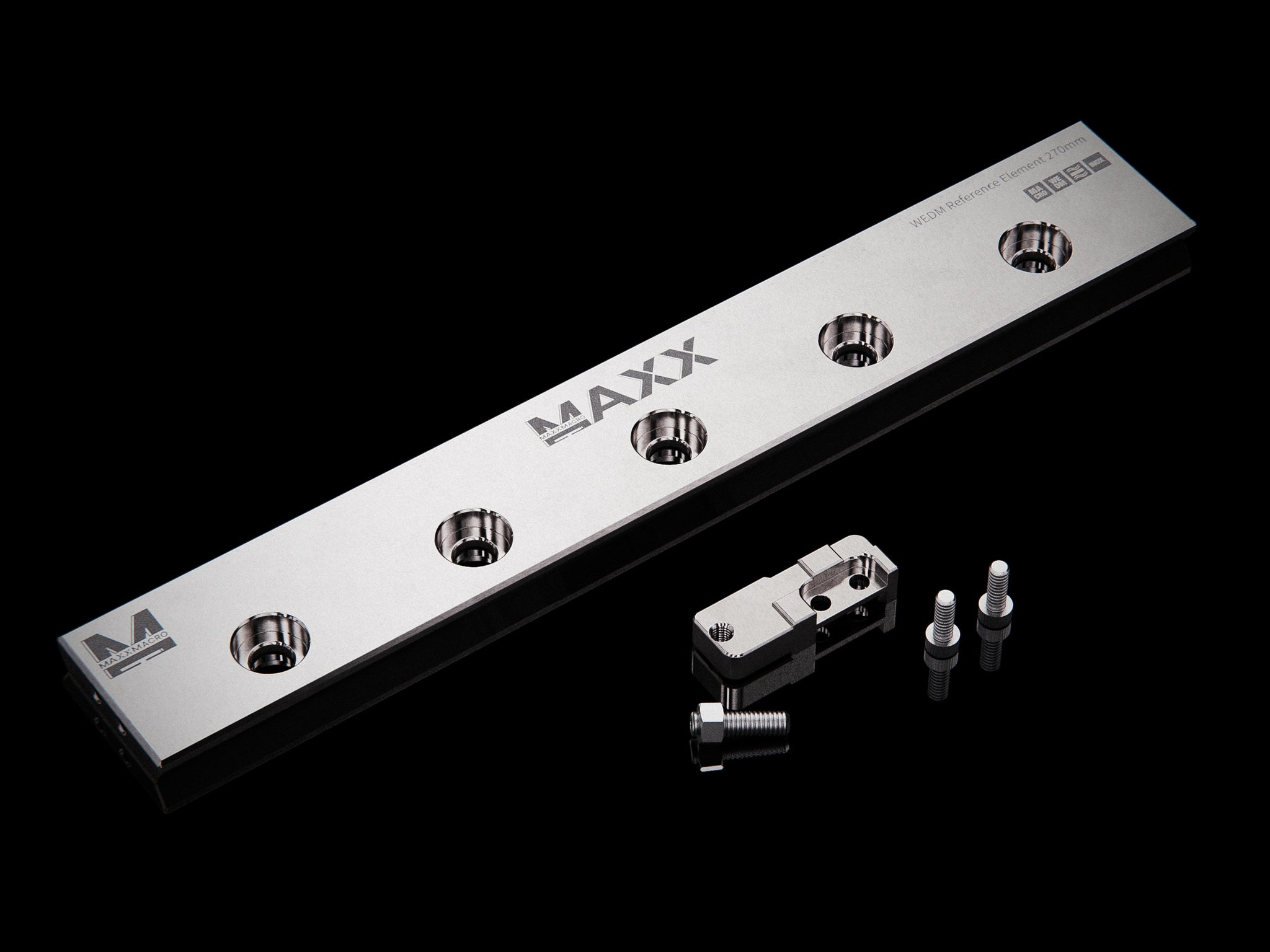

• x1 MaxxMacro MXRuler Reference element (1pc)
• x1 Adjustable End-Stop

Machine Compatibility

Fits the following machines and more. Some machine applications may not be referenced below. Please contact us if you have any doubts.

Horizontal setup:

Vertical setup:

Product Details:
