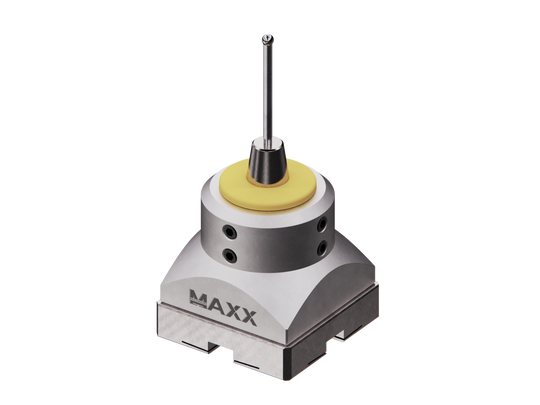

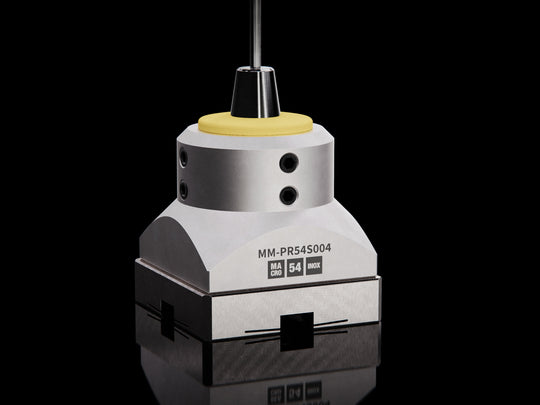

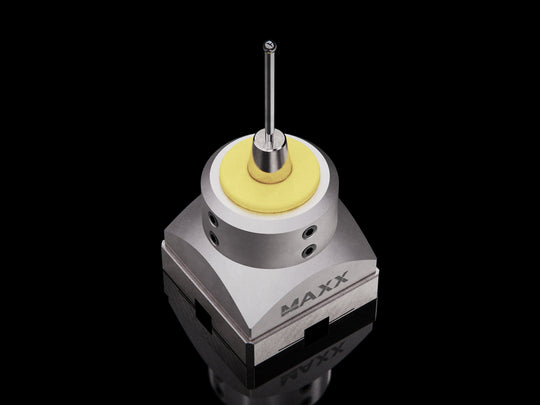

MaxxMacro 54 Probe Centering Sensor Stationary 4mm Tip
$595.00
MaxxMacro 54 Probe Centering Sensor Stationary 4mm Tip comes fully assembled and ready to use. This product is 100% cross-compatible with the System 3R Macro OEM system.
MaxxDesign Exclusive Features:
- High quality materials.
- 100% cross-compatible with OEM system
Product Information:
MaxxMacro Probe Centering Sensor is 100% cross compatible with System 3R 3R-656.31-3P 3R US-600.3 Macro 4mm Fixed probe with measuring head for machines with measurement cycle function.
Includes MaxxMacro Pallet 54 Performance Rust Proof Pallet,100% machined from solid block 440C Stainless Steel and provides the highest performance, quality and rigidity available.
Twin set screws per side for easy and simple alignment of tip.
Product Details:
| Product Name | MaxxMacro 54 Probe Centering Sensor Stationary 4mm Tip |
| SKU | MM-PR54S004 (MX-PRC00-4) |

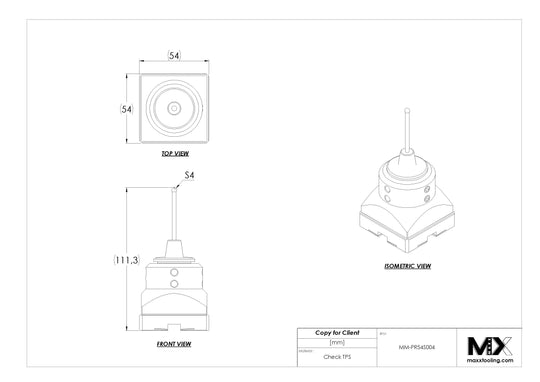

| Pallet Included | See print |
| System | MaxxMacro (System 3R 100% Cross-Compatible) |
| Repeatability | 0.002mm |
| Material | See above |
| Cross-Compatible | 3R-656.21-SP03, 3R-656.31-3P, 3R-656.31-5P |
| Dimensions | - |
| Weight | - |
