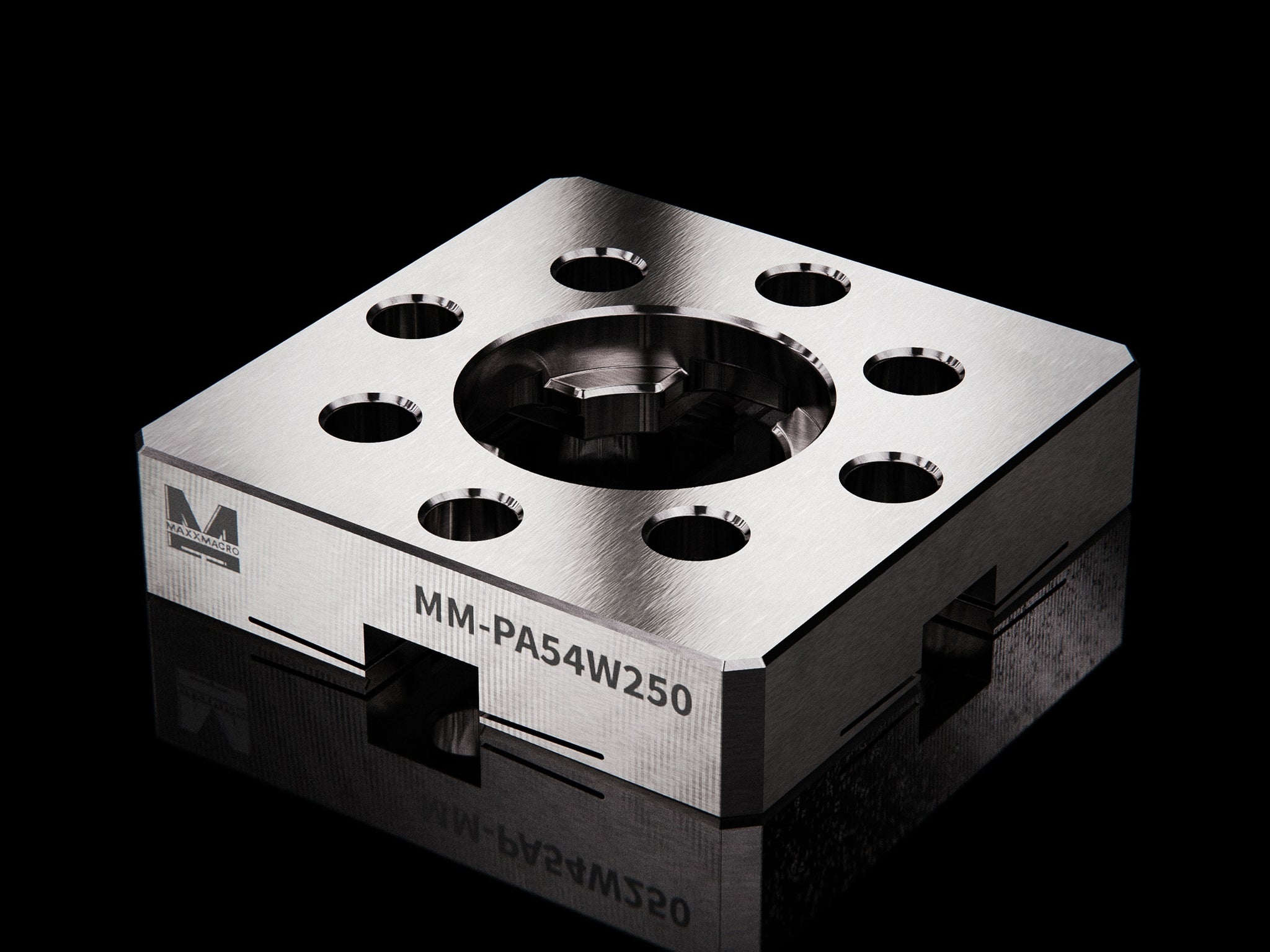

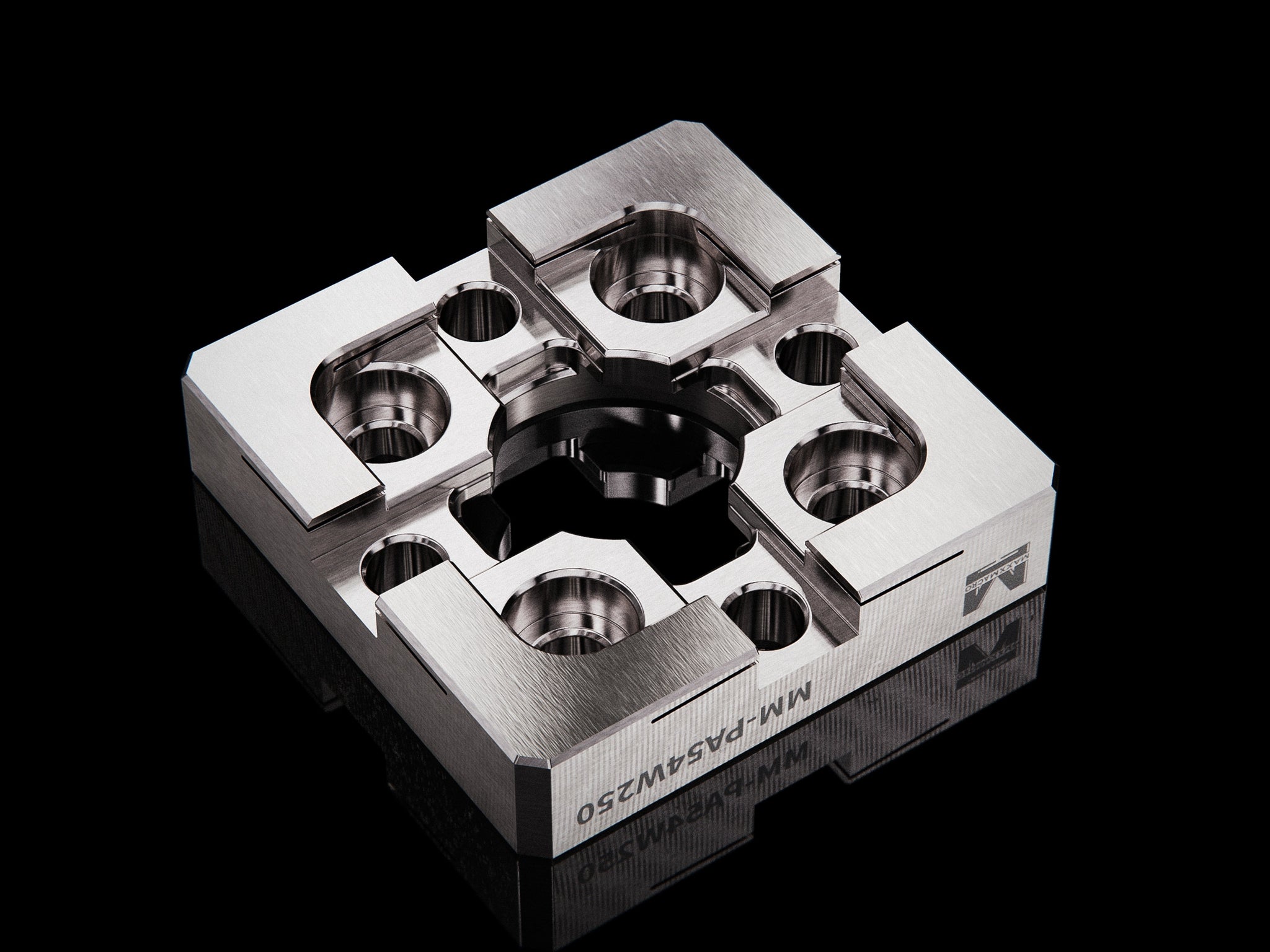

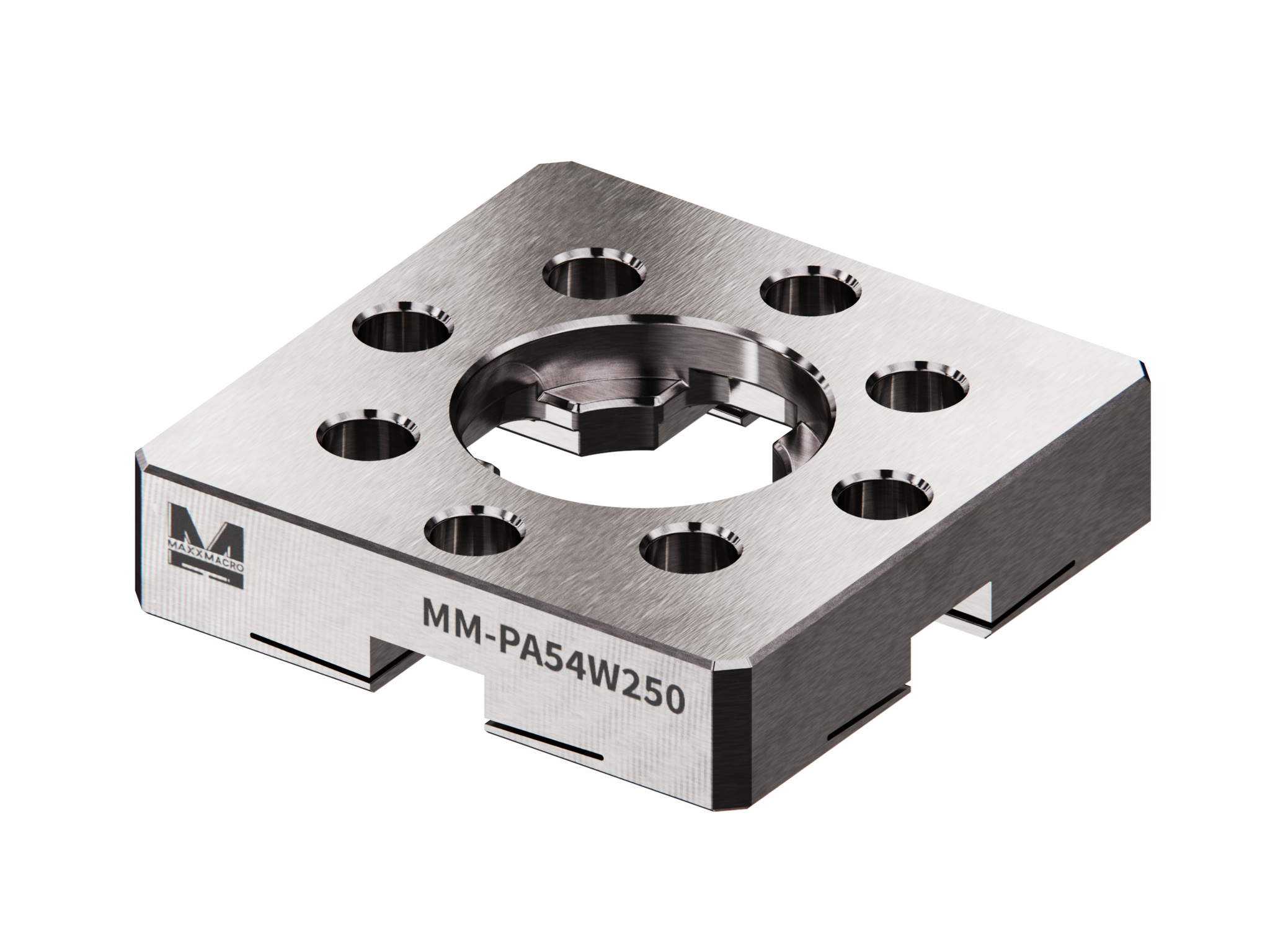

MaxxMacro 54 Performance Rust Proof Pallet with .250" Dowels
$52.00

MaxxMacro 54 Stainless Performance Rust Proof Pallet with .250" Dowels comes fully assembled and ready to use. This product is 100% cross-compatible with the System 3R Macro OEM system. Machined from solid Stainless 440c block, performance pallet with 250" finished dowels.
MaxxDesign Exclusive Features:
- Machined from solid 440C stainless steel for maximum strength and corrosion resistance
- Includes four finished .250" dowel holes
Product Information:
MaxxMacro 54 Stainless Performance Rust Proof Pallet with .250" Dowels is not a cast pallet—it’s precision-machined from a solid block of 440C stainless steel, offering the highest performance, quality, and rigidity available. Its corrosion-resistant construction makes it ideal for even the most demanding machining environments, with no risk of flaking or peeling as seen in plated alternatives. This ensures long-lasting performance and reliability. As part of the extensive MaxxMacro product range, this pallet performs exceptionally well even as a standalone fixture. It allows for easy workpiece mounting with screws and provides an outstanding direct repeatability of 0.002 mm, fully compatible with the System 3R Macro interface.
Product Details
Product Name | MaxxMacro 54 Stainless Performance Rust Proof Pallet with .250" Dowels |
SKU [Old SKU] | MM-PA54W250 [MX-0013M-1D25] |
System | MaxxMacro (System 3R 100% Cross-Compatible) |
Cross-Compatible | 3R-651.7E-P [3R-651.7E-XS, 3R-651.7E-N, 3R-651.7E-S] |
System Repeatability | 0.002mm |
Material | Stainless 440C |
Weight | 0.17 kg | 0.37 lb |
Pallet is of high quality. I would recommend
giving a dimensional drawing of holes and dowel locations with each pallet.
Their tooling was in our machine within 48 hours of our first phone and working perfectly like they said it would. We will be buying more!!!
Love the fact they are machined from 100% stainless steel. Will be buying more for sure!
Overall experience has been good. No complaints as of yet.
My overall experience with these pallets have been good. Craftmanship and service 2nd to none.
