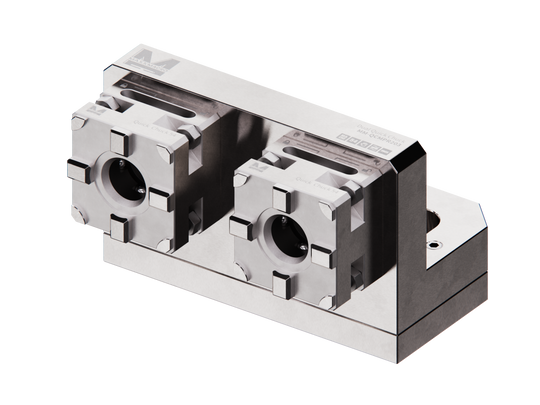

MaxxMacro (System 3R) 54 Dual QuickChuck Chuck with Horizontal RSM Mounting Plate 0

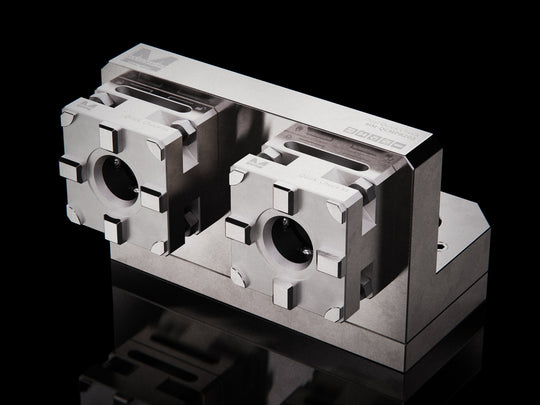

MaxxMacro (System 3R) 54 Dual QuickChuck Chuck with Horizontal RSM Mounting Plate 1

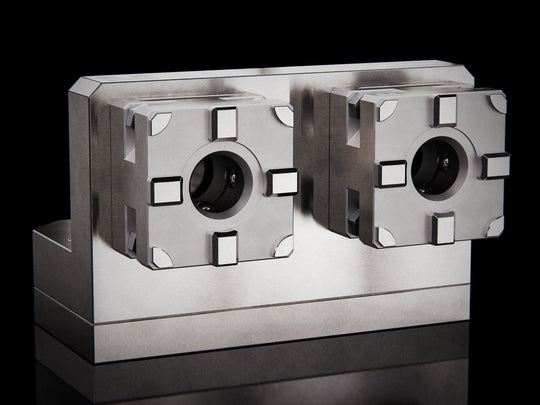

MaxxMacro (System 3R) 54 Dual QuickChuck Chuck with Horizontal RSM Mounting Plate 2

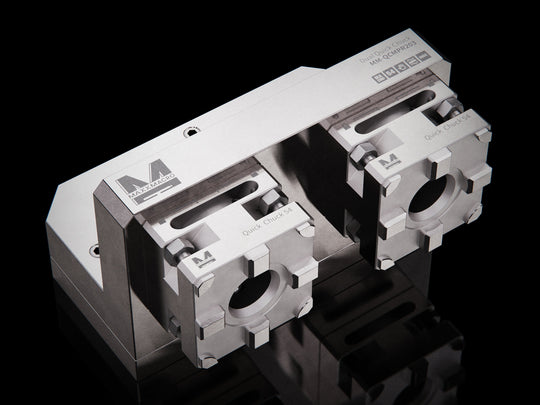

MaxxMacro (System 3R) 54 Dual QuickChuck Chuck with Horizontal RSM Mounting Plate 3

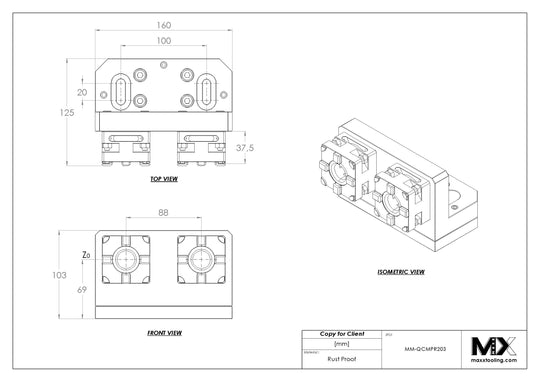

MaxxMacro (System 3R) 54 Dual QuickChuck Chuck with Horizontal RSM Mounting Plate 5

MaxxMacro 54 Dual Quick Chuck WEDM Rust Proof with Horizontal 90-Degree RSM Mounting Plate

$3,432.00

Maxx Tooling
MaxxMacro 54 Dual QuickChuck Chuck with Horizontal RSM Mounting Plate comes fully assembled and ready to use. This product is 100% cross-compatible...
SKU: MM-QCMPR203Categories: All MaxxMacro® Products, MaxxMacro, MaxxMacro® Chucks Manual, MaxxMacro® Chucks Manual and Pneumatic, MaxxMacro® Electrode Holders, MaxxMacro® MaxxMagnum® Performance WorkHolding, MaxxMacro® WEDM - Chucks, MaxxMacro® WEDM Wire EDM Tooling, Sinker EDM Tooling, Wire EDM Tooling Tags: 3R-600.24-S,3R-602.27-1,3R-A19724,3R-A21944,54,Adapter,Chuck,Chucking,EDM,Manual,MaxxMacro,Milling,Mounting,MultiChuck,QuickChuck,Rust Proof,Stainless,System 3R,System 3R Chuck,WEDM,
Description

MaxxMacro 54 Dual QuickChuck Chuck with Horizontal RSM Mounting Plate comes fully assembled and ready to use. This product is 100% cross-compatible with the System 3R Macro OEM system. Double horizontal QuickChuck with alignment features to adjust chuck position.

MaxxDesign Exclusive Features:

  • Full 440C rust proof design.
  • Adjustable Base:It includes an adjustable base to guarantee perfect alignment of the chucks.

Product Specifics

  • Clamping Type: QuickChuck
  • Clamping Force: 4 kN
  • Angle: 90
  • Drawbar/Spigot required: MM-DRWBR101
  • Chuck Included: MM-QC54R000
  • Included Items: MX-ACMTX001
  • Repair/Maintenance Kit: MM-RKQCX001

Product Details

  Product Name MaxxMacro 54 Dual QuickChuck Chuck with Horizontal RSM Mounting Plate
  SKU [Old SKU] MM-QCMPR203
  System MaxxMacro  (System 3R 100% Cross-Compatible)
  Cross-Compatible [3R-602.27-1, 3R-600.24-S, 3R-A19724, 3R-A21944]
  System Repeatability 0.002mm
  Weight 6.8 kg | 14.99 lb
