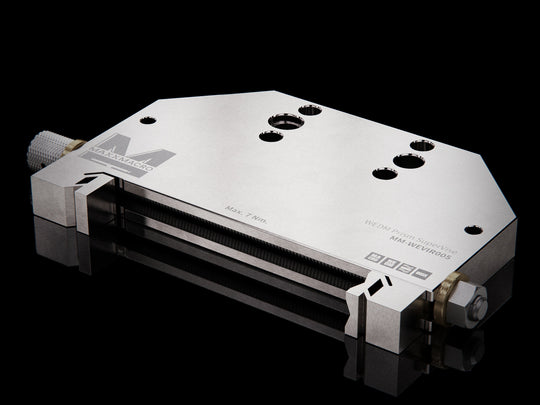

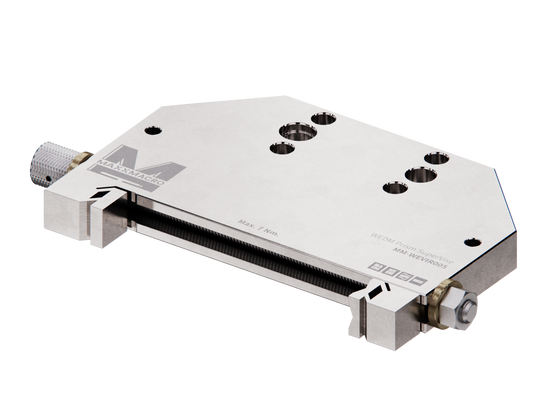

MaxxMacro 2923P WEDM Prism SuperVise
$3,200.00
MaxxMacro 2923P WEDM Prism SuperVise comes fully assembled and ready to use. This product is 100% cross-compatible with the System 3R Macro OEM system.
MaxxDesign Exclusive Features:
- High quality materials.
- 100% cross-compatible with OEM system
Product Information:
MaxxMacro 2923P WEDM Prism SuperVise is 100% cross compatible with System 3R. This makes it easy to perform compound machining operations quickly and accurately. Plus, it enables seamless integration of machining operations with other systems and parts.

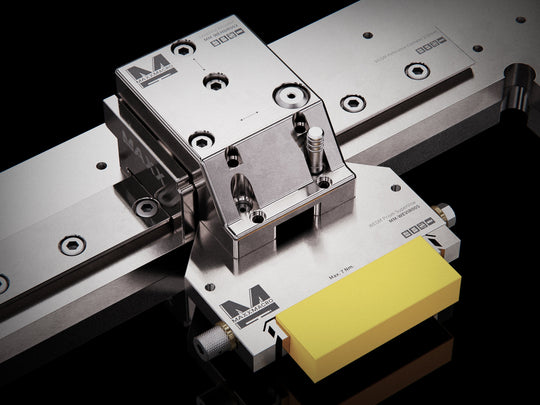

MaxxMacro 2923P WEDM Prism SuperVise for vertical or horizontal collision-free clamping of round workpieces (Ø 3-15 mm).
Alternatively, rotate the movable jaw and use as a regular MX-2923 (3R-292.3) vice for rectangular workpieces (0-100 mm).
Tightening torque 7 Nm.
Product Details:
| Product Name | MaxxMacro 2923P WEDM Prism SuperVise |
| SKU | MM-WEVIR005 (MX-2923P) |

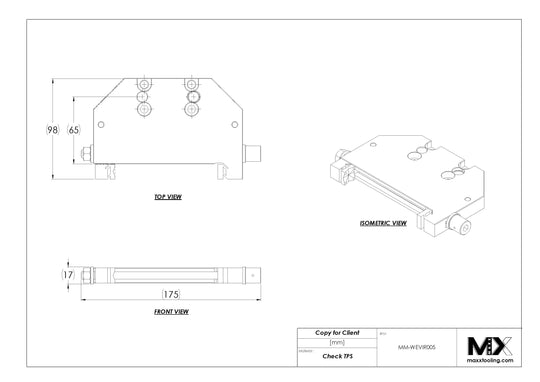

| Pallet Included | See print |
| System | MaxxMacro (System 3R 100% Cross-Compatible) |
| Repeatability | 0.002mm |
| Material | See above |
| Cross-Compatible | 3R-292.3, 3R-292.3P |
| Dimensions | - |
| Weight | - |
