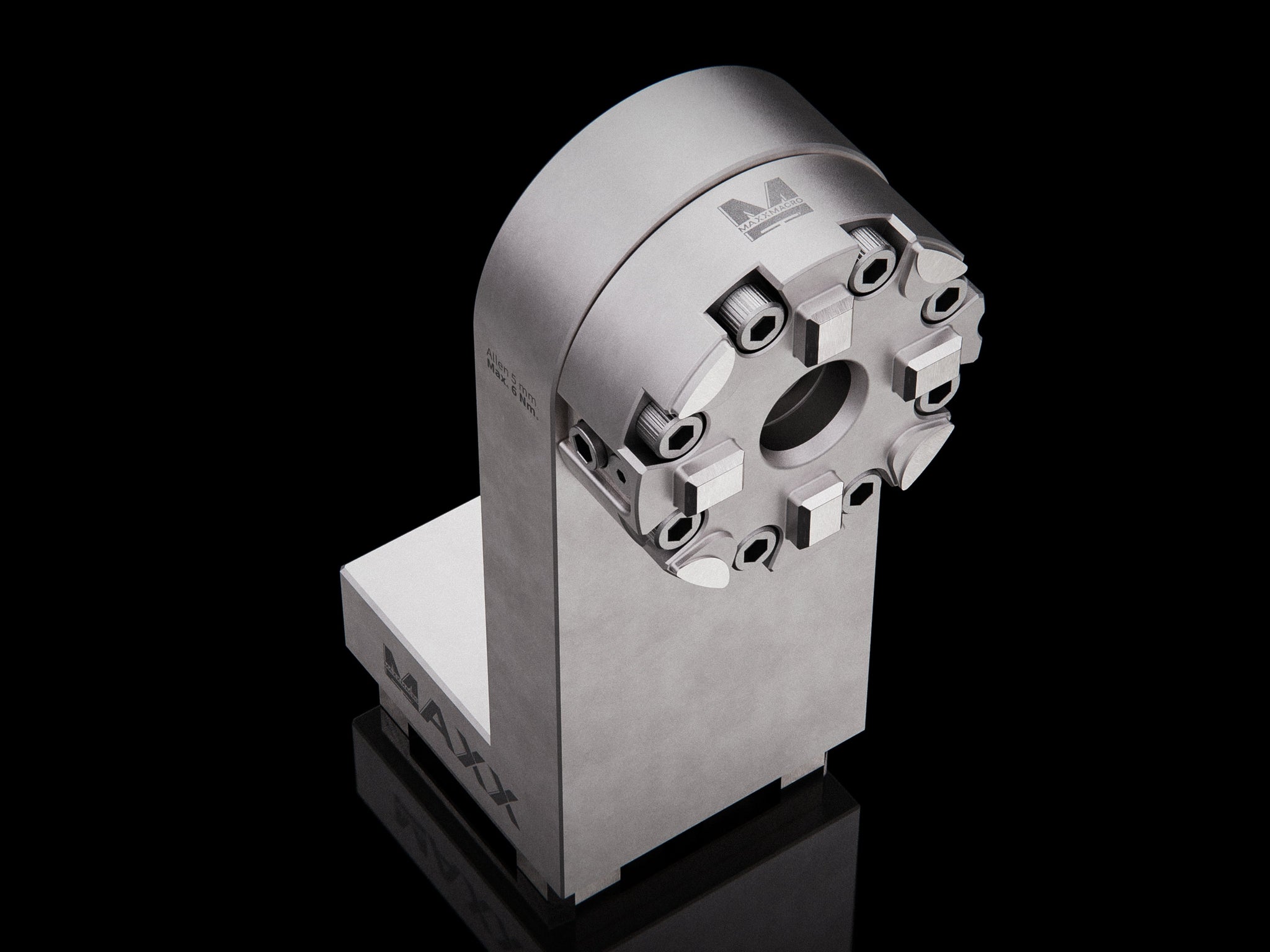

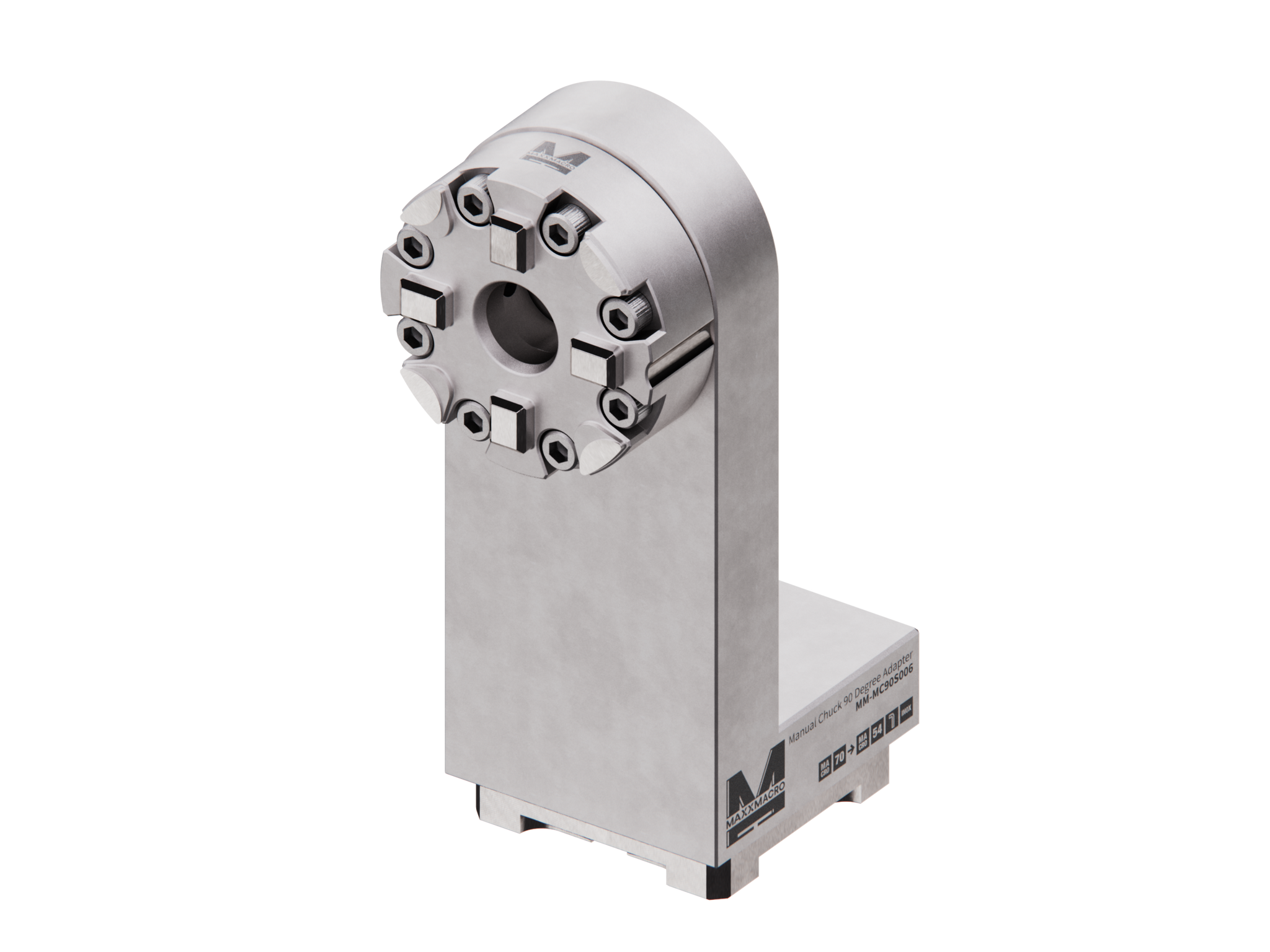

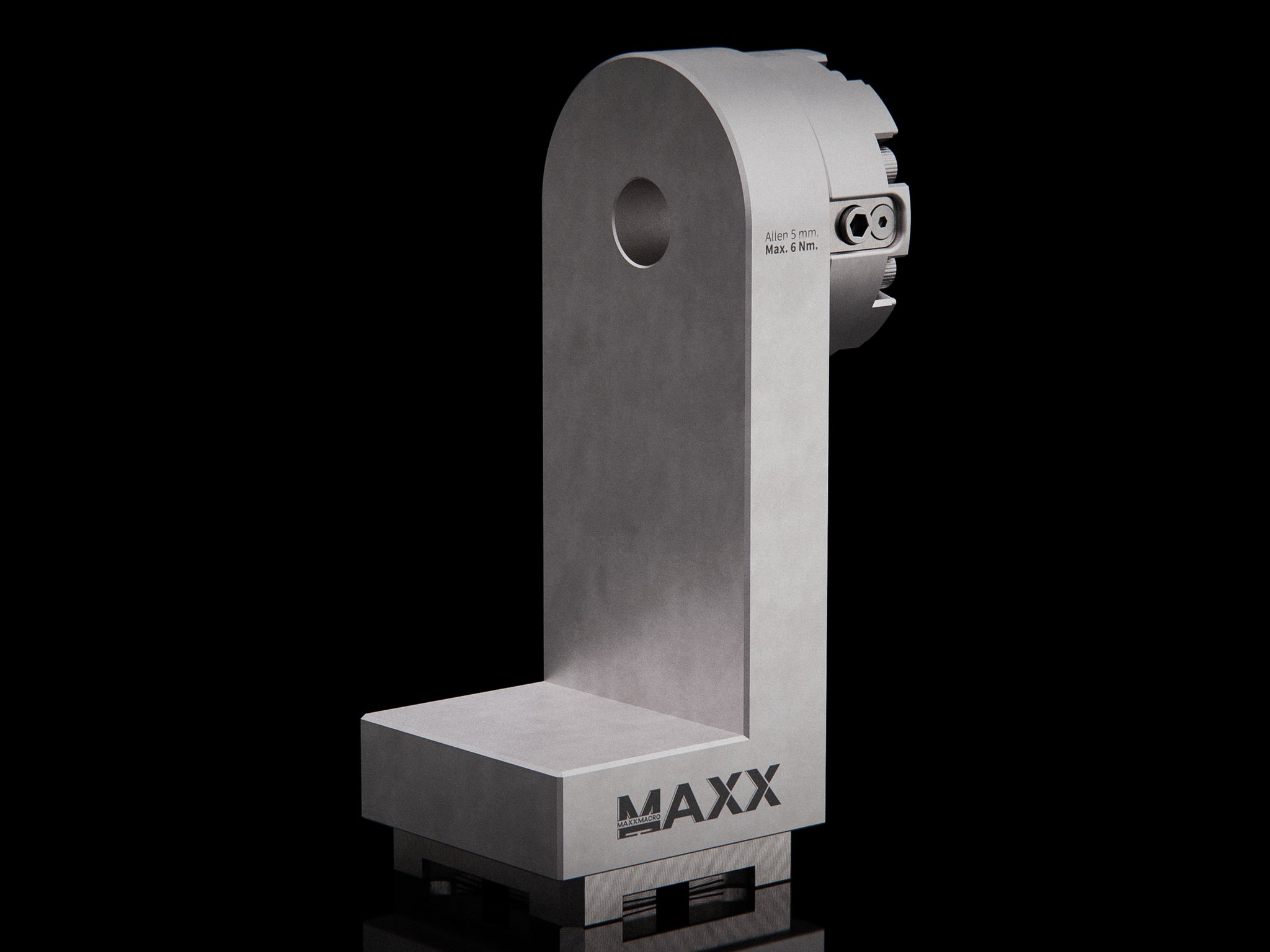

MaxxMacro 54 Manual Chuck 90 Degree Adapter 6" with 70 Performance Pallet

$1,924.00

Maxx Tooling
MaxxMacro 54 Manual Angle Adapter 90 Degree Adapter 6" with 70 Performance Pallet comes fully assembled and ready to use. This product is 100% cros...
SKU: MM-MC90S006Categories: All MaxxMacro® Products, MaxxMacro, MaxxMacro® Adapters, Angled and 90 Degree, MaxxMacro® Electrode Holders, MaxxMacro® MaxxMagnum® Performance WorkHolding, Sinker EDM Tooling Tags: 3R-652.9,54,70,Adapter,Angle,Angle Adapter,Chucking,EDM,Manual,MaxxMacro,Milling,MX-MM90-6,Stainless,System 3R,System 3R Angle Adapter,
Description

MaxxMacro 54 Manual Angle Adapter 90 Degree Adapter 6" with 70 Performance Pallet comes fully assembled and ready to use. This product is 100% cross-compatible with the System 3R Macro OEM system. For horizontal mounting of MaxxMacro holders.

MaxxDesign Exclusive Features:

  • Allows user to quickly go from vertical to horizontal position while maintaining location and accuracy.
  • Positional accuracy to data. 005mm

Product Information:

MaxxMacro 54 Manual Chuck 90 Degree Adapter 6" with 70 Performance Pallet is a over sized reversed model to the Maxx Tooling Standard 90 Degree Holder. This holder has also been reversed to our standard allowing you to increase the distance from your head to the burn location. Allows user to quickly go from vertical to horizontal position while maintaining location and accuracy.

Product Specifics

  • Clamping Type: Manual (6 Nm)
  • Clamping Force: 6 kN
  • Angle: 90
  • Drawbar/Spigot required: MM-DRWBR101
  • Chuck Included: MM-MC54R024
  • Reference Element Included: MM-PA54W006
  • Repair/Maintenance Kit: MM-RKMCW002, MM-MCRPX001

Product Details

  Product Name MaxxMacro 54 Manual Angle Adapter 90 Degree Adapter 6" with 70 Performance Pallet
  SKU [Old SKU] MM-MC90S006 [MX-MM90-6]
  System MaxxMacro  (System 3R 100% Cross-Compatible)
  Cross-Compatible [3R-652.9]
  System Repeatability 0.002mm
  Weight 4.3 kg | 9.48 lb
