MaxxMacro 54 Performance Rust Proof Pallet with 6mm Dowels

$52.00

Maxx Tooling
MaxxMacro 54 Stainless Performance Rust Proof Pallet with 6mm Dowels comes fully assembled and ready to use. This product is 100% cross-compatible ...
Description

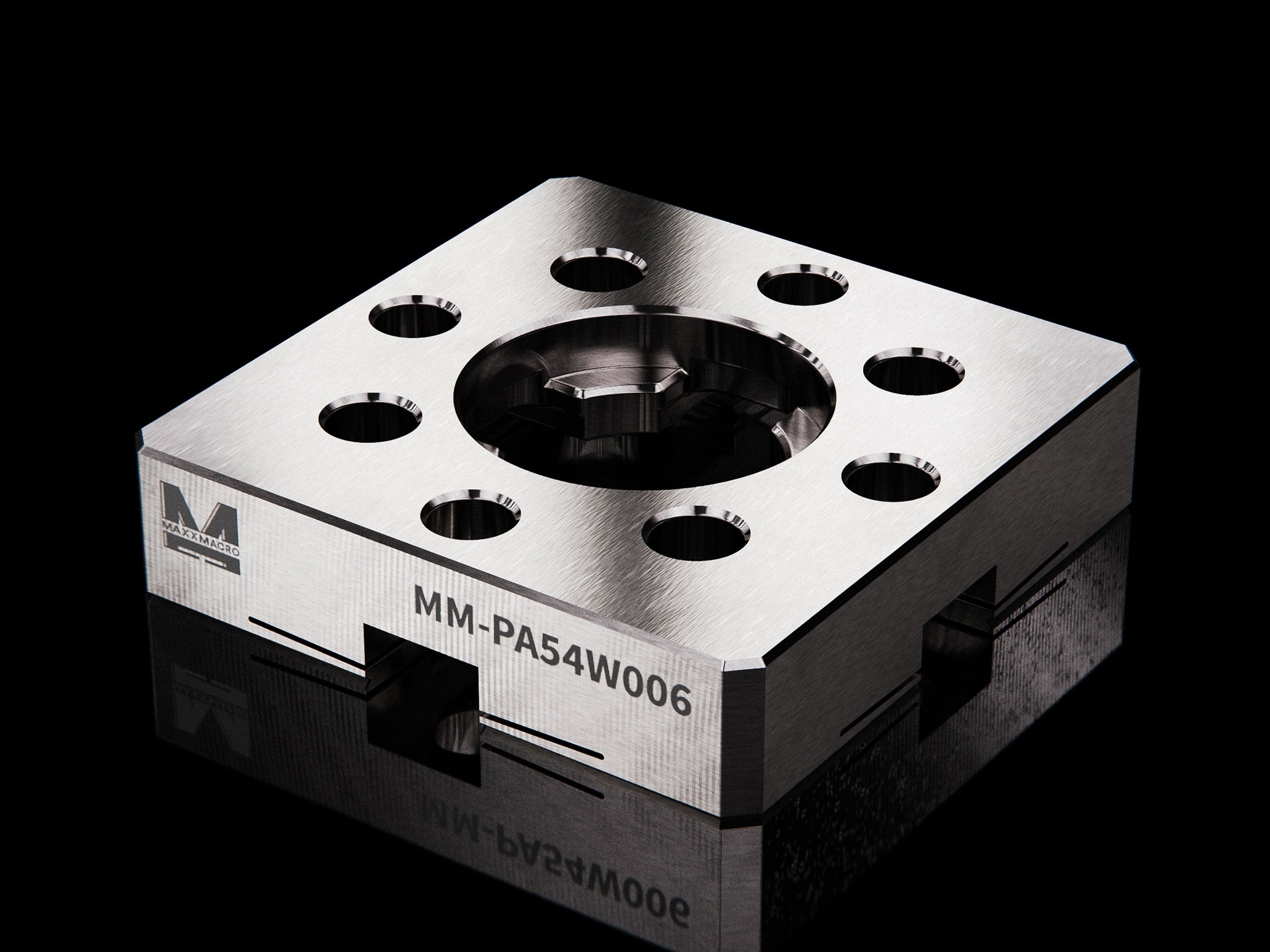

MaxxMacro 54 Stainless Performance Rust Proof Pallet with 6mm Dowels comes fully assembled and ready to use. This product is 100% cross-compatible with the System 3R Macro OEM system. Machined from solid Stainless 440c block, performance pallet with 6mm finished dowels.

MaxxDesign Exclusive Features:

  • Machined from solid 440C stainless steel for maximum strength and corrosion resistance
  • Includes four finished 6mm dowel holes

Product Information:

MaxxMacro 54 Stainless Performance Rust-Proof Pallet with 6mm Dowels is not a cast pallet—it’s precision-machined from a solid block of 440C stainless steel, offering the highest performance, quality, and rigidity available. Its corrosion-resistant construction makes it ideal for even the most demanding machining environments, with no risk of flaking or peeling as seen in plated alternatives. This ensures long-lasting performance and reliability. As part of the extensive MaxxMacro product range, this pallet performs exceptionally well even as a standalone fixture. It allows for easy workpiece mounting with screws and provides an outstanding direct repeatability of 0.002 mm, fully compatible with the System 3R Macro interface.

Product Details

  Product Name MaxxMacro 54 Stainless Performance Rust Proof Pallet with 6mm Dowels
  SKU [Old SKU] MM-PA54W006 [MX-0013M-1D6]
  System MaxxMacro  (System 3R 100% Cross-Compatible)
  Cross-Compatible 3R-651.7E-P [3R-651.7E-XS, 3R-651.7E-N, 3R-651.7E-S]
  System Repeatability 0.002mm
  Material Stainless 440C
  Weight 0.17 kg | 0.37 lb
Reviews

Customer Reviews

Based on 5 reviews
100%
(5)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
B
Brian H.
Good Alternative

Pleased. Easy to order from website. Contacted promptly to let me know when to expect delivery. Parts received and appear to be good quality. Would love to see a "Notch" feature on these, even if it's machined in instead of sticking out like 3R.

H
Humberto P.
Excellent service!!!

Very good quality

D
Dewey M.
3R pallet

the pallets are a precision mounting for our graphite blanks. All of the items that we purchase from Maxx are always great.

R
Roberto T.
High precision pallet!

way better than 3R's

D
Dan B.
Just perfect

Work perfectly with the system 3R, the price is very getter than the original and the quality is good.
