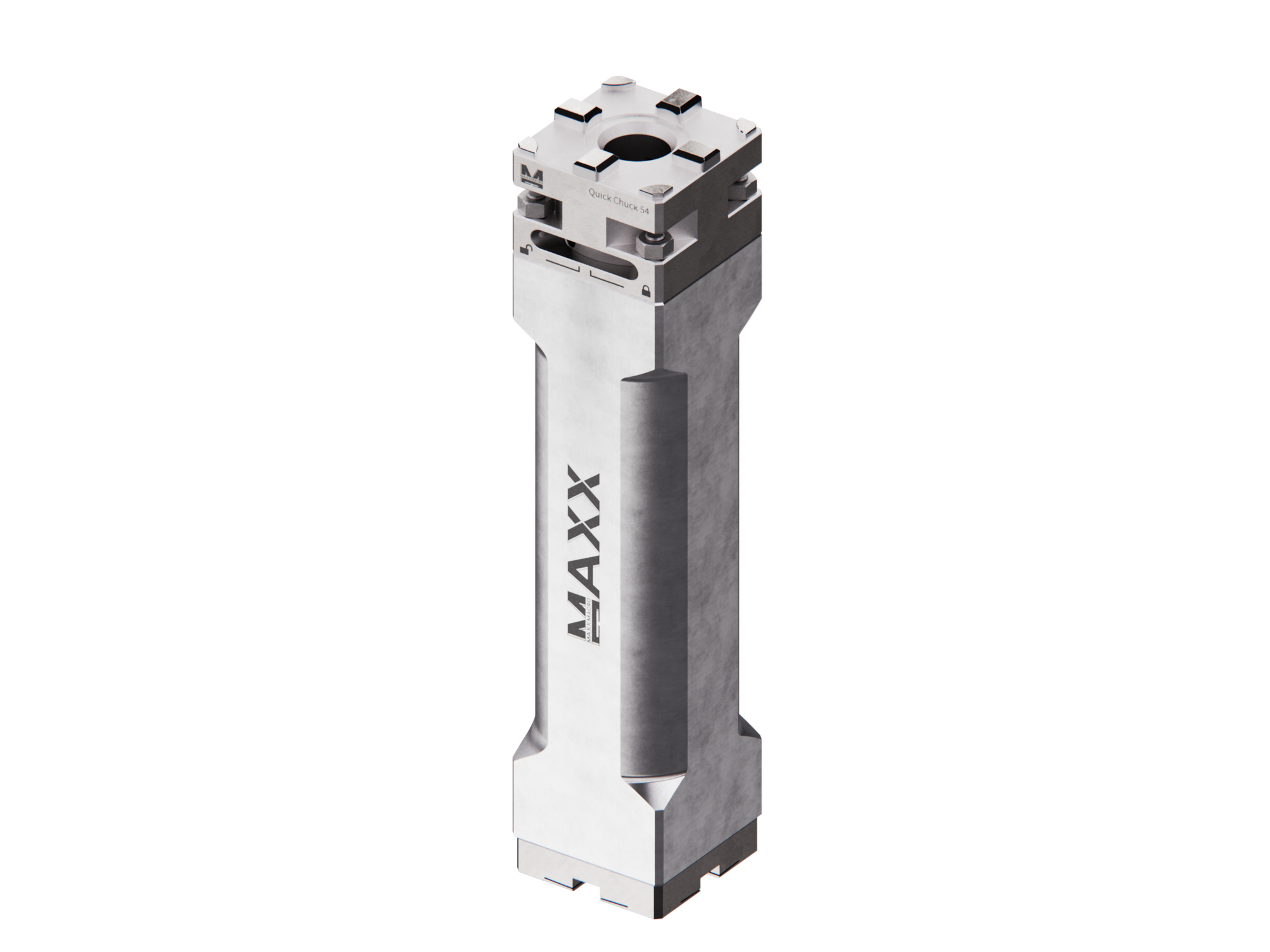

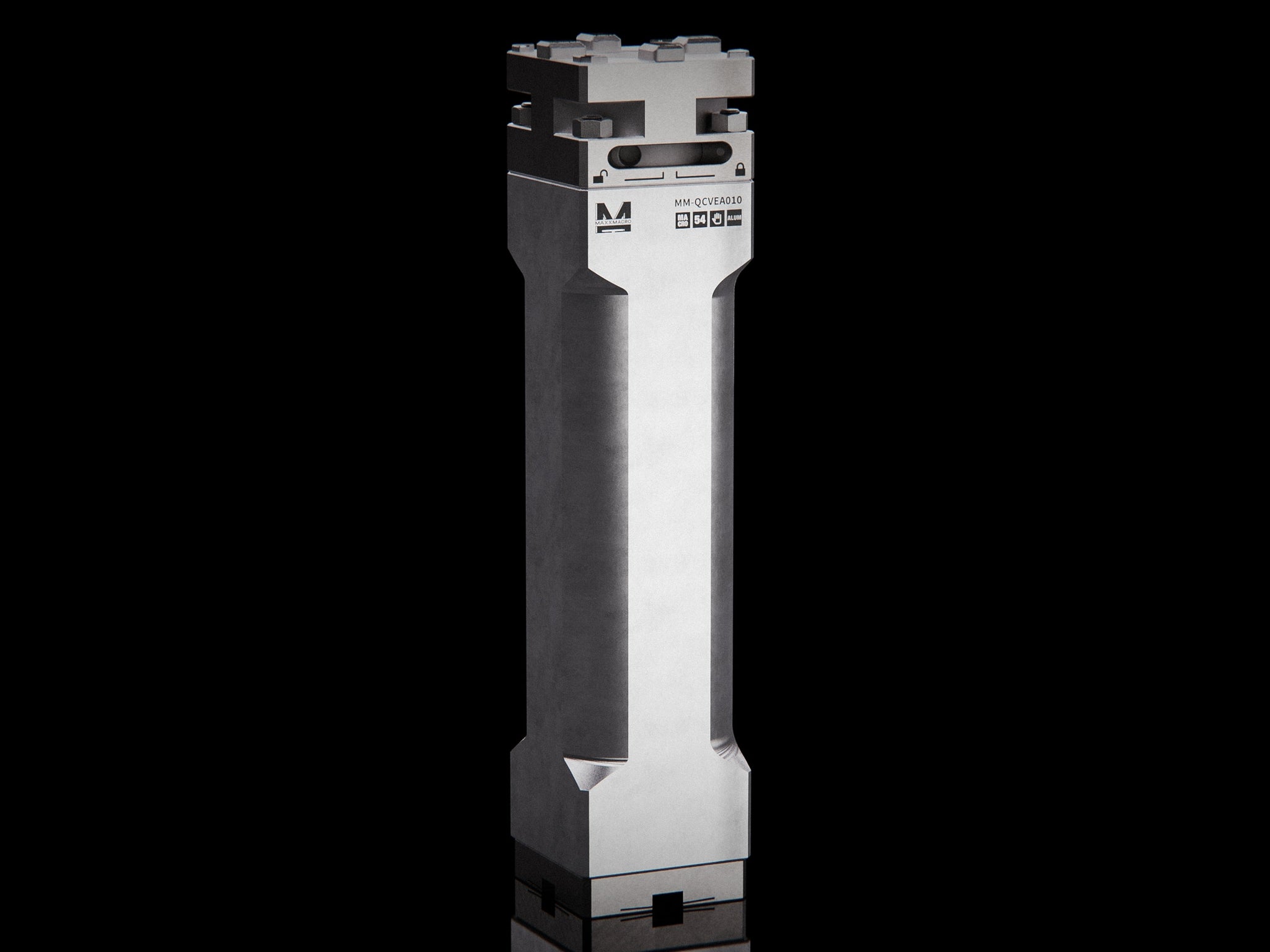

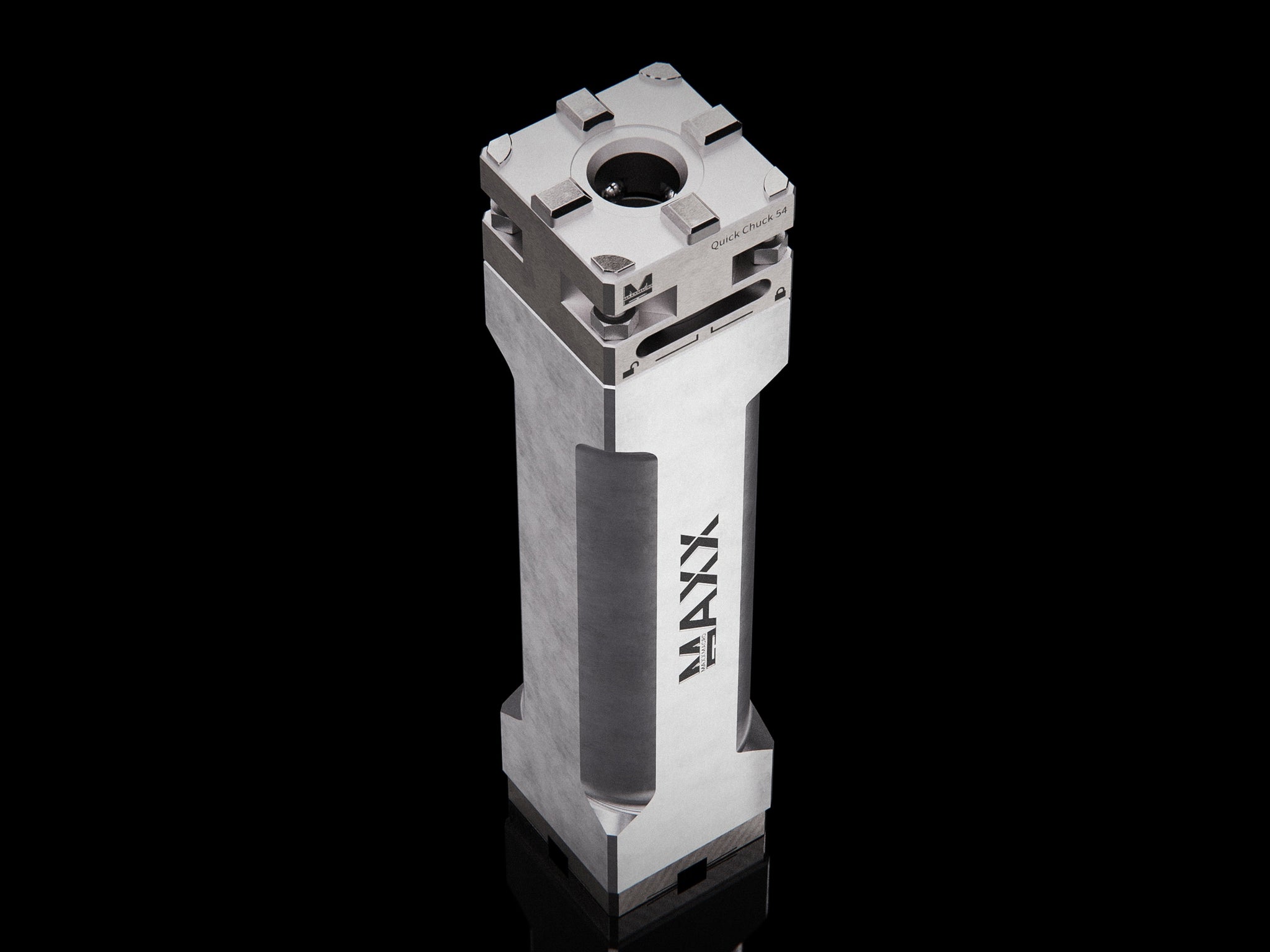

MaxxMacro 54 Manual QuickChuck Vertical Extension 10"
$1,249.00
MaxxMacro 54 Aluminum Manual QuickChuck Vertical Extension 10" comes fully assembled and ready to use. This product is 100% cross-compatible with t...
Description
MaxxMacro 54 Aluminum Manual QuickChuck Vertical Extension 10" comes fully assembled and ready to use. This product is 100% cross-compatible with the System 3R Macro OEM system. Vertical extension with QuickChuck.
MaxxDesign Exclusive Features:
- Precision ground to ensure uniform height. This guarantees that when using multiple extensions, they all have the same height.
- Height accuracy is 0.008 mm (0.0003"), and XY accuracy is 0.002 mm.
Product Specifics
- Clamping Type: QuickChuck
- Clamping Force: 4 kN
- Drawbar/Spigot required: MM-DRWBR101
- Chuck Included: MM-QC54R000
- Reference Element Included: MM-PA54W006
- Included Items: MX-ACMTX001
- Repair/Maintenance Kit: MM-RKQCX001
Product Details
| Product Name | MaxxMacro 54 Aluminum Manual QuickChuck Vertical Extension 10" |
| SKU [Old SKU] | MM-QCVEA010 [MX-3RMIN-10] |
| System | MaxxMacro (System 3R 100% Cross-Compatible) |
| Cross-Compatible | [3R-602.27-1, 3R-600.24-S, 3R-652.2, 3R-90476.01, 3R-90476.02] |
| System Repeatability | 0.002mm |
| Material | Aluminum |
| Weight | 2.56 kg | 5.64 lb |
Shipping & Delivery
Items are shipped direct from the Manufacturer or Distributor listed.
