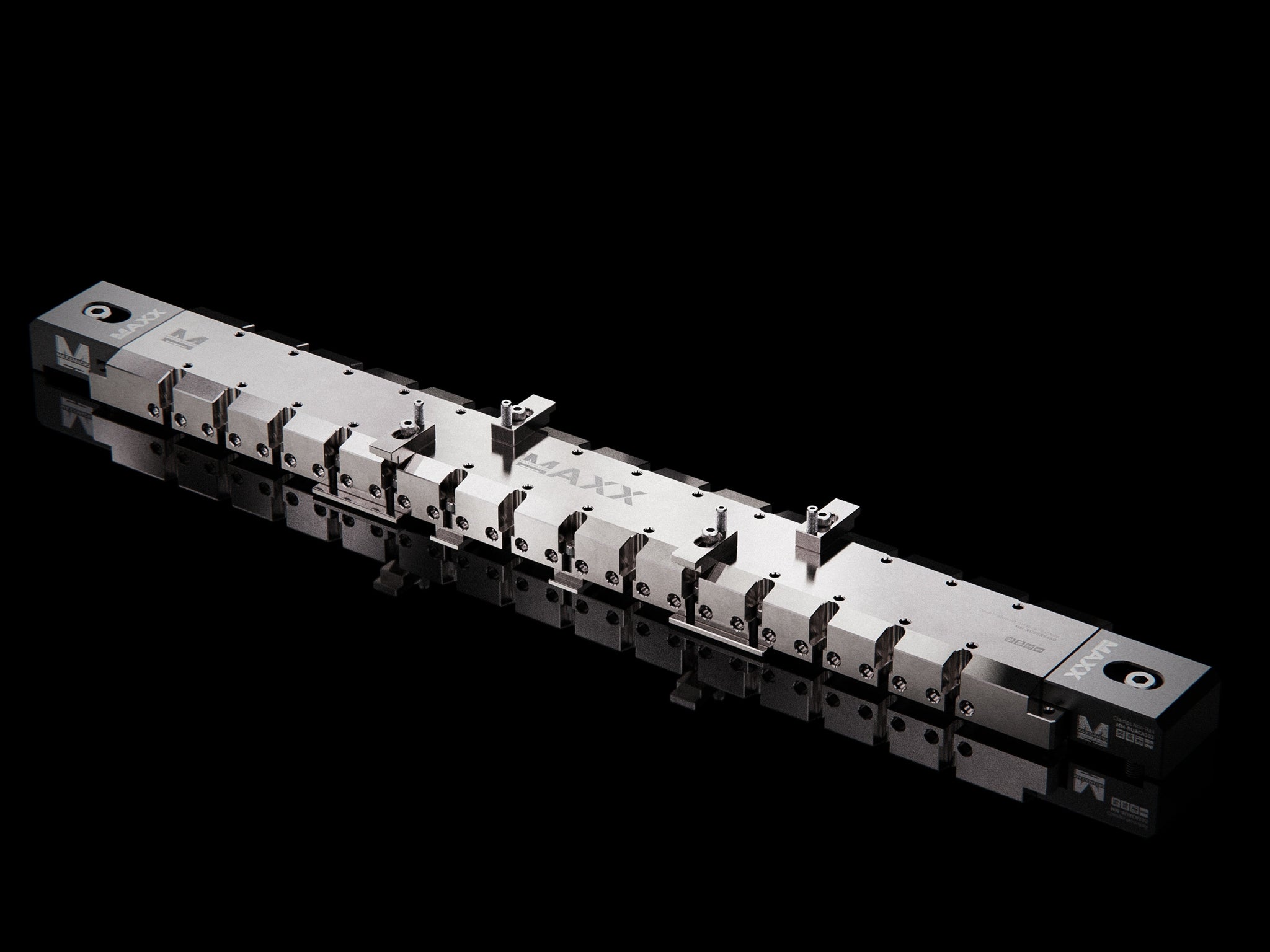

MaxxMacro 239445 Double Side MXRuler WEDM 445mm

MaxxMacro 239445 Double Side MXRuler WEDM 445mm comes fully assembled and ready to use. This product is 100% cross-compatible with the System 3R Macro OEM system.

MaxxDesign Exclusive Features:

• MXRuler's are available in various lengths to match different machines.
• High quality materials: Full rust proof design.
• Built-in height adjustment
• 86mm version: This is a more rigid design with upgraded width from 60mm to 86mm wide and a thicker height from 30mm to 36mm height
• Compatible with any reference element, choose the correct one according to your machine. If you opt for a reference element, also pick up the Sliding Clamps: MaxxMacro A2392 MXRuler WEDM 86mm Clamps
• The MXRuler is compatible with multiple accessories, and the dovetail reference elements serve to mount not only the ruler. Check out the full range of accessories here: MaxxMacro WEDM Accessories and Vises
• Check out our MaxxMacro MXRuler Basic Set Up video: MaxxMacro Wire EDM Basic Setup Ruler Vise and WEDM Kit

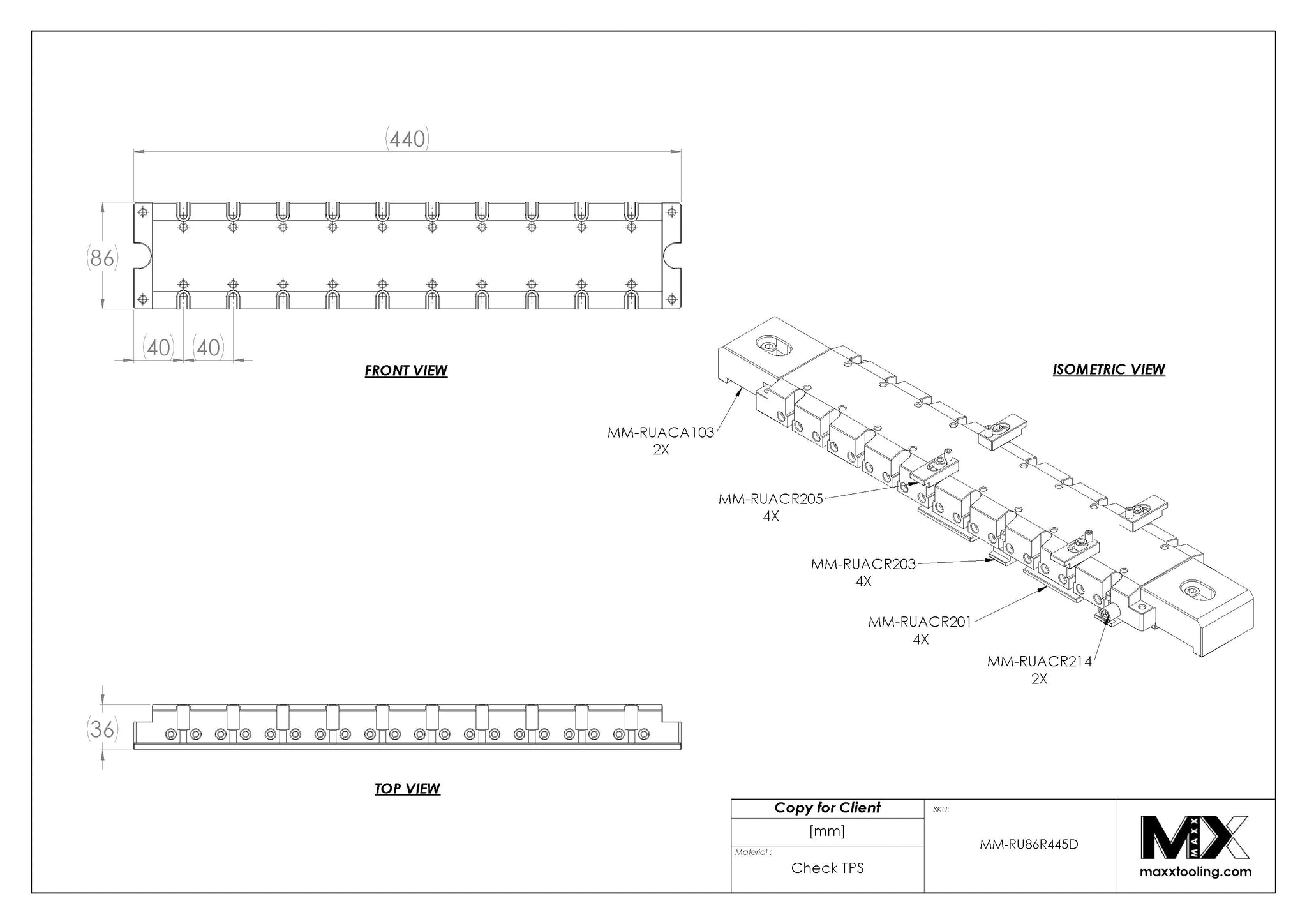

Included Items

The MaxxMacro Double Side MXRuler includes the following items:

• 1 MaxxMacro Double Side MXRuler 86mm
• 2 MaxxMacro Ruler Eccentric Endstop (MM-RUACR214)
• 2 pieces of MaxxMacro MXRuler A239 WEDM Clamps non-rail (MM-RUACA103)
• 4 pieces of MaxxMacro MXRuler 23922 WEDM Stepped Support Tab (MM-RUACR203)
• 4 pieces of MaxxMacro MXRuler 23925 WEDM Standard 60mm Support Tab (MM-RUACR201)
• 4 pieces of MaxxMacro MXRuler 239241 WEDM Basic Toe Clamps (MM-RUACR205)

Machine Compatibility

Fits the following machines and more. Some machine applications may not be referenced below. Please contact us if you have any doubts.

Horizontal setup:

• Mitsubishi MP1200
• Mitsubishi MV1200R
• Mitsubishi MD Pro 3
• Mitsubishi NA12
• Mitsubishi NA1200
• Mitsubishi NA1200P
• Mitsubishi MV1200S
• Charmilles RoboFil 330

• Excetek V400G

• Fanuc alpha C400iB
• Fanuc alpha C400iC

• Sodick AL400G
• Sodick AL400P
• Sodick ALC400G
• Sodick ALN400G
• Sodick ALN400Q
• Sodick VL400Q
• Sodick AG400L
• Sodick AQ400L
• Sodick SL400G
• Sodick SL400Q
• Sodick SLC400G

Vertical setup:

• Fanuc alpha 1iD
• Fanuc alpha 1iDP
• Fanuc alpha 1iE
• Fanuc alpha C600iA
• Fanuc alpha C600iB
• Fanuc alpha C600iC
• Mitsubishi BA24
• Mitsubishi NA24
• Mitsubishi NA2400
• Mitsubishi NA2400P
• Mitsubishi MP2400
• Mitsubishi MV2400R / R Z+
• Mitsubishi MV2400S Z+

• Makino DUO64
• Makino SP64 (yr 2005-)
