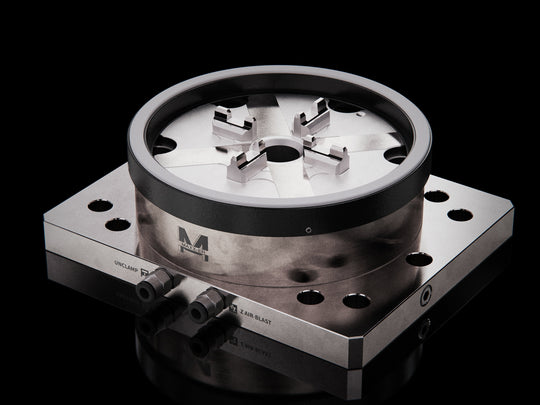

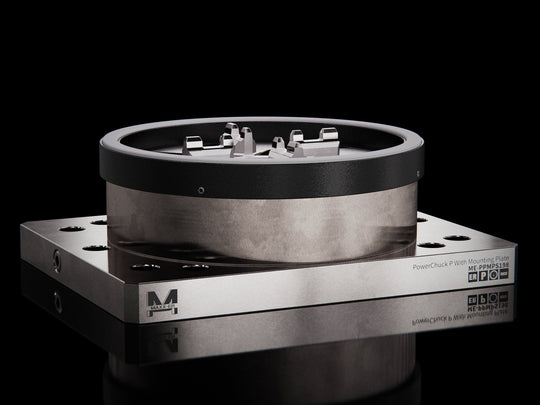

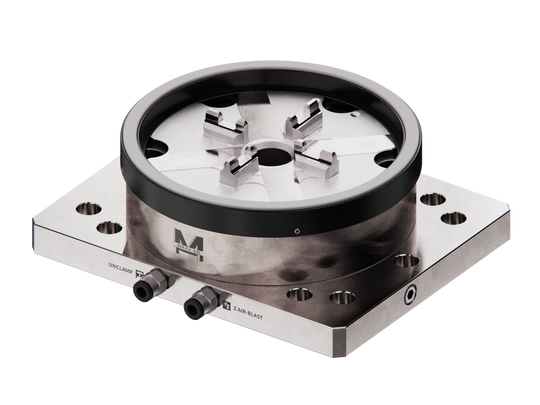

Maxx-ER 024312 PowerChuck P Stainless Chuck With Mouting Plate 158x198mm

Maxx-ER 024312 PowerChuck P Stainless Chuck With Mouting Plate 158x198mm comes fully assembled and ready to use. This product is 100% cross-compatible with the Erowa OEM system.

MaxxDesign Exclusive Features:

• High quality materials.
• 100% cross-compatible with OEM system

Product Information:

Maxx-ER PowerChuck P 24312 Pneumatic Chuck 158x198 is 100% cross compatible with Erowa PowerChuck P ER-024312 Compatible Pneumatic Chuck 158x198

• Includes sealing ring.
• Accepts P Pallets, 100, 50 and Gplates
• Indexing: 4x90° divisible
• Repeatability: 0.002 mm (0.00008“)

• Extra-flat version: Z-height 54 mm.

The mounting plate can be customized to suit your exact specific needs
