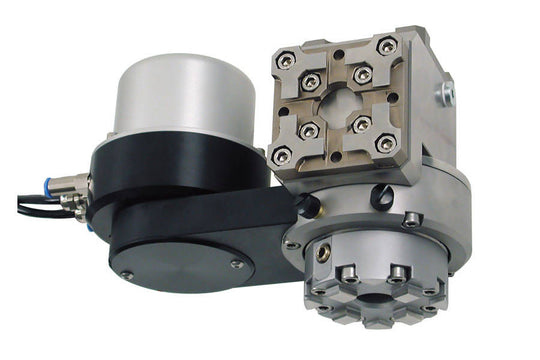

System 3R 3R-6.600-VHS, Rotating spindle, Macro

$37,764.00 $0.00

System 3R
   For mounting in a Macro chuck. Vertical mounting in die-sinking EDM machines and horizontal mounting in wire EDM machines. Flushing via flushin...
SKU: 3R-6.600-VHSCategories: Sinker EDM Tooling, System 3R Tooling, Wire EDM Tooling Tags: 3R-6.600-VHS,Macro,Sinker EDM,System 3R Wire EDM,WEDM,
Description





For mounting in a Macro chuck. Vertical mounting in die-sinking EDM machines and horizontal mounting in wire EDM machines.

  • Flushing via flushing connection
  • Speed range 60-1500 rev/min
  • Control unit included
  • Required drawbar 3R-605.2, but 3R-605.2RS in wire EDM machines
  • Rust-resistant
  • Immersible
  • Maximum electrode weight 5 kg
  • Maximal flushing pressure through the chuck: 40 bar
  • Weight 9.5 kg
