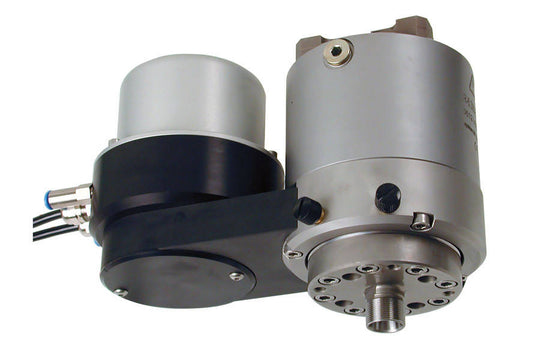

System 3R 3R-6.300-EHS16, Rotating spindle, Macro

$35,116.00 $0.00

System 3R
 For clamping in a vertical Macro chuck. Flushing via flushing connection. Control unit included Drawbar depends on chosen chuck Rust-resistant Imm...
SKU: 3R-6.300-EHS16Categories: MaxxMacro® WEDM Wire EDM Tooling, Sinker EDM Tooling, System 3R Tooling, Wire EDM Tooling Tags: 3R-6.300-EHS16,Macro,Sinker EDM,System 3R Wire EDM,WEDM,
Description



For clamping in a vertical Macro chuck.

  • Flushing via flushing connection.
  • Control unit included
  • Drawbar depends on chosen chuck
  • Rust-resistant
  • Immersible
  • Speed range 60-2000 rev/min
  • Maximum flushing pressure 80 bar
  • Weight 10 kg.

 Recommended collet sets:

Make: Balzer
Collet set: EHS16
Size (mm): Ø0.09-3
Nut M19x1: Integral

Make: Regofix
Collet set: ER16, ER16-UP
Size (mm): Ø0.5-10
Nut M19x1: ERM16, ERMC16, ER16 MS

Make: Tecnopinz
Collet set: ETS16
Size (mm): Ø1.25-10
Nut M19x1: ETS16,2
