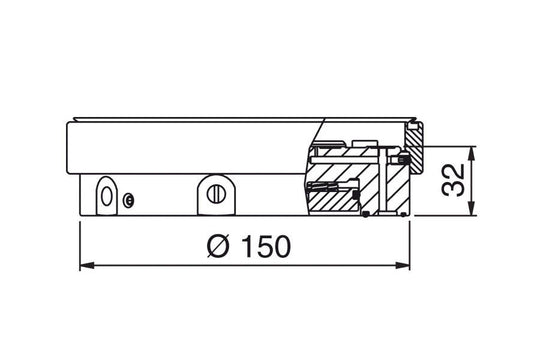

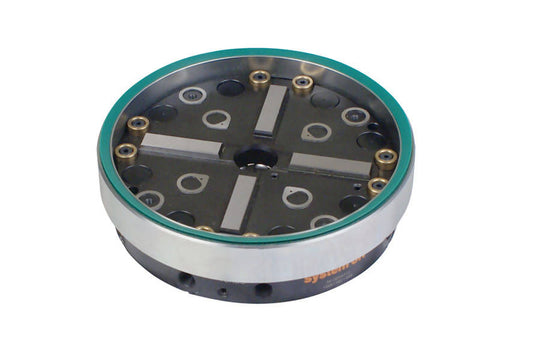

System 3R 3R-SP26712, Pneumatic chuck, MacroMagnum

$9,071.00 $0.00

System 3R
  For permanent mounting on the machine table. Supplied with drawbar 3R-605.2 Required air pressure 6 ±1 bar Fixed index positions 4x90º Flushing ...
SKU: 3R-SP26712Categories: Sinker EDM Tooling, System 3R Chucks, System 3R Magnum, System 3R Tooling Tags: 3R-SP26712,MacroMagnum,Sinker EDM,
Description



For permanent mounting on the machine table.

  • Supplied with drawbar 3R-605.2
  • Required air pressure 6 ±1 bar
  • Fixed index positions 4x90º
  • Flushing duct
  • Air-blast cleaning of the Z-references
  • Sealing ring
  • Turbo locking
  • Weight 5 kg
