System 3R 3R-602.4.1, Pneumatic chuck, Macro

$12,173.00 $0.00

System 3R
Pneumatic chuck for Macro holder. Required drawbar 3R-605.1RS Clamping force 6000 N. Fixed index positions 4x90° Air-blast cleaning of Z-references...
SKU: 3R-602.4.1Categories: MaxxMacro® WEDM Wire EDM Tooling, Sinker EDM Tooling, System 3R Chucks, System 3R Tooling, Wire EDM Tooling Tags: 3R-602.4.1,Pneumatic chuck,System 3R Wire EDM,WEDM,
Description

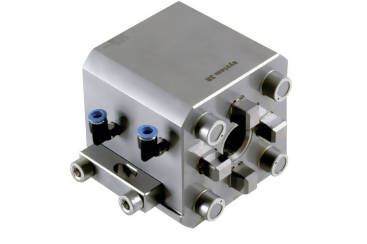

Pneumatic chuck for Macro holder.

  • Required drawbar 3R-605.1RS
  • Clamping force 6000 N.
  • Fixed index positions 4x90°
  • Air-blast cleaning of Z-references
  • Weight 4.1 kg.
