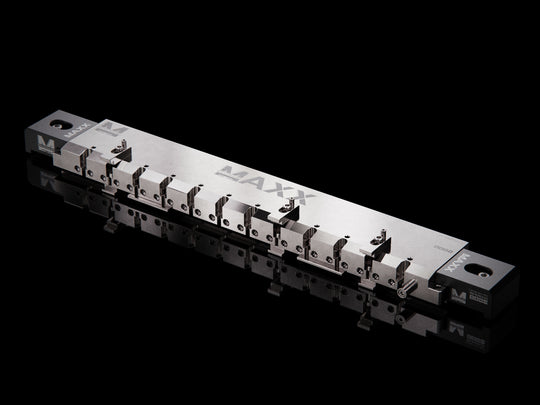

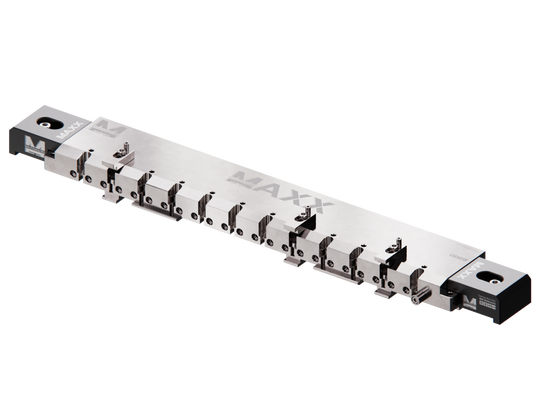

MaxxMacro 239545 MXRuler WEDM 545mm

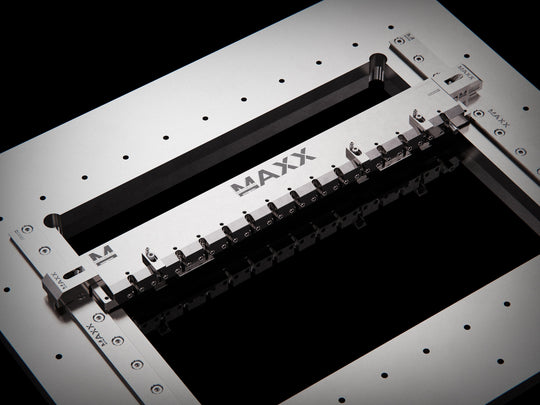

MaxxMacro WEDM MXRuler system has been developed for clamping medium-sized and large workpieces in machines with a parallel or U-shaped machine table, as well as for machines with a frame table. With the aid of MXRuler, rectangular or round workpieces, lightweight or heavy, large or small, are located on the machine zero line, without risk of collision. This product is 100% cross-compatible with the System 3R Macro OEM system.

MaxxDesign Exclusive Features:

• MXRuler's are available in various lengths to match different machines.
• High quality materials: Full rust proof design.
• Built-in height adjustment
• 86mm version: This is a more rigid design with upgraded width from 60mm to 86mm wide and a thicker height from 30mm to 36mm height
• Compatible with any reference element, choose the correct one according to your machine. If you opt for a reference element, also pick up the Sliding Clamps: MaxxMacro A2392 MXRuler WEDM 86mm Clamps
• The MXRuler is compatible with multiple accessories, and the dovetail reference elements serve to mount not only the ruler. Check out the full range of accessories here: MaxxMacro WEDM Accessories and Vises
• Check out our MaxxMacro MXRuler Basic Set Up video: MaxxMacro Wire EDM Basic Setup Ruler Vise and WEDM Kit

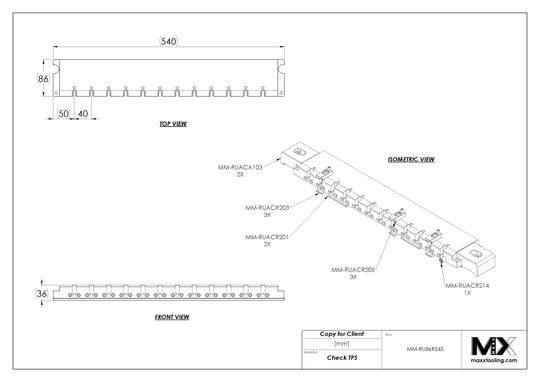

Included Items

The MaxxMacro MXRuler includes the following items:

• 1 MaxxMacro MXRuler 86mm
• 1 MaxxMacro Ruler Eccentric Endstop (MM-RUACR214)

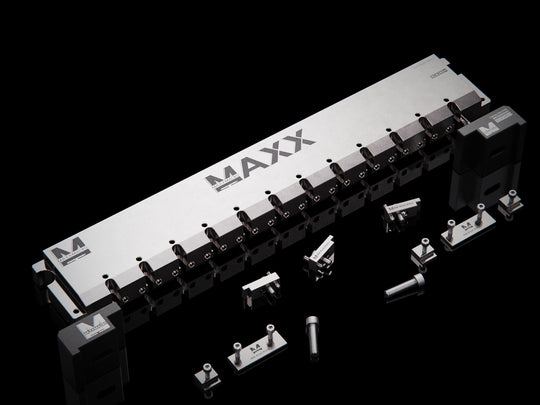

• 2 pieces of MaxxMacro MXRuler A239 WEDM Clamps non-rail (MM-RUACA103)
• 3 pieces of MaxxMacro MXRuler 23922 WEDM Stepped Support Tab (MM-RUACR203)
• 2 pieces of MaxxMacro MXRuler 23925 WEDM Standard 60mm Support Tab (MM-RUACR201)
• 3 pieces of MaxxMacro MXRuler 239241 WEDM Basic Toe Clamps (MM-RUACR205)

Machine Compatibility

Fits the following machines and more. Some machine applications may not be referenced below. Please contact us if you have any doubts.

Horizontal setup:

• Excetek V500G

• Mitsubishi FA20-S Advance

• Mitsubishi FA20

• Mitsubishi FA20SM (old ver.)

• Mitsubishi FX20 (old ver.)

• Mitsubishi PA20

• Mitsubishi QA20

• Mitsubishi SX2

• Mitsubishi SX20

• Mitsubishi FA30

• Mitsubishi FX30

• Mitsubishi FX30K

• Seibu M50B

• Seibu MM50B

• Seibu 1JMM50B

Vertical setup:

• Mitsubishi FA30-S Advance

• Seibu MM75B
