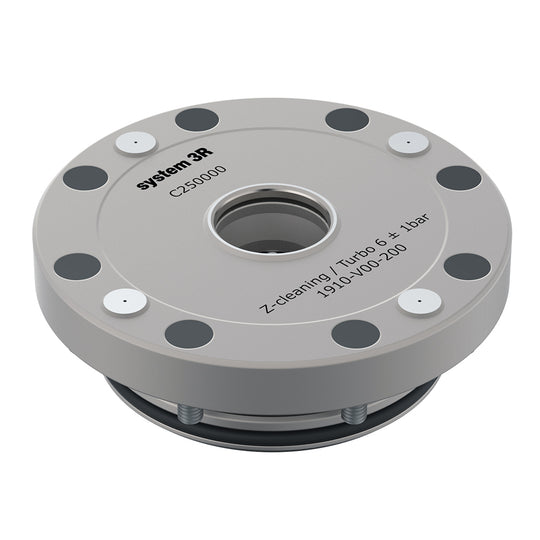

System 3R C250000 Built-in chuck, Delphin Compact EDM Tooling Warehouse

System 3R C250000 Built-in chuck, Delphin Compact

$2,348.00

System 3R
Clamping force with 6 bar turbo pressure: up to 15 kN Holding force: 60 kN Air pressure open: 4-10 bar Oil pressure open: Max 30 bar Lift-up funct...
SKU: C250000Categories: System 3R Chucks, System 3R Tooling Tags:
Description
  • Clamping force with 6 bar turbo pressure: up to 15 kN
  • Holding force: 60 kN
  • Air pressure open: 4-10 bar
  • Oil pressure open: Max 30 bar
  • Lift-up function pneumatic: 150 kg at 6 bar, lift-up 1 mm
  • Lift-up function hydraulic: 1 000 kg at 30 bar, lift-up 1 mm
  • Repeatability: within 0.003 mm
  • Material: hardened stainless steel
