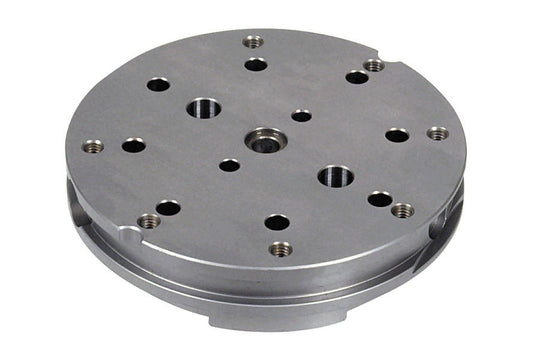

System 3R 3R-601.52, Pallet, hardened, Ø116 mm, MacroHighPerformance

$4,016.00 $0.00

System 3R
Hardened, with 3Refix holes and clearance holes for ten fixing screws. 3Refix Ø10 mm Adapted for automatic changing Ready for code carrier Paralle...
SKU: 3R-601.52Categories: Sinker EDM Tooling, System 3R Pallet, System 3R Tooling Tags: 3R-601.52,MacroHighPerformance,Sinker EDM,
Description

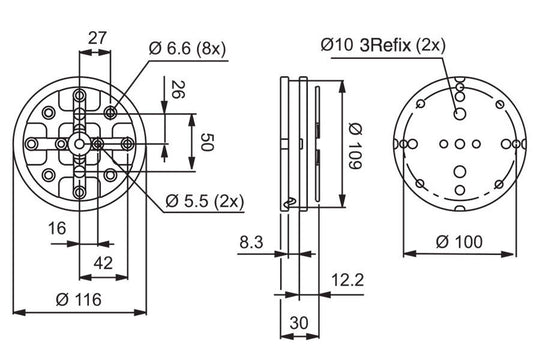

Hardened, with 3Refix holes and clearance holes for ten fixing screws.

  • 3Refix Ø10 mm
  • Adapted for automatic changing
  • Ready for code carrier
  • Parallel-ground top and bottom faces
  • Fixed positions 4x90°
  • Rust-resistant
  • Weight 1.9 kg.
