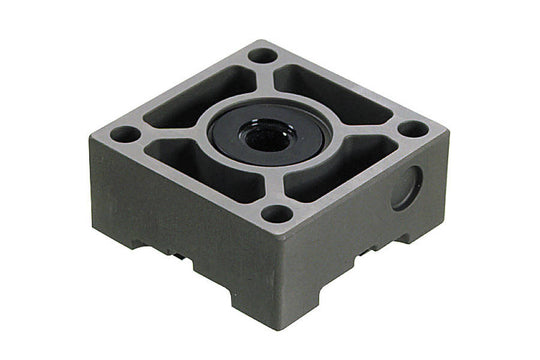

System 3R 3R-601.1E-P, Pallet, hardened, 70x70 mm, MacroHighPerformance

$3,554.00 $0.00

System 3R
Hardened, with clearance holes for four fixing screws. Adapted for automatic changing Ready for code carrier Fixed index positions 4x90° Rust-resi...
SKU: 3R-601.1E-PCategories: Sinker EDM Tooling, System 3R Pallet, System 3R Tooling Tags: 3R-601.1E-P,MacroHighPerformance,Sinker EDM,
Description

Hardened, with clearance holes for four fixing screws.

  • Adapted for automatic changing
  • Ready for code carrier
  • Fixed index positions 4x90°
  • Rust-resistant
  • Flushing duct
  • Supplied in sets of 5
  • Weight per set 3.2 kg.
