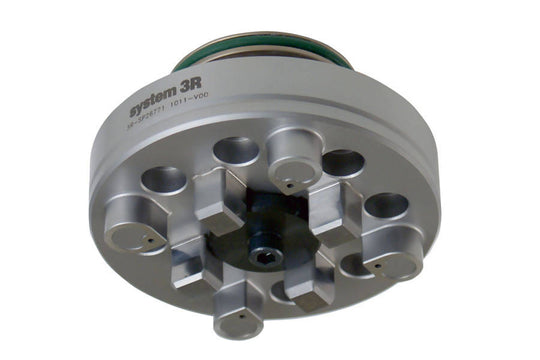

System 3R 3R-SP26771-RS, Pneumatic chuck, MacroHighPerformance

$8,384.00

System 3R
   Pneumatic chuck for building-in, for example in a fixture, dividing head or B-axis. Carbide XY-references Required drawbar 3R-605.1 or 3R-605.4...
SKU: 3R-SP26771-RSCategories: Sinker EDM Tooling, System 3R Chucks, System 3R Tooling, Wire EDM Tooling Tags: 3R-SP26771-RS,MacroHighPerformance,Sinker EDM,System 3R Wire EDM,WEDM,
Description

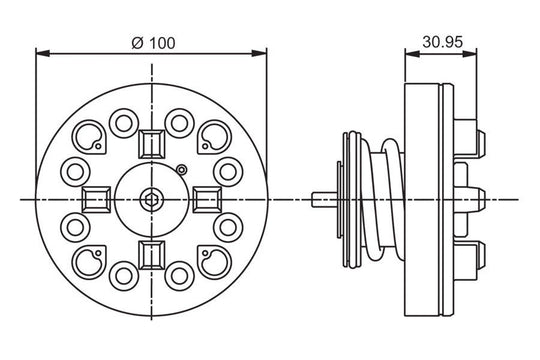

Pneumatic chuck for building-in, for example in a fixture, dividing head or B-axis.

  • Carbide XY-references
  • Required drawbar 3R-605.1 or 3R-605.4
  • Required air pressure 6±1 bar
  • Fixed index positions 4x90°
  • Air-blast cleaning of Z-references
  • Turbo locking
  • Rust-resistant
  • Weight 1.8 kg.
