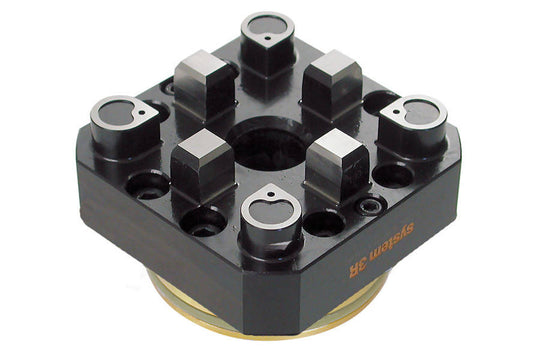

System 3R 3R-SP25442, Pneumatic chuck, MacroStandard

$5,120.00

System 3R
 Pneumatic chuck for building-in, for example in a fixture, dividing head or B-axis. Required drawbar 3R-605.1, 3R-605.4. Required air pressure 6±1...
SKU: 3R-SP25442Categories: Sinker EDM Tooling, System 3R Chucks, System 3R Tooling Tags: 3R-SP25442,MacroStandard,Sinker EDM,
Description



Pneumatic chuck for building-in, for example in a fixture, dividing head or B-axis.

  • Required drawbar 3R-605.1, 3R-605.4.
  • Required air pressure 6±1 bar.
  • Fixed index positions 4x90°.
  • Turbo locking.
  • Weight 1.8 kg.
Reviews
Shipping & Delivery
Items are shipped direct from the Manufacturer or Distributor listed.
