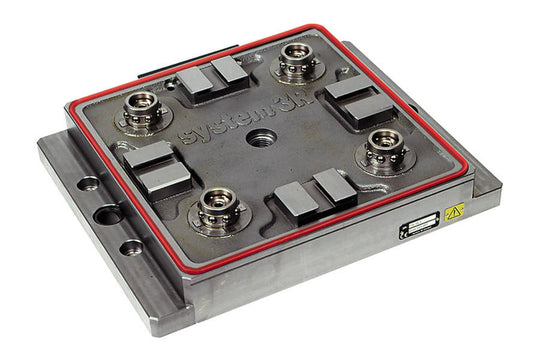

System 3R 3R-770.19-1, Pneumatic chuck, Dynafix

$23,695.00

System 3R
 Pneumatic table chuck with 3Refix-holes. 3Refix Ø20 mm Required air pressure 6±1 bar Fixed index positions 4x90° Recommended actuator 3R-611.4 or ...
SKU: 3R-770.19-1Categories: Sinker EDM Tooling, System 3R Chucks, System 3R Tooling Tags: 3R-770.19-1,Dynafix,Sinker EDM,System 3R Dynafix,
Description



Pneumatic table chuck with 3Refix-holes.

  • 3Refix Ø20 mm
  • Required air pressure 6±1 bar
  • Fixed index positions 4x90°
  • Recommended actuator 3R-611.4 or 3R-611.2
  • Air-blast cleaning of the Z-references
  • Weight 24.5 kg
