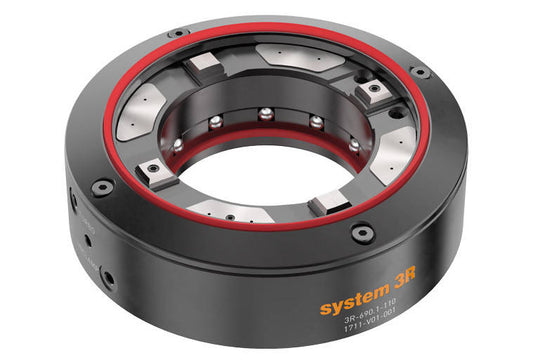

System 3R 3R-690.1-142, Pneumatic chuck, Matrix 142
$14,679.00
Chuck for permanent mounting on the machine table or into a PM press.
Fixed index positions 4x90°
Hardened references
Locking force 12000 N
Permi...
SKU: 3R-690.1-142Categories:
Sinker EDM Tooling,
System 3R Chucks,
System 3R Tooling
Tags: 3R-690.1-142,Matrix 142,Sinker EDM,

Description
Chuck for permanent mounting on the machine table or into a PM press.
- Fixed index positions 4x90°
- Hardened references
- Locking force 12000 N
- Permissible torque 300 Nm
- Required drawbar 3R-695.2-142
- Required air pressure 6±1 bar.
- Weight 7 kg.
