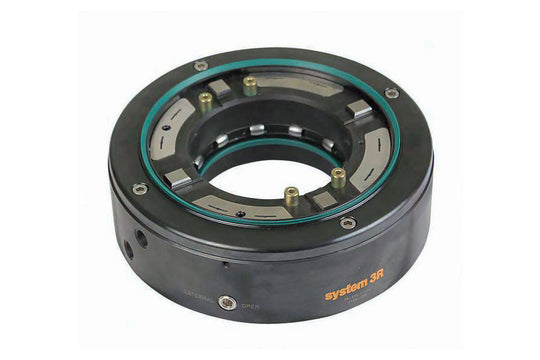

System 3R 3R-690.1-142-N, Pneumatic chuck, MatrixNano 142

$20,781.00 $0.00

System 3R
     Chuck for permanent mounting on the machine table or into a PM press.Note: Extreme repetition accuracy within 0.0007 mm. Fixed index position...
SKU: 3R-690.1-142-NCategories: Sinker EDM Tooling, System 3R Chucks, System 3R Tooling Tags: 3R-690.1-142-N,MatrixNano 142,Sinker EDM,
Description







Chuck for permanent mounting on the machine table or into a PM press.
Note: Extreme repetition accuracy within 0.0007 mm.

  • Fixed index positions 4x90°
  • Hardened references
  • Locking force 12000 N
  • Permissible torque 300 Nm
  • Required drawbar 3R-695.2-142
  • Required air pressure 6±1 bar.
  • Weight 7 kg.
