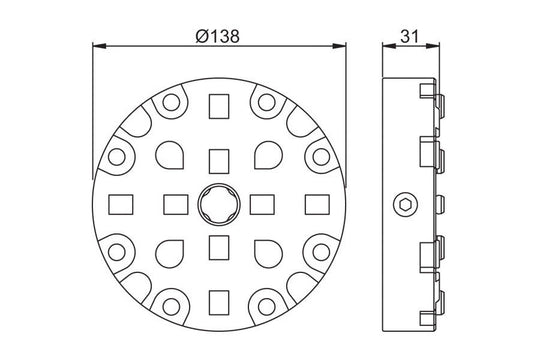

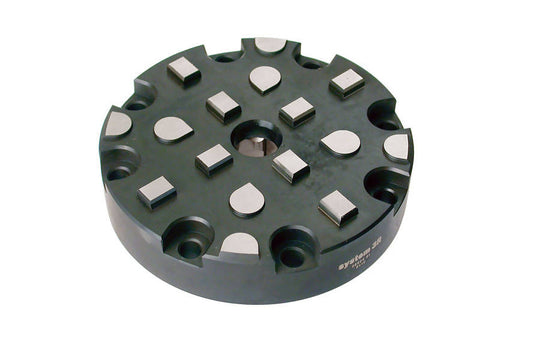

System 3R 3R-680.24-S, Manual chuck, MacroMagnum

$5,205.00 $0.00

System 3R
 For permanent mounting on the machine spindle or table.Note: Master pallet 3R-606.1 or 3R-686.1-HD is required at installation. Required drawbar 3...
SKU: 3R-680.24-SCategories: Sinker EDM Tooling, System 3R Chucks, System 3R Magnum, System 3R Tooling Tags: 3R-680.24-S,MacroMagnum,Sinker EDM,
Description



For permanent mounting on the machine spindle or table.
Note: Master pallet 3R-606.1 or 3R-686.1-HD is required at installation.

  • Required drawbar 3R-605.2.
  • Recommended tightening torque: Macro pallet 4 Nm
  • Recommended tightening torque: MacroMagnum pallet 10 Nm
  • Fixed index positions 4x90°
  • Weight 5 kg.
