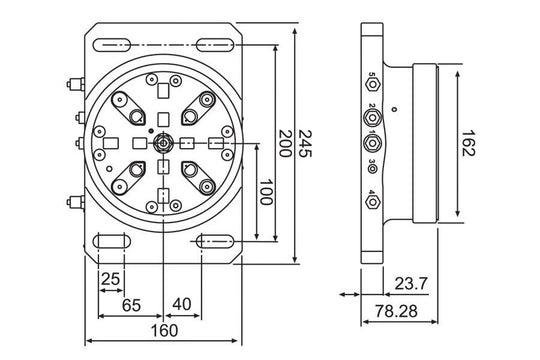

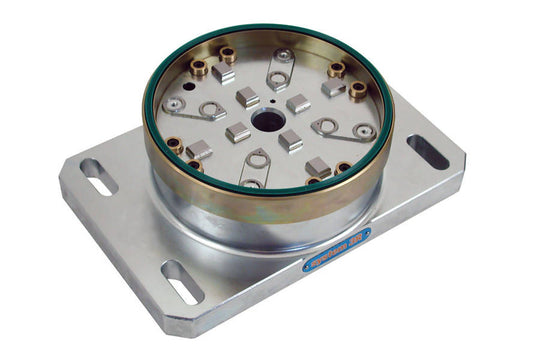

System 3R 3R-680.10-2A, Pneumatic table chuck, MacroMagnum

$16,439.00 $0.00

System 3R
Pneumatic table chuck for chuck adapter. Required drawbar 3R-605.1 or 3R-605.4 Required air pressure 6±1 bar Fixed index positions 4x90° Air-blast...
SKU: 3R-680.10-2ACategories: Sinker EDM Tooling, System 3R Chucks, System 3R Magnum, System 3R Tooling Tags: 3R-680.10-2A,MacroMagnum,Sinker EDM,
Description

Pneumatic table chuck for chuck adapter.

  • Required drawbar 3R-605.1 or 3R-605.4
  • Required air pressure 6±1 bar
  • Fixed index positions 4x90°
  • Air-blast cleaning of Z-references on chuck and chuck adapter
  • Sealing ring
  • Turbo-lockings
  • Weight 12 kg
