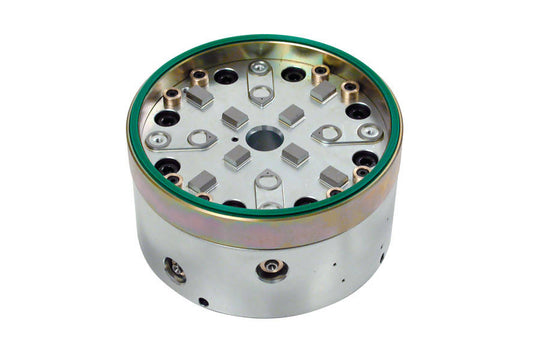

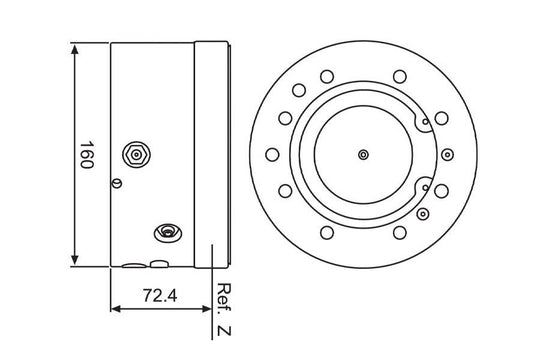

System 3R 3R-680.1-2, Pneumatic chuck, MacroMagnum

$14,004.00 $0.00

System 3R
 Pneumatic chuck for machine spindles and lathes. Opened/locked by an air gun against a valve on the side, or alternatively on the back, of the chu...
SKU: 3R-680.1-2Categories: Sinker EDM Tooling, System 3R Chucks, System 3R Magnum, System 3R Tooling Tags: 3R-680.1-2,MacroMagnum,Sinker EDM,
Description



Pneumatic chuck for machine spindles and lathes. Opened/locked by an air gun against a valve on the side, or alternatively on the back, of the chuck.

  • Required drawbar 3R-605.1 or 3R-605.4
  • Required air pressure 6 ±1 bar.
  • Fixed index positions 4x90°
  • Sealing ring
  • Turbo-locking of MacroMagnum pallets
  • Weight 9 kg.
