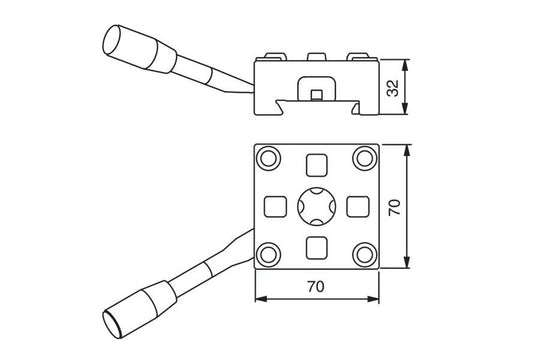

System 3R 3R-602.27-1, Manual chuck adapter, Macro EDM Tooling Warehouse
System 3R 3R-602.27-1, Manual chuck adapter, Macro EDM Tooling Warehouse

System 3R 3R-602.27-1, Manual chuck adapter, Macro

$5,262.00 $0.00

System 3R
Chuck adapter with lever for Macro holder in the WEDM system. Supplied with drawbar.Note: When mounted on the reference element, the two clamping j...
SKU: 3R-602.27-1Categories: Sinker EDM Tooling, System 3R Chucks, System 3R Tooling, Wire EDM Tooling Tags: 3R-602.27-1,Manual chuck,System 3R Wire EDM,WEDM,
Description

Chuck adapter with lever for Macro holder in the WEDM system. Supplied with drawbar.

Note: When mounted on the reference element, the two clamping jaws must be tightened with the same torque, 4 Nm.

  • Required drawbar 3R-605.27RS
  • Clamping force 6000 N
  • Fixed index positions 4x90º
  • Weight 1.1 kg.
