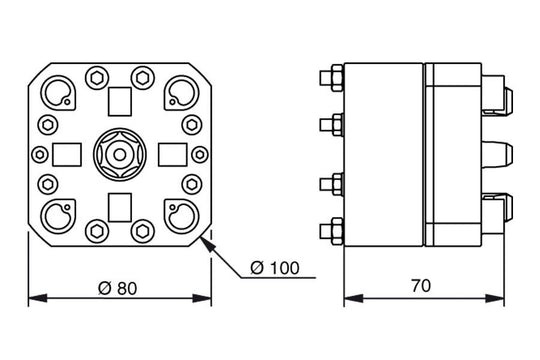

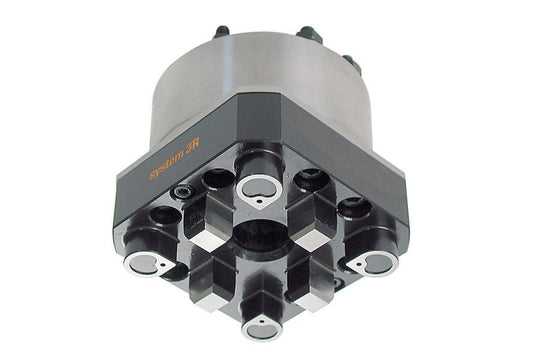

System 3R 3R-600.86-30, Pneumatic chuck, machine-adapted, MacroStandard

Pneumatic chuck for mounting directly on the machine spindle.

Note: When ordering state machine make and type. Note: X/Y/Z references of hardened and ground steel, larger Z-references.

• Four M6 clearance holes, 67x20 mm and four M5 clearance holes, 63x26 mm
• Required drawbar 3R-605.1
• Required air pressure 6±1 bar
• Fixed index positions 4x90°
• Air-blast cleaning of the Z-references
• Flushing connection
• Turbo locking
• Weight 1.8 kg
