System 3R 3R-600.23-S, Manual chuck, MacroStandard

$2,810.00 $0.00

System 3R
Cast chuck with mounting flange for mounting on the machine spindle or in a fixture. Tightening torque 6 Nm Required drawbar 3R-605.2 Fixed index p...
SKU: 3R-600.23-SCategories: Sinker EDM Tooling, System 3R Chucks, System 3R Tooling Tags: 3R-600.23-S,MacroStandard,Sinker EDM,
Description

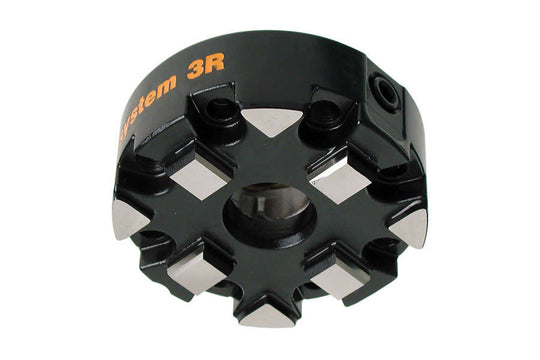

Cast chuck with mounting flange for mounting on the machine spindle or in a fixture.

  • Tightening torque 6 Nm
  • Required drawbar 3R-605.2
  • Fixed index positions 4x90°
  • Flushing connection
  • Weight 0.7 kg.
