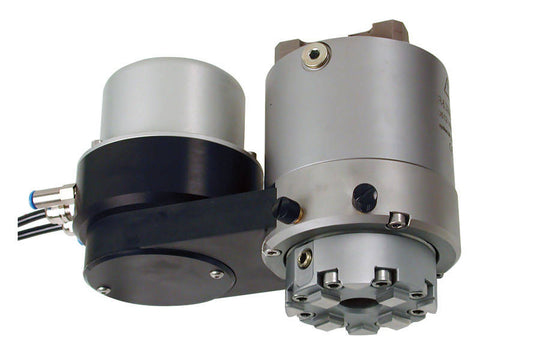

System 3R 3R-6.600-VS, Rotating spindle, Macro

For vertical mounting in EDM machines with Macro chuck. Speed range 60-2000 rev/min Flushing via flushing connection Control unit included Requ...
SKU: 3R-6.600-VSCategories: Sinker EDM Tooling, System 3R Tooling Tags: 3R-6.600-VS,Macro,Sinker EDM,
Description

For vertical mounting in EDM machines with Macro chuck.

  • Speed range 60-2000 rev/min
  • Flushing via flushing connection
  • Control unit included
  • Required drawbar 3R-605.2, but 3R-605.2RS in wire EDM machines
  • Rust-resistant
  • Immersible
  • Maximum electrode weight 5 kg
  • Maximal flushing pressure through the chuck: 40 bar
  • Weight 9.5 kg.
