  2. System 3R 3R-460.83-2, Pneumatic chuck, MacroCombi

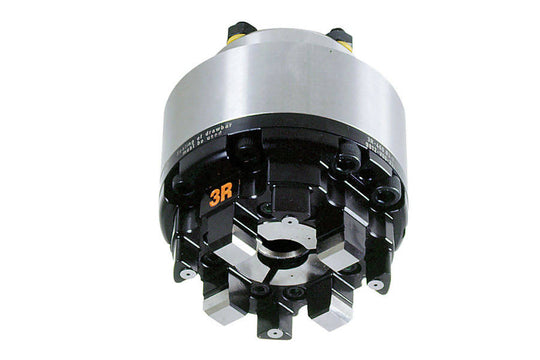

System 3R 3R-460.83-2, Pneumatic chuck, MacroCombi EDM Tooling Warehouse

System 3R 3R-460.83-2, Pneumatic chuck, MacroCombi

$9,325.00 $0.00

System 3R
Pneumatic chuck for mounting directly on the machine spindle. All X/Y/Z references in hardened and ground steel.Note: When ordering state machine m...
SKU: 3R-460.83-2Categories: Sinker EDM Tooling, System 3R Chucks, System 3R Tooling Tags: 3R-460.83-2,MacroCombi,Sinker EDM,
Description

Pneumatic chuck for mounting directly on the machine spindle. All X/Y/Z references in hardened and ground steel.

Note: When ordering state machine make and type.

  • Four M6 clearance holes 67x20 mm
  • Required drawbar for Macro holder 3R-405.16
  • Required drawbar for MacroJunior holder 3R-405.11
  • Required air pressure 6±1 bar
  • Air-blast cleaning of the Z-references
  • Flushing connection
  • Weight 2.1 kg.
