MaxxMacro 54 ER Collet Chuck ER16

Name: MaxxMacro 54 ER Collet Chuck ER16
Brand: Maxx Tooling
SKU: MM-CC54S016
Price: 990.0 USD
Availability: InStock

$990.00

Sold by: Maxx Tooling

MaxxMacro 54 ER Collet Chuck ER16 comes fully assembled and ready to use. This product is 100% cross-compatible with the System 3R Macro OEM sy...

SKU: MM-CC54S016Categories: MaxxMacro, Sinker EDM Tooling Tags: 3R-659.16P,3R-659.20P,3R-659.32P,3R-659.40P,54,Clamping,Collet Chuck,EDM,ER16,MaxxMacro,MaxxMacro Chuck,MaxxMacro Collet Chuck,MaxxMacro ER Collet Chuck,MaxxMacro Holder,Milling,MX-ER163R,Round,Stainless,System 3R,System 3R Collet Chuck,up to 100mm,

Description
Reviews
Shipping & Delivery

Description

MaxxMacro 54 ER Collet Chuck ER16 comes fully assembled and ready to use. This product is 100% cross-compatible with the System 3R Macro OEM system.

MaxxDesign Exclusive Features:

High quality materials.
100% cross-compatible with OEM system

Product Information:

MaxxMacro 54 ER Collet Chuck 65916P ER16 is 100% cross compatible with System 3R 3R-659.16P macro systems.

Chuck includes our MaxxMacro 54 440C performance pallet

MaxxMacro 54 performance Collet Chucks are precision machined for accuracy and durability ±0.015mm concentricity and .002mm repeatability

If you are robotically loading we can adapt this chuck to various grippers, stop buttons etc.

Includes Flushing though

Product Details:

Product Name	MaxxMacro 54 ER Collet Chuck ER16
SKU	MM-CC54S016 (MX-ER163R)

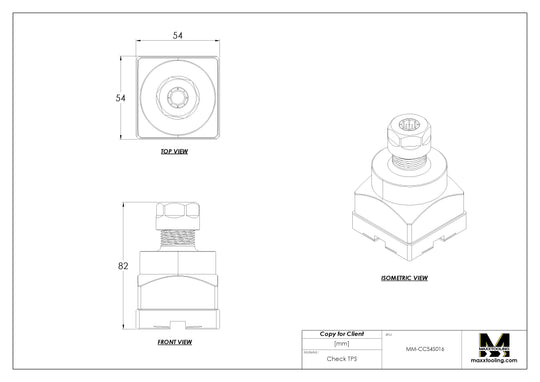

Pallet Included	See print
System	MaxxMacro (System 3R 100% Cross-Compatible)
Repeatability	0.002mm
Material	See above
Cross-Compatible	3R-659.16P, 3R-659.20P, 3R-659.32P, 3R-659.40P
Dimensions	-
Weight	-
