  2. MaxxMacro 70 Multi 6 Pneumatic Chuck 6001030 System
MaxxMacro 70 Multi 6 Pneumatic Chuck 6001030 System EDM Tooling Warehouse
MaxxMacro 70 Multi 6 Pneumatic Chuck 6001030 System EDM Tooling Warehouse
MaxxMacro 70 Multi 6 Pneumatic Chuck 6001030 System EDM Tooling Warehouse
MaxxMacro 70 Multi 6 Pneumatic Chuck 6001030 System EDM Tooling Warehouse

MaxxMacro 70 Multi 6 Pneumatic Chuck 6001030 System

$16,862.00

Maxx Tooling
MaxxMacro 70 Multi 6 Pneumatic Chuck 6001030 System comes fully assembled and ready to use. This product is 100% cross-compatible with the System 3...
SKU: MM-PCR2S006Categories: All MaxxMacro® Products, MaxxMacro, MaxxMacro® Chucks Manual and Pneumatic, MaxxMacro® Chucks Pneumatic, MaxxMacro® Electrode Holders, MaxxMacro® MaxxMagnum® Performance WorkHolding, Sinker EDM Tooling Tags: 70,Chuck,Chucking,MaxxMacro,Milling,Mounting,MultiChuck,MX-MM102X6,Pneumatic,Stainless,System 3R,System 3R Chuck,
Description

MaxxMacro 70 Multi 6 Pneumatic Chuck 6001030 System comes fully assembled and ready to use. This product is 100% cross-compatible with the System 3R Macro OEM system.

MaxxDesign Exclusive Features:

  • High quality materials.
  • 100% cross-compatible with OEM system

Product Information:

MaxxMacro 70 Pneumatic Six (6) Multi Chuck System is 100% cross compatible to System 3R Macro.

MaxxMacro 70 Pneumatic 6001030 Pneumatic Chucks come standard with Air Clean function

Chucks acuate in sets of 3 front or rear as set

For adequate clamping, we recommend maintaining a continuous pressure of 6 bar per chuck during unclamping. This should ensure optimal performance for your setup.

Product Details:

Product Name MaxxMacro 70 Multi 6 Pneumatic Chuck 6001030 System
SKU MM-PCR2S006 (MX-MM102X6)

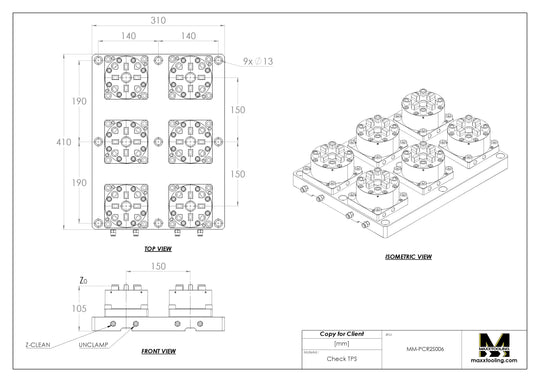

Pallet Included See print
System MaxxMacro (System 3R 100% Cross-Compatible)
Repeatability 0.002mm
Material See above
Cross-Compatible -
Dimensions -
Weight -
