MaxxMacro 70 Pneumatic Chuck 6001030 with Mounting Plate

$2,721.00

Maxx Tooling
MaxxMacro 70 Pneumatic Chuck 6001030 with Mounting Plate comes fully assembled and ready to use. This product is 100% cross-compatible with the Sys...
SKU: MM-PCMPS003Categories: All MaxxMacro® Products, MaxxMacro, MaxxMacro® Chucks Manual and Pneumatic, MaxxMacro® Chucks Pneumatic, MaxxMacro® MaxxMagnum® Performance WorkHolding, Sinker EDM Tooling Tags: 3R-600.10-30,3R-610.46-30,3R-610.46-3N,70,Chuck,Chucking,MaxxMacro,Milling,Mounting,MX-3RPN102,Pneumatic,Stainless,System 3R,System 3R Chuck,
Description

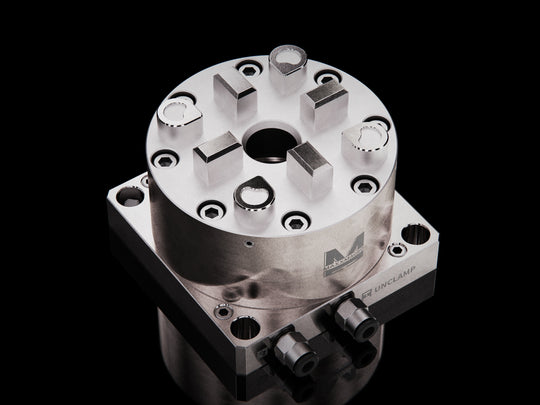

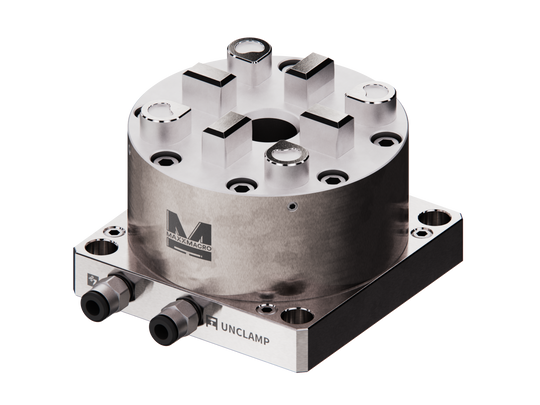

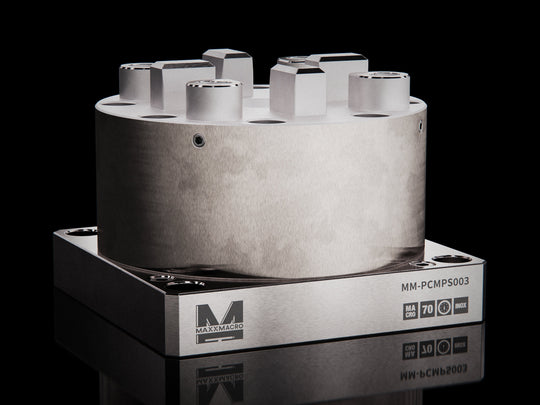

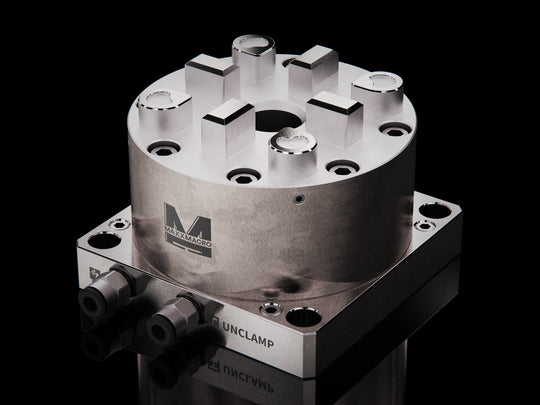

MaxxMacro 70 Pneumatic Chuck 6001030 with Mounting Plate comes fully assembled and ready to use. This product is 100% cross-compatible with the System 3R Macro OEM system. This chuck is perfectly suited to your automatic or automation requirements.

MaxxDesign Exclusive Features:

  • High quality materials: Full Stainless Steel design.

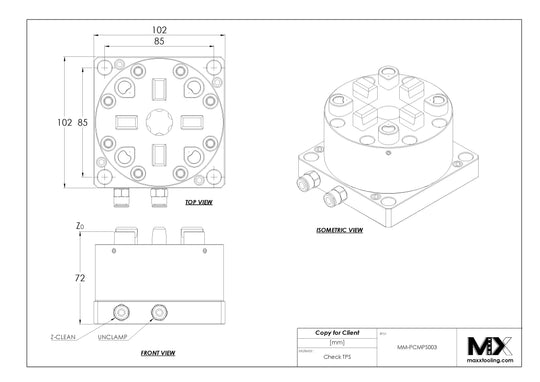

  • Mounting Plate: 102x102 mm base plate with jackscrews for adjustments.

Chuck Information

Product Details:

Product Name MaxxMacro 70 Pneumatic Chuck 6001030 with Mounting Plate
SKU MM-PCMPS003 (MX-3RPN102)
Pallet Included -
System MaxxMacro (System 3R 100% Cross-Compatible)
Repeatability 0.002mm
Material Stainless Steel 440C, HB57-60 - 420 Base Plate
Cross-Compatible 3R-600.10-30, 3R-610.46-30, 3R-610.46-3N
Dimensions 102x102x77 mm
Weight -
