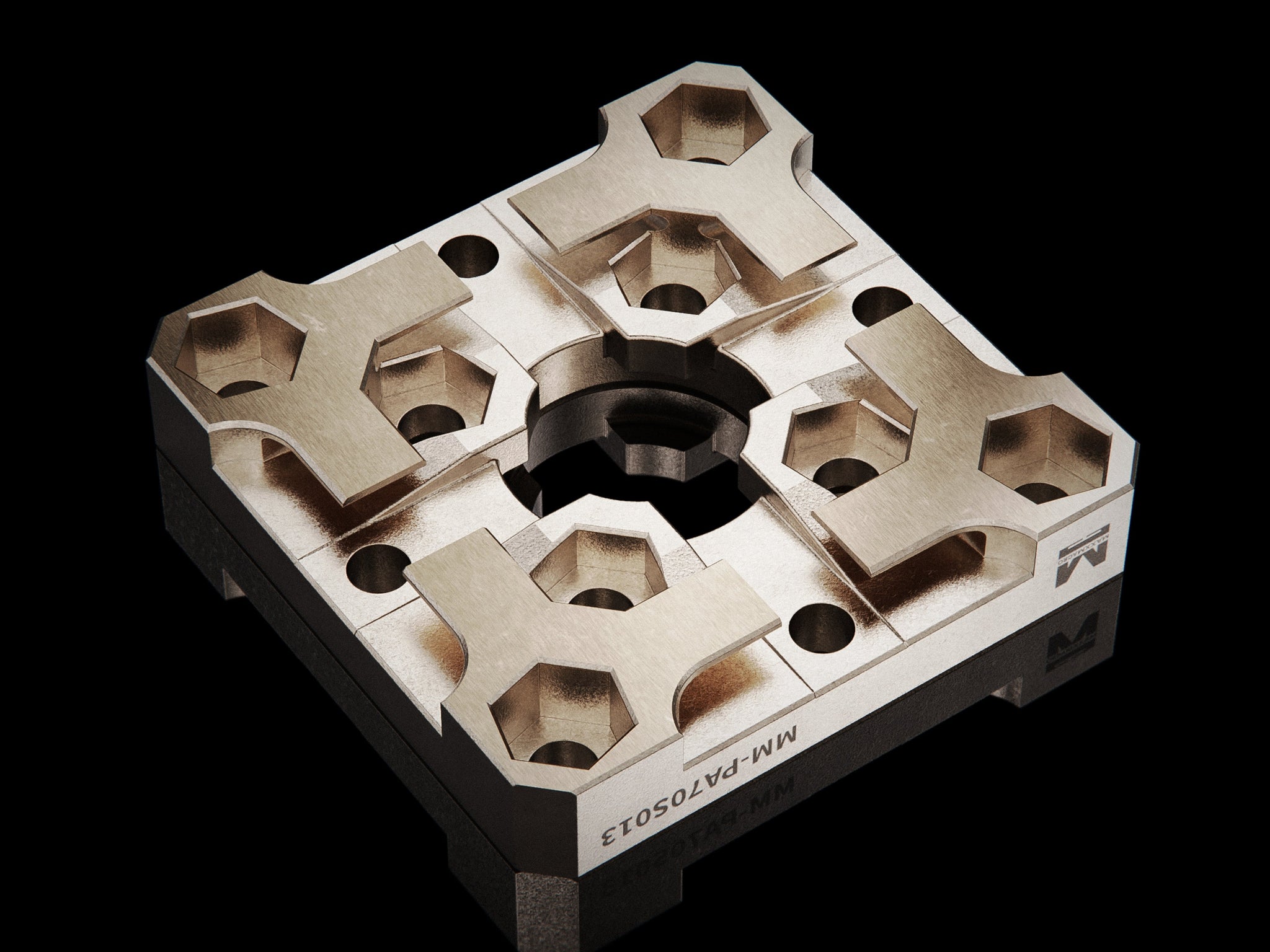

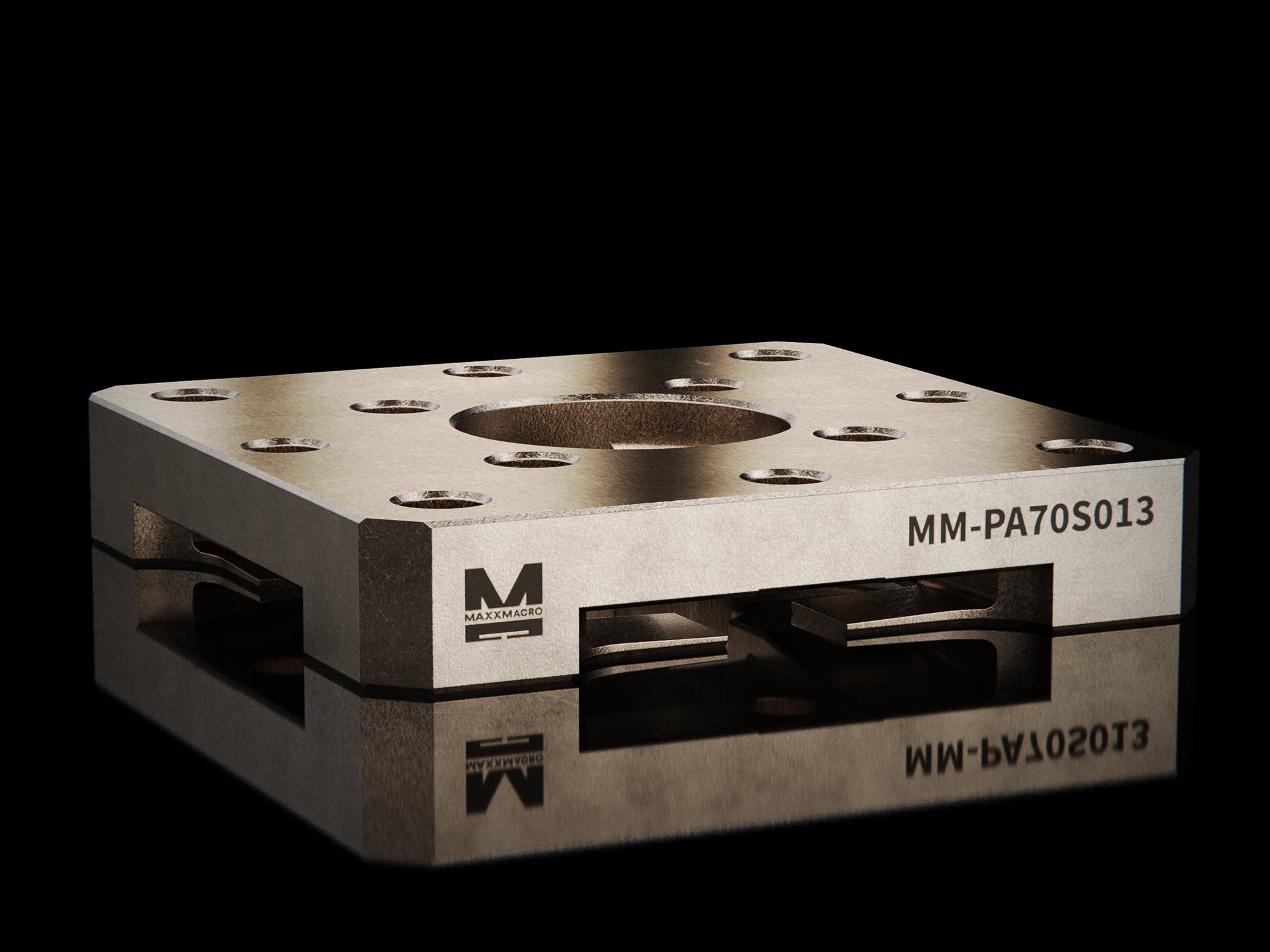

MaxxMacro 70 Stainless Cast Plated Pallet

$70.00

Maxx Tooling
MaxxMacro 70 Stainless Cast Plated Pallet comes fully assembled and ready to use. This product is 100% cross-compatible with the System 3R Macro OE...
SKU: MM-PA70S013Categories: All MaxxMacro® Products, MaxxMacro, MaxxMacro® Electrode Holders, MaxxMacro® MaxxMagnum® Performance WorkHolding, MaxxMacro® Pallets and Reference Elements, Sinker EDM Tooling Tags: 3R-601.7-N,3R-601.7-P,3R-601.7E-P,70,EDM,MaxxMacro,Milling,MX-70PAL,Pallet,Palletizing,Stainless,System 3R,System 3R Pallet,up to 100mm,
Description

MaxxMacro 70 Stainless Cast Plated Pallet comes fully assembled and ready to use. This product is 100% cross-compatible with the System 3R Macro OEM system. Hardened and precision-cast, with clearance holes for four fixing screws. Nickel-plated side faces

MaxxDesign Exclusive Features:

  • Casted and plated stainless pallet.
  • 100% cross-compatible with OEM system

Product Information:

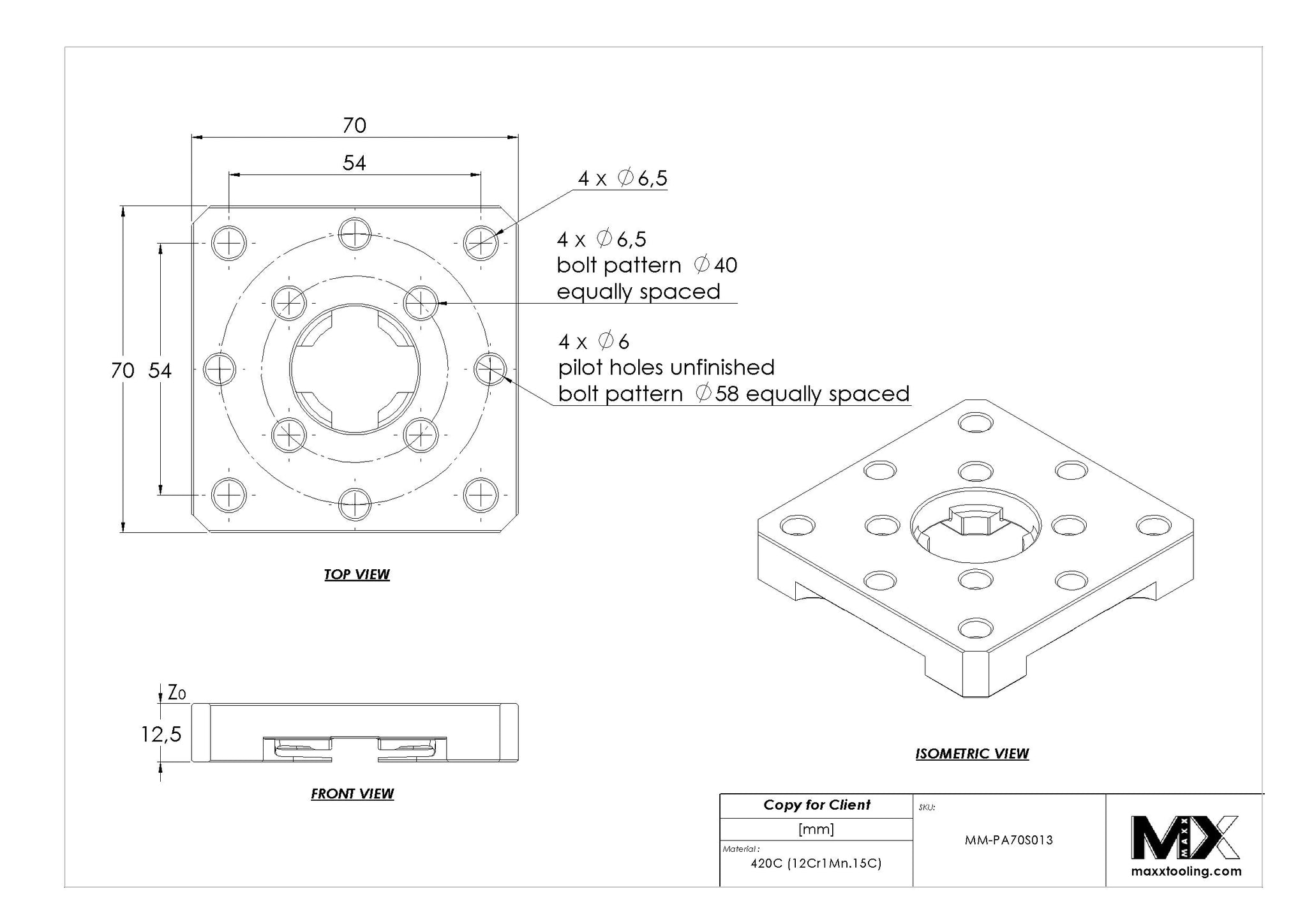

The MaxxMacro 70 Stainless Cast Plated Pallet can be mounted directly to the bottom of electrode holders or other fixtures to provide high-accuracy centering and full integration with the MaxxMacro system. It includes clearance holes for four fixing screws and four unfinished dowel holes.

Product Details

  Product Name MaxxMacro 70 Stainless Cast Plated Pallet
  SKU [Old SKU] MM-PA70S013 [MX-70PAL]
  System MaxxMacro  (System 3R 100% Cross-Compatible)
  Cross-Compatible 3R-601.7E-P [3R-601.7-N, 3R-601.7-P]
  System Repeatability 0.002mm
  Material Stainless 420c
  Weight 0.27 kg | 0.6 lb
