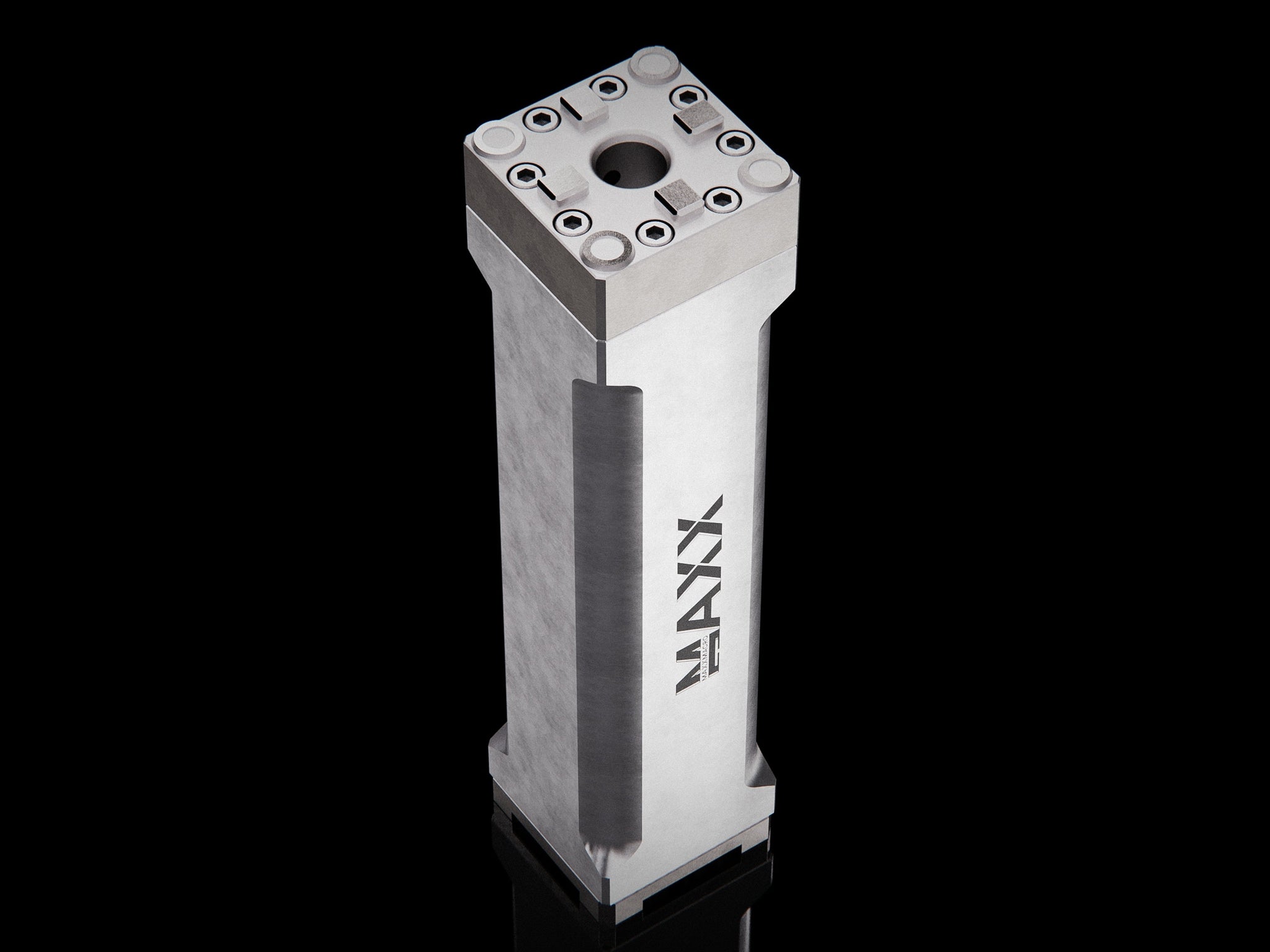

MaxxMacro (System 3R) 70 Aluminum Low Profile Manual Chuck Extension 12" 0

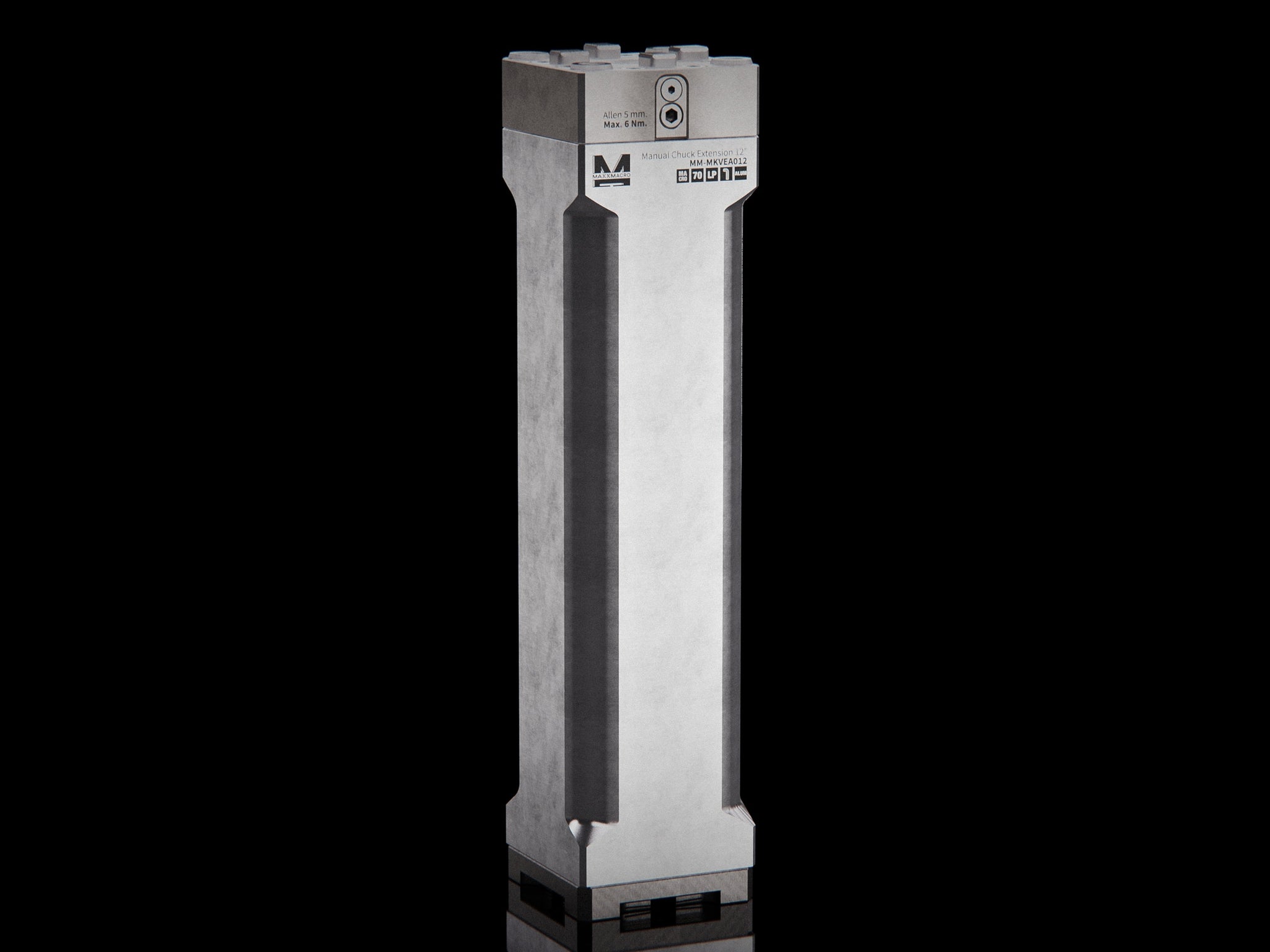

MaxxMacro (System 3R) 70 Low Profile Manual Chuck Extension 12" 1

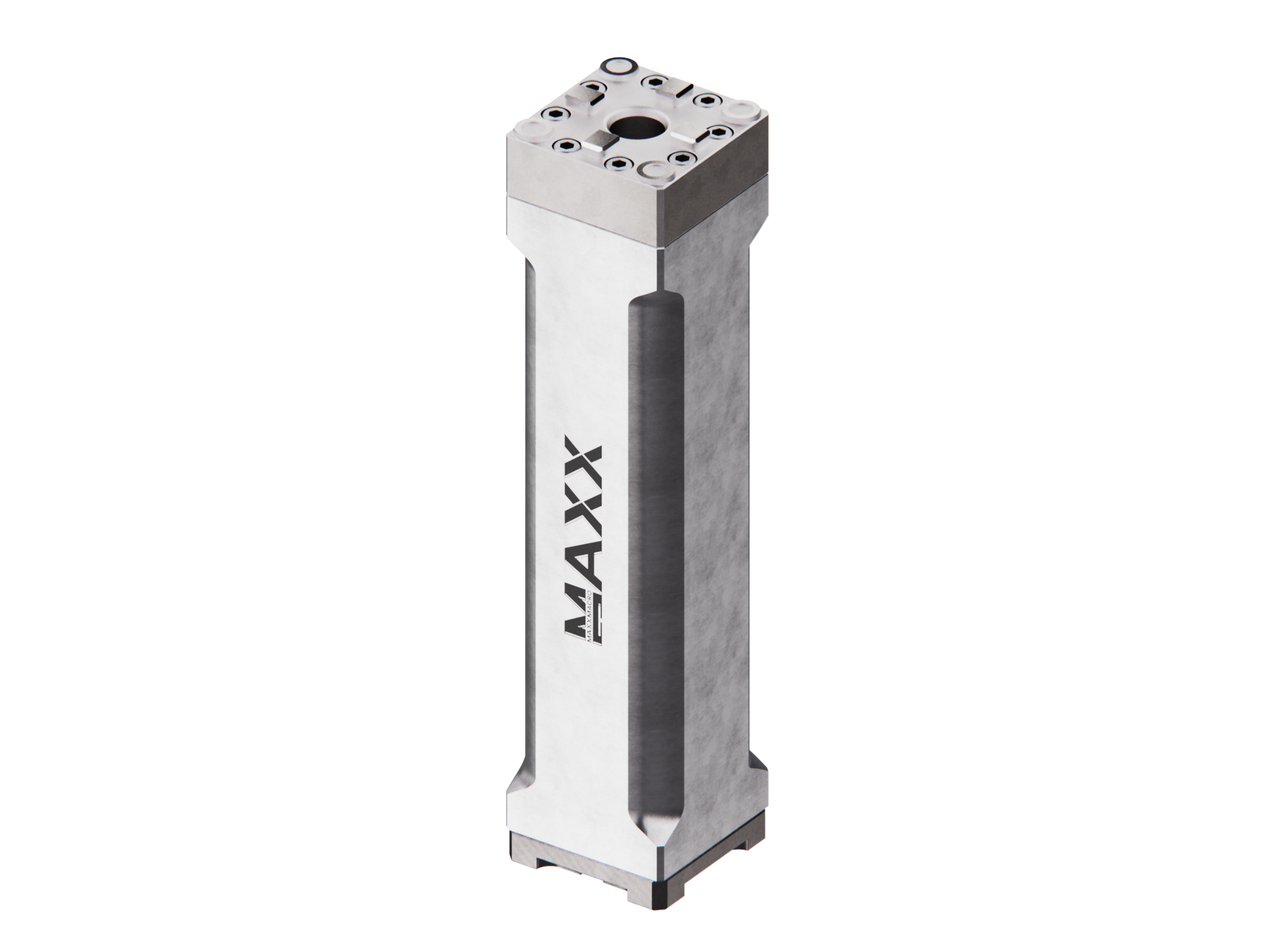

MaxxMacro (System 3R) 70 Low Profile Manual Chuck Extension 12" 2

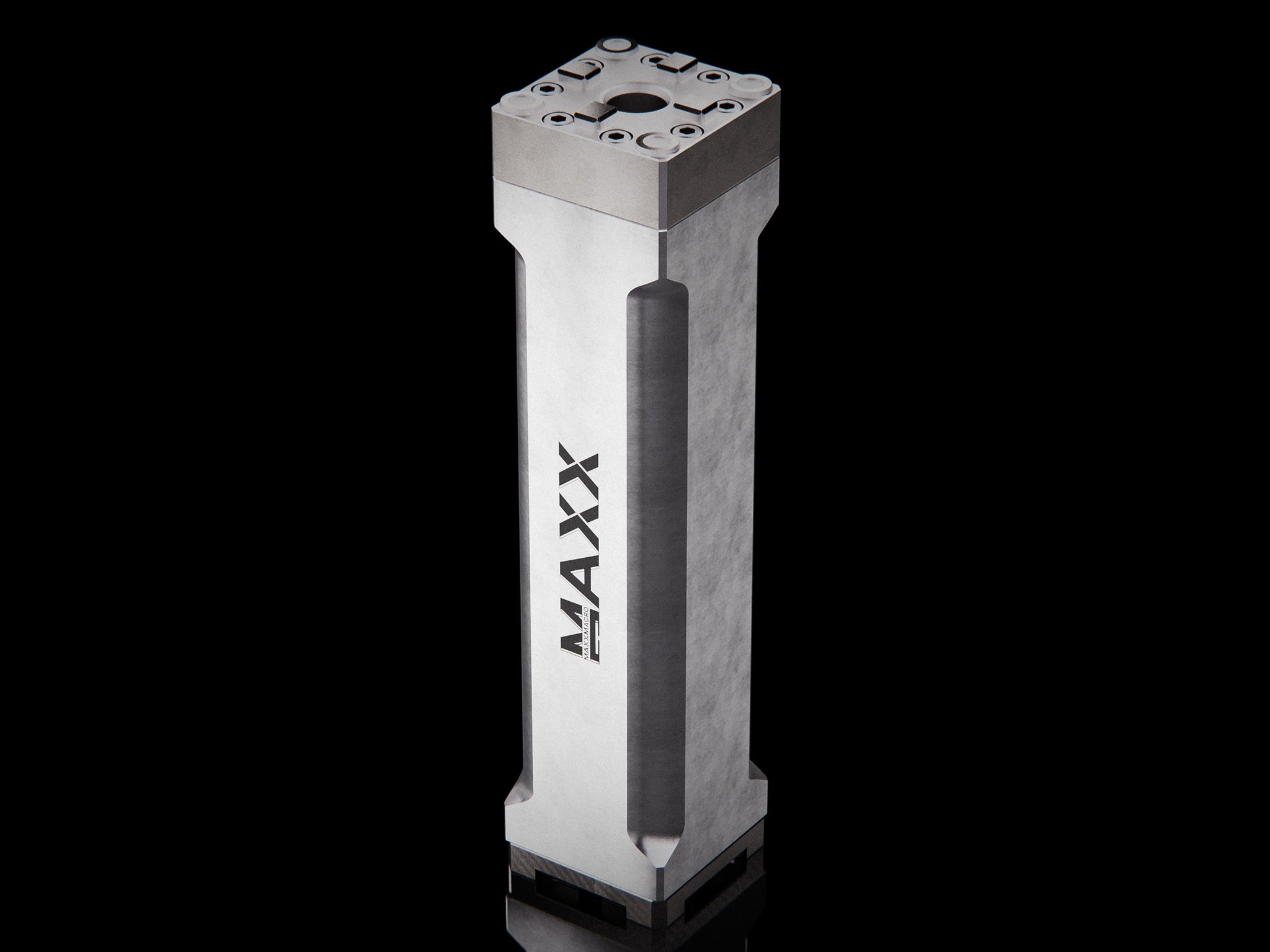

MaxxMacro (System 3R) 70 Low Profile Manual Chuck Extension 12" 3
MaxxMacro (System 3R) 70 Low Profile Manual Chuck Extension 12" 5

MaxxMacro 70 Low Profile Manual Chuck Extension 12"

$2,582.00

Maxx Tooling
MaxxMacro 70 Aluminum Low Profile Manual Chuck Extension 12" comes fully assembled and ready to use. This product is 100% cross-compatible with the...
SKU: MM-MKVEA012Categories: All MaxxMacro® Products, MaxxMacro, MaxxMacro® Electrode Holders, MaxxMacro® Extensions, Vertical and Horizontal, MaxxMacro® MaxxMagnum® Performance WorkHolding, Sinker EDM Tooling Tags: 3R-652.2,3R-90476.01,3R-90476.02,70,Allen,Aluminum,Chucking,EDM,Extension,Manual,MaxxMacro,Milling,MX-EXT70-12,Stainless,System 3R,System 3R Extension,
Description

MaxxMacro 70 Aluminum Low Profile Manual Chuck Extension 12" comes fully assembled and ready to use. This product is 100% cross-compatible with the System 3R Macro OEM system. Vertical extension with manual chuck.

MaxxDesign Exclusive Features:

  • Precision ground to ensure uniform height. This guarantees that when using multiple extensions, they all have the same height.
  • Height accuracy is 0.008 mm (0.0003"), and XY accuracy is 0.002 mm.

Product Specifics

  • Clamping Type: Manual (6 Nm)
  • Clamping Force: 8 kN
  • Drawbar/Spigot required: MM-DRWBR101
  • Chuck Included: MM-MK70R000
  • Reference Element Included: MM-PA70W006
  • Repair/Maintenance Kit: MM-RKMCW002, MM-MCRPX001

Product Details

  Product Name MaxxMacro 70 Aluminum Low Profile Manual Chuck Extension 12"
  SKU [Old SKU] MM-MKVEA012 [MX-EXT70-12]
  System MaxxMacro  (System 3R 100% Cross-Compatible)
  Cross-Compatible [3R-652.2, 3R-90476.01, 3R-90476.02]
  System Repeatability 0.002mm
  Material Aluminum
  Weight 4.63 kg | 10.21 lb
