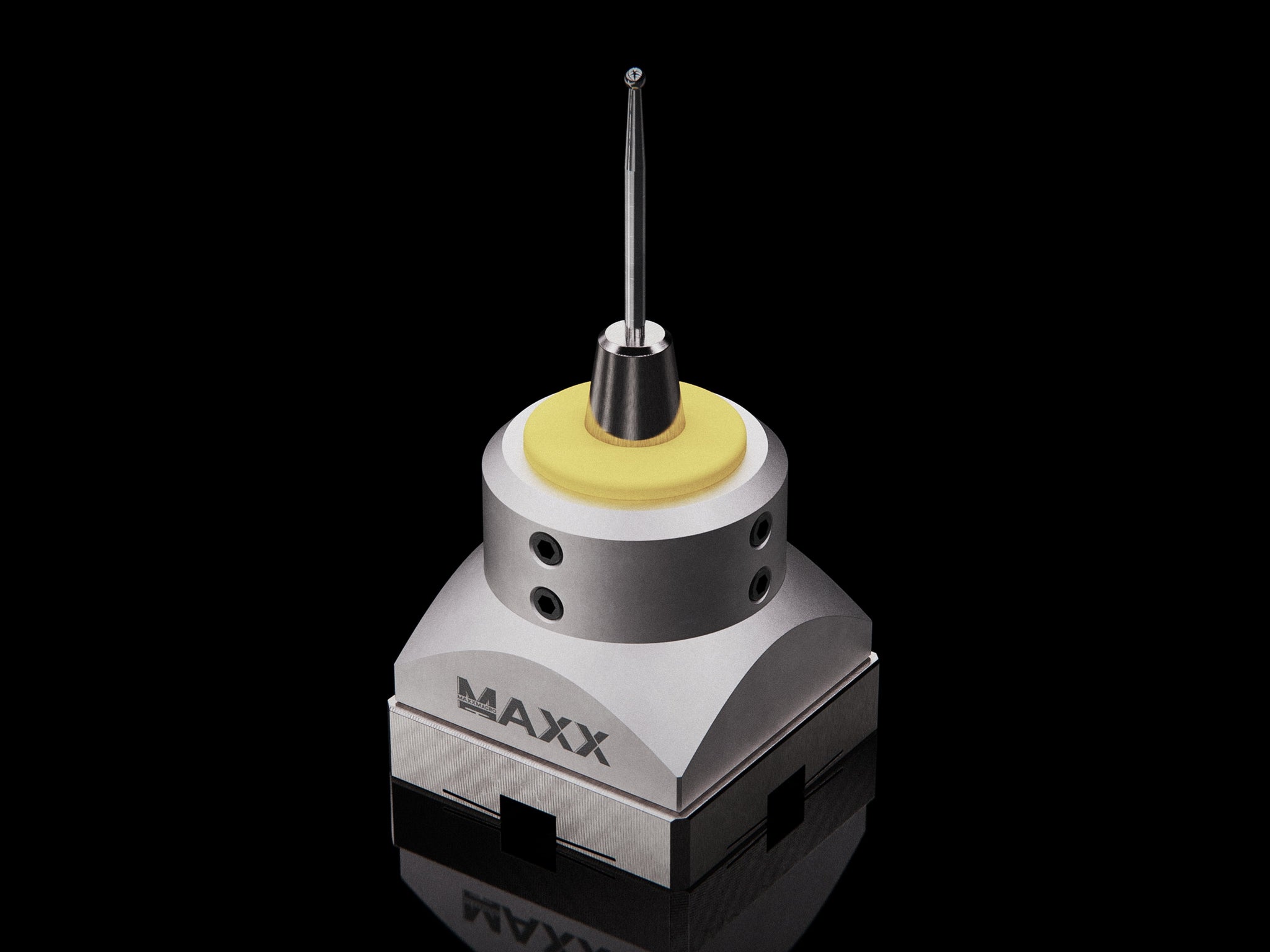

MaxxMacro 54 Probe Centering Sensor Stationary 3mm Tip
$878.00
MaxxMacro 54 Centering Sensor Stationary Probe 3mm Tip comes fully assembled and ready to use. This product is 100% cross-compatible with the System 3R Macro OEM system. Measuring probe with measuring head for machines with measurement cycle function.
MaxxDesign Exclusive Features:
- Includes rust-proof MaxxMacro 54 Performance Pallet.
- Twin set screws per side allow for quick and precise tip alignment.
Product Information:
The MaxxMacro 54 Centering Sensor Stationary Probe features a fixed probe with a measuring head, it is ideal for machines equipped with measurement cycle functions. Twin set screws on each side allow for easy and precise alignment of the probe tip, ensuring accurate centering. The unit comes mounted on a MaxxMacro 54 Performance Rust-Proof Pallet, offering maximum stability, quality, and durability in demanding shop environments.
Product Specifics
- Reference Element Included: MM-PA54W006
- Included Items: MX-PRTPS003
Product Details
| Product Name | MaxxMacro 54 Centering Sensor Stationary Probe 3mm Tip |
| SKU [Old SKU] | MM-PR54S003 [MX-PRC00-3] |
| System | MaxxMacro (System 3R 100% Cross-Compatible) |
| Cross-Compatible | 3R-656.21-SP03 [3R-656.31-3P, 3R-656.31-5P] |
| System Repeatability | 0.002mm |
| Weight | 0.78 kg | 1.72 lb |
