MaxxMacro 54 Manual QuickChuck Variable Angle

MaxxMacro 54 Manual QuickChuck Variable Angle

$1,695.00

Maxx Tooling
MaxxMacro 54 Manual QuickChuck Variable Angle Adapter comes fully assembled and ready to use. This product is 100% cross-compatible with the System...
SKU: MM-QCVAW001Categories: All MaxxMacro® Products, MaxxMacro, MaxxMacro® Adapters, Angled and 90 Degree, MaxxMacro® Electrode Holders, MaxxMacro® MaxxMagnum® Performance WorkHolding, MaxxMacro® WEDM Wire EDM Tooling, Sinker EDM Tooling, Wire EDM Tooling Tags: 54,Adapter,Angle Adapter,Chucking,EDM,Manual,MaxxMacro,Milling,MX-3RANER5,QuickChuck,Rust Proof,Stainless,System 3R,System 3R Angle Adapter,WEDM,
Description

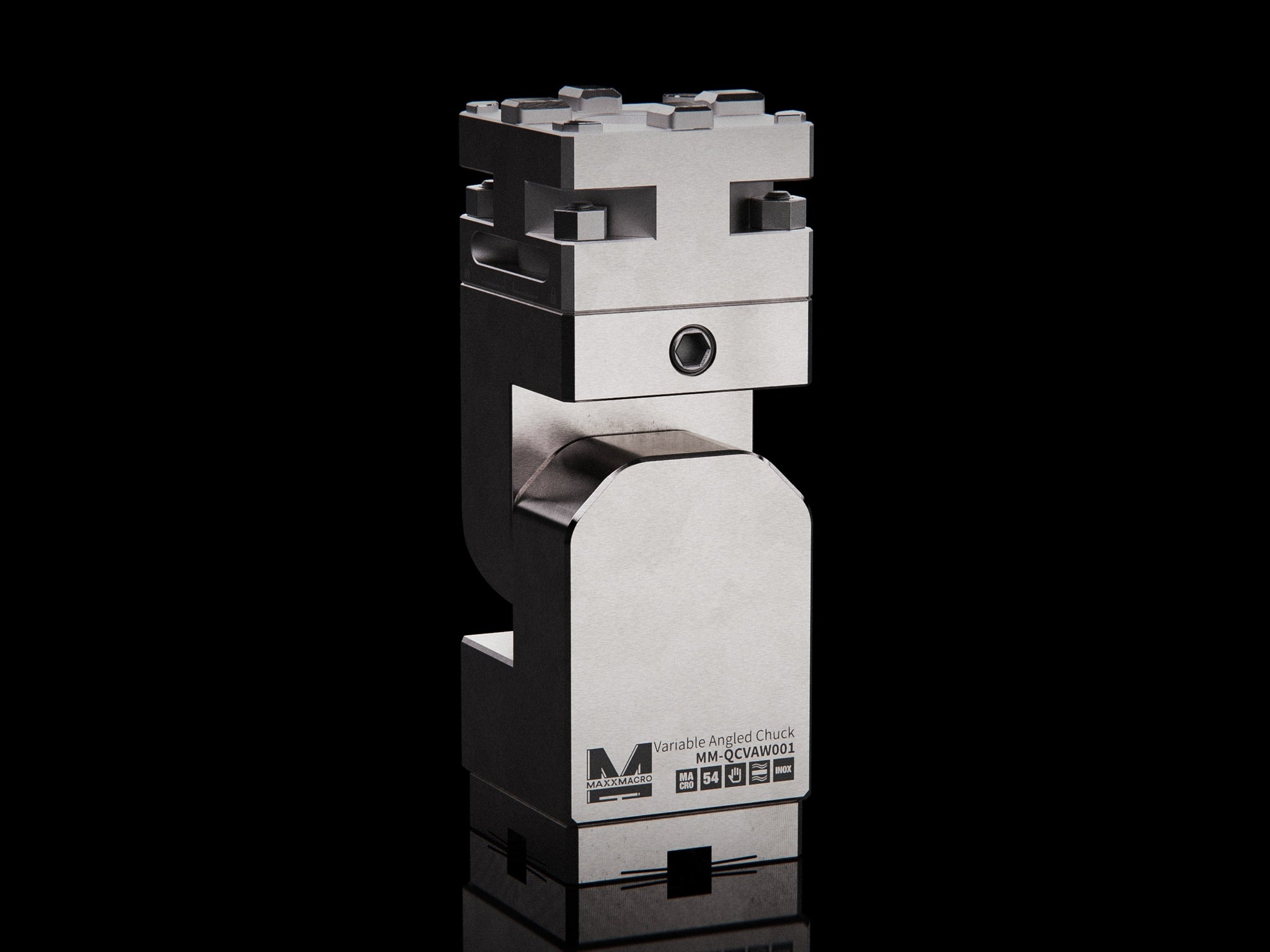

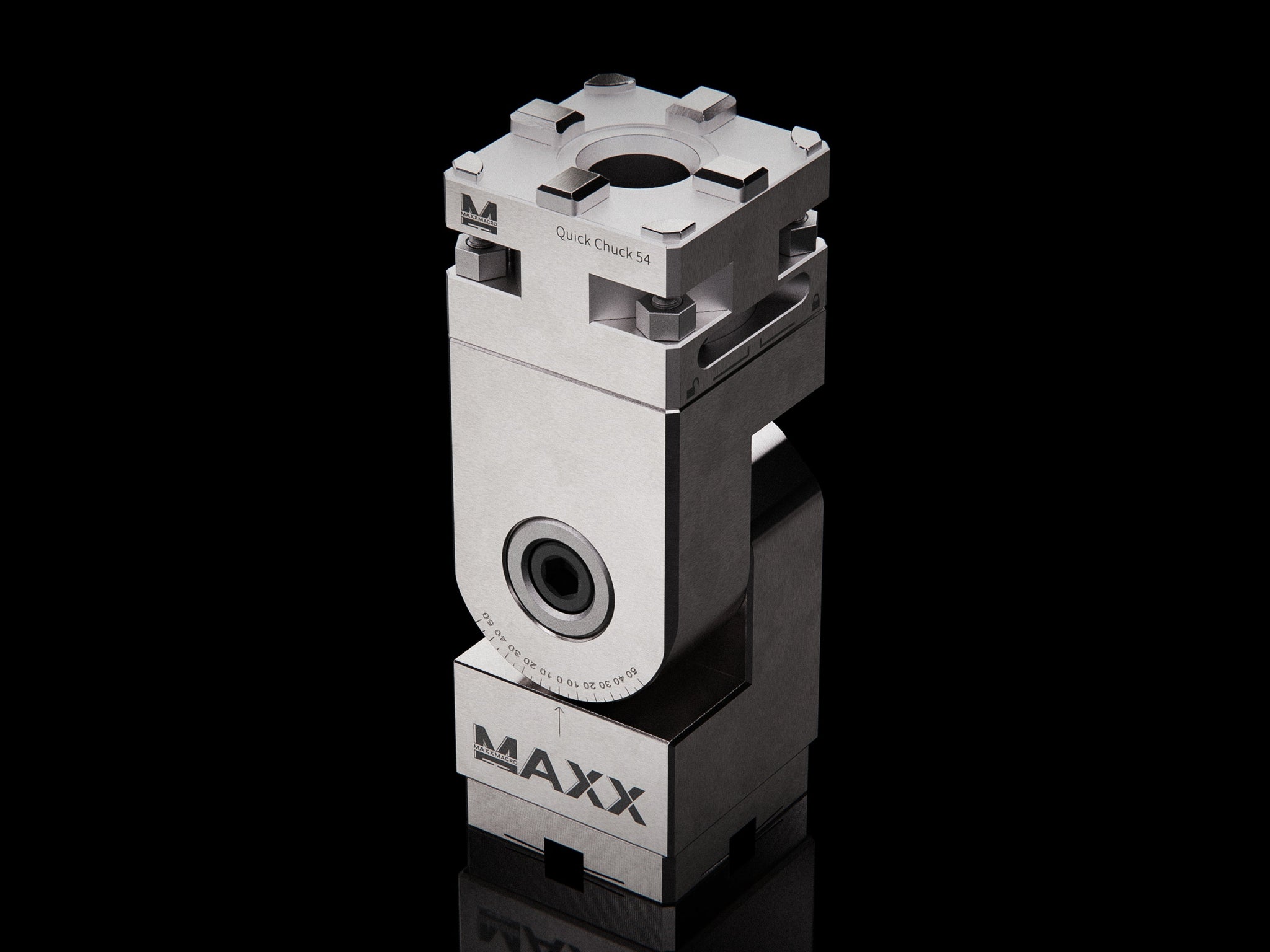

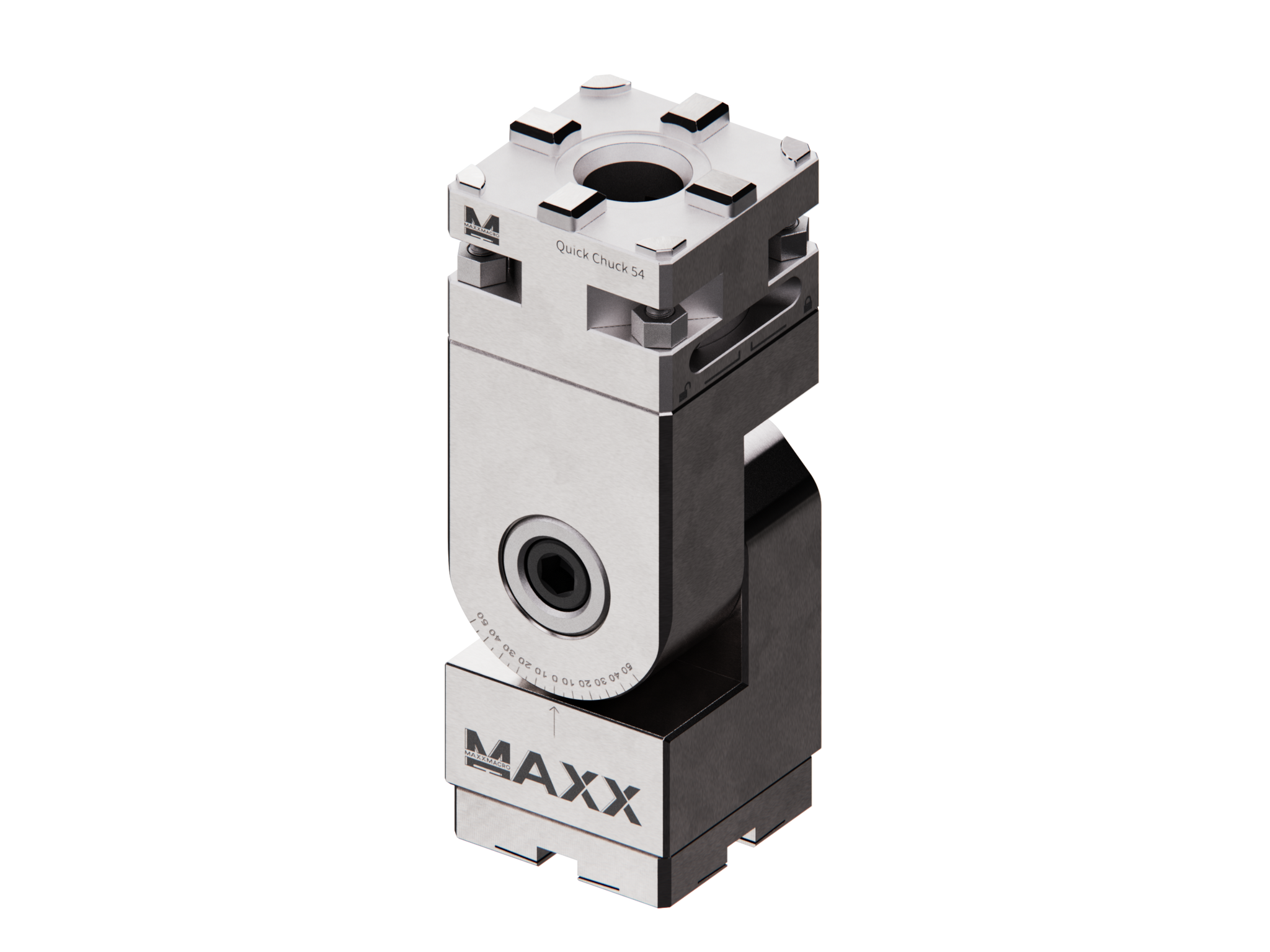

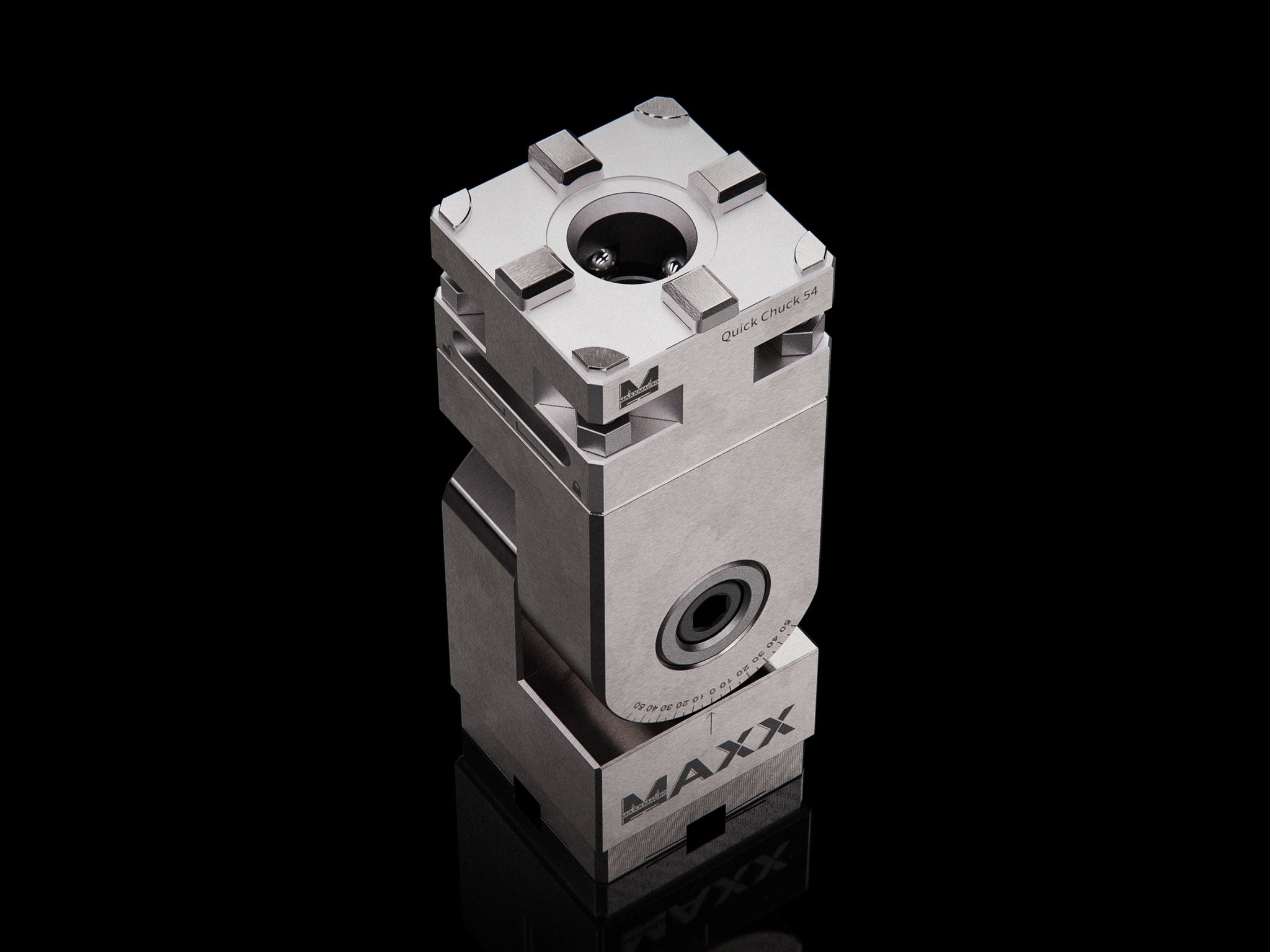

MaxxMacro 54 Manual QuickChuck Variable Angle Adapter comes fully assembled and ready to use. This product is 100% cross-compatible with the System 3R Macro OEM system. QuickChuck with adjustable angles, settable continuously from 0 to 90°. Ideal for EDM and WEDM applications.

MaxxDesign Exclusive Features:

  • Full stainless mechanisms for rust prevention in full WEDM Submersion
  • Angles can be set continuously from 0 to 90°

Product Information:

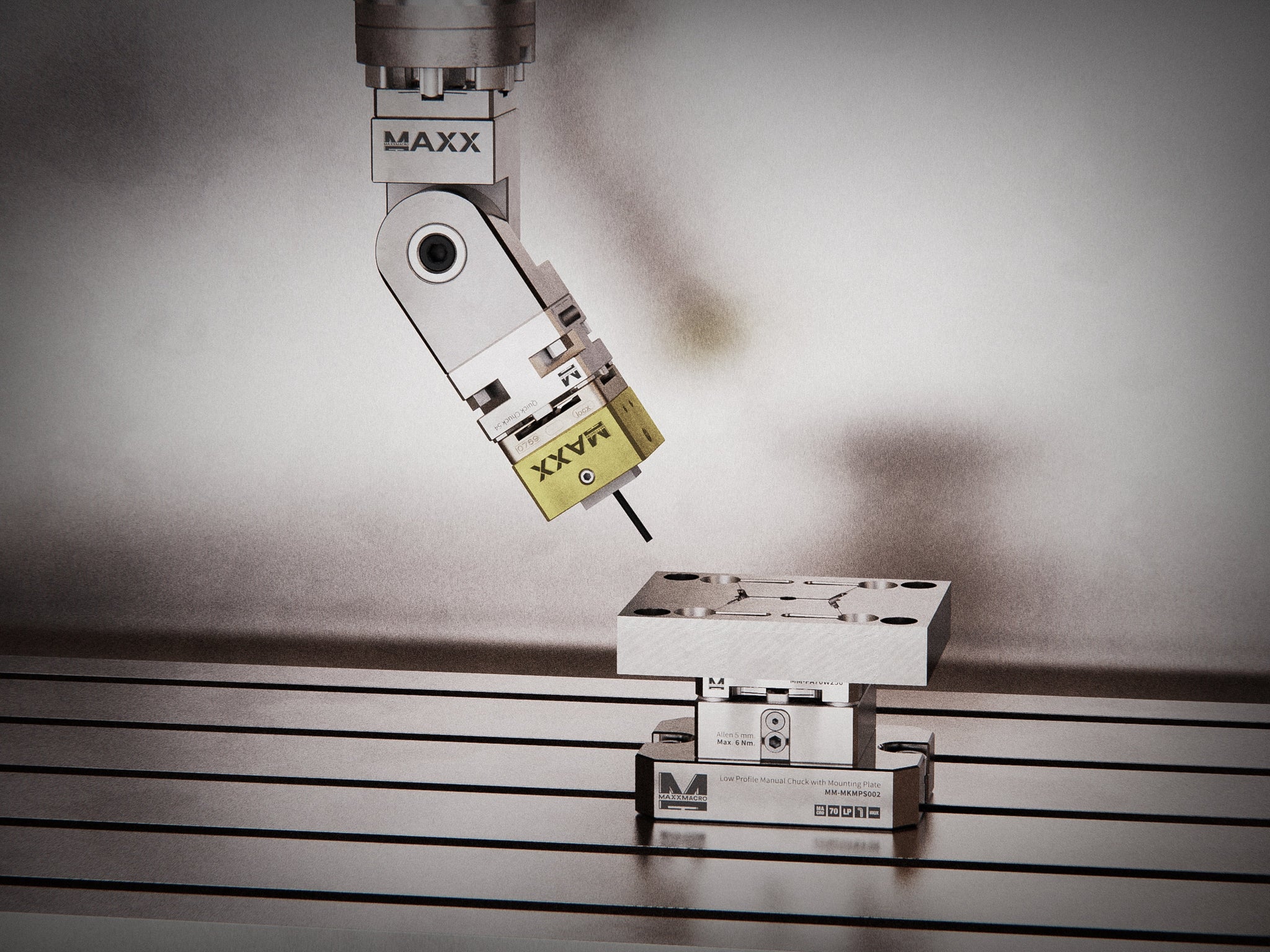

MaxxMacro 54 Manual QuickChuck Variable Angle Adapteron which angles can be set continuously from 0 to 90°. Application in EDM and WEDM. To set the angle with precision, you can use an angle gauge or a sine plate for accurate measurements. These tools will help you achieve the desired angle effectively.

Product Specifics

  • Clamping Type: QuickChuck
  • Clamping Force: 4 kN
  • Angle: 0-90
  • Drawbar/Spigot required: MM-DRWBR101
  • Chuck Included: MM-QC54R000
  • Reference Element Included: MM-PA54W006
  • Included Items: MX-ACMTX001
  • Repair/Maintenance Kit: MM-RKQCX001

Product Details

  Product Name MaxxMacro 54 Manual QuickChuck Variable Angle Adapter
  SKU [Old SKU] MM-QCVAW001 [MX-3RANER5]
  System MaxxMacro  (System 3R 100% Cross-Compatible)
  System Repeatability 0.002mm
  Weight 2.97 kg | 6.55 lb
