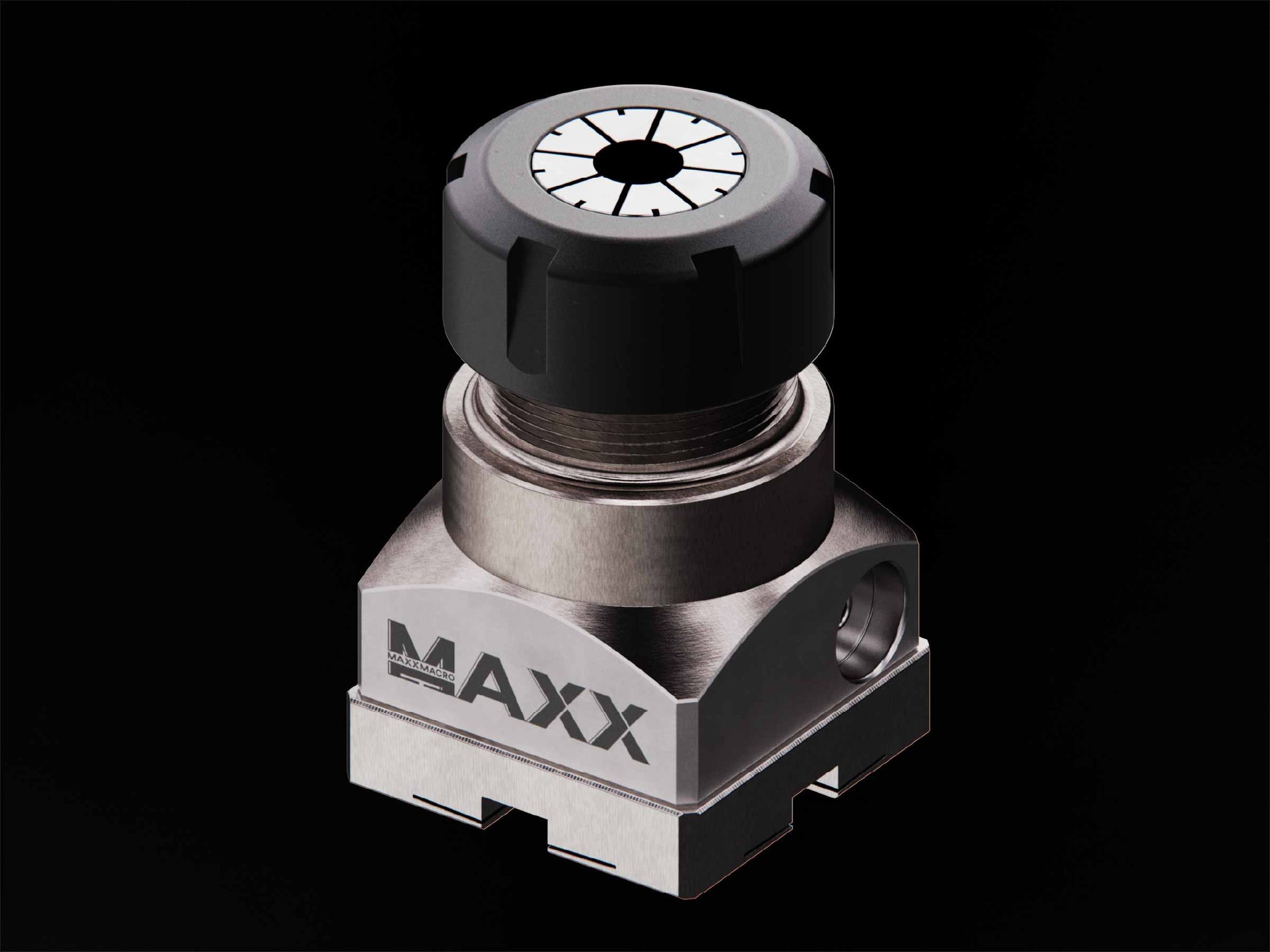

MaxxMacro 54 ER Collet Chuck ER32

$1,026.00

Maxx Tooling
MaxxMacro 54 ER Collet Chuck ER32 comes fully assembled and ready to use. This product is 100% cross-compatible with the System 3R Macro OEM system...
SKU: MM-CC54S032Categories: All MaxxMacro® Products, MaxxMacro, MaxxMacro® Electrode Holders, MaxxMacro® MaxxMagnum® Performance WorkHolding, MaxxMacro® Precision ER Collet Chucks, Sinker EDM Tooling Tags: 3R-659.16P,3R-659.20P,3R-659.32P,3R-659.40P,54,Clamping,Collet Chuck,EDM,ER32,MaxxMacro,Milling,MX-ER323R,Round,Stainless,System 3R,System 3R Collet Chuck,up to 100mm,
Description

MaxxMacro 54 ER Collet Chuck ER32 comes fully assembled and ready to use. This product is 100% cross-compatible with the System 3R Macro OEM system. To clamp cylindrical parts with ER Collet System.

MaxxDesign Exclusive Features:

  • Includes our MaxxMacro 54 440C performance pallet
  • Compatible with standard ER collet sizes

Product Information:

The MaxxMacro 54 ER Collet Chuck ER32 is a high-performance collet chuck that is 100% cross-compatible with System 3R 3R-659.16P Macro systems. Designed for precision and durability, it offers ±0.015 mm concentricity and ±0.002 mm repeatability, making it ideal for both manual and automated setups. Each unit includes a MaxxMacro 54 440C stainless performance pallet, ensuring stability and rust resistance in demanding machining environments. For robotic integration, the chuck can be customized with gripper interfaces, stop buttons, and more. It also features flushing through for debris removal and extended tool life.

Product Specifics

  • Reference Element Included: MM-PA54W006
  • Included Items: MX-CCRPS032
  • Accessories: MX-CCRPS032, MX-CCRPR032

Product Details

  Product Name MaxxMacro 54 Stainless ER Collet Chuck ER32
  SKU [Old SKU] MM-CC54S032 [MX-ER323R]
  System MaxxMacro  (System 3R 100% Cross-Compatible)
  Cross-Compatible 3R-659.32-P
  System Repeatability 0.002mm
  Material Stainless 420C |  Nut: Stainless 420C
  Weight 1.07 kg | 2.36 lb
